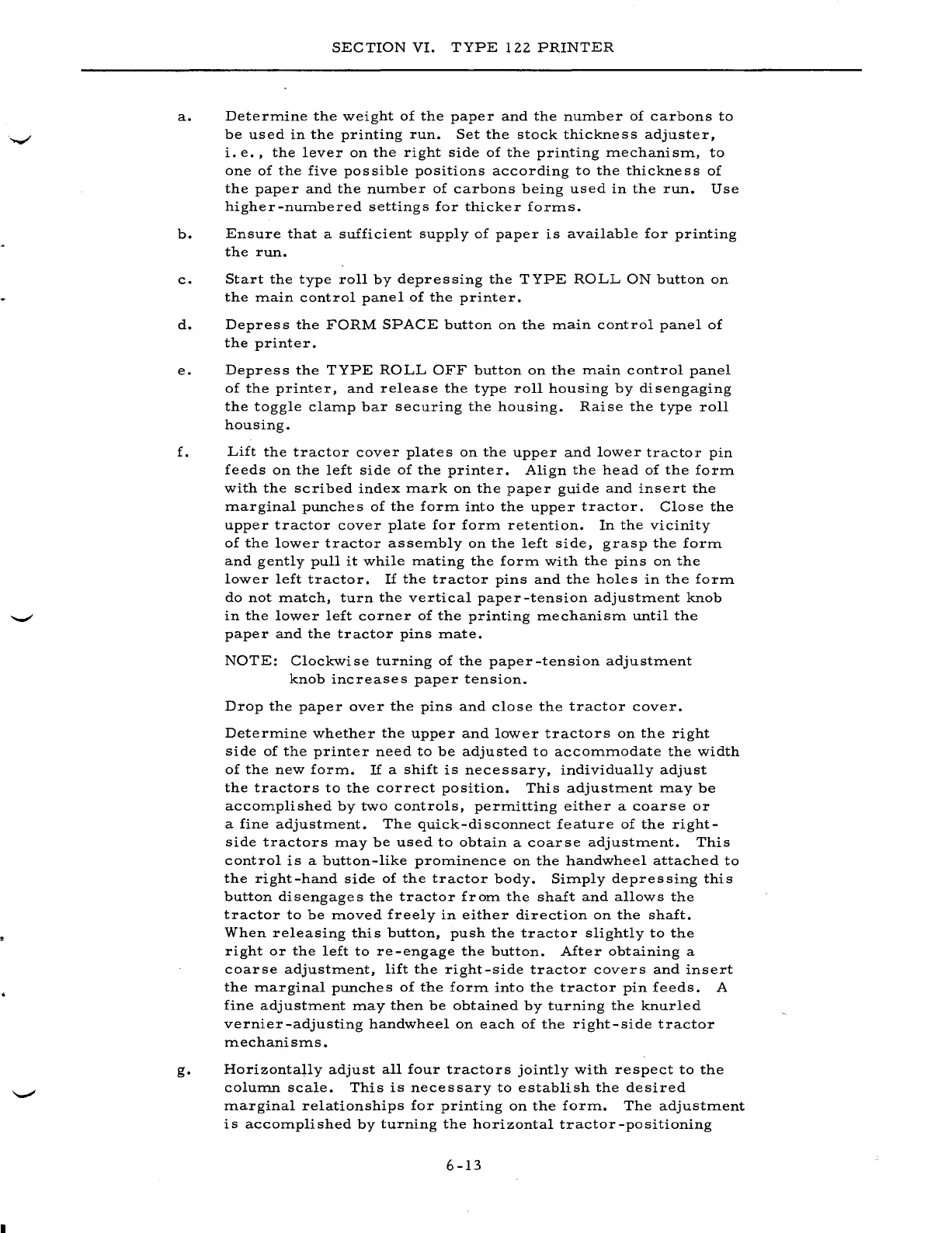

SECTION
VI.
TYPE
122
PRINTER
a.
Determine
the
weight
of
the
paper
and
the
number
of
carbons
to
be
used
in
the
printing
run.
Set
the
stock
thickness
adjuster,
i.
e.,
the
lever
on
the
right
side
of
the
printing
mechanism,
to
one
of
the
five
possible
positions
according
to
the
thickness
of
the
paper
and
the
number
of
carbons
being
used
in
the
run.
Use
higher-numbered
settings
for
thicker
forms.
b.
Ensure
that
a
sufficient
supply
of
paper
is
available
for
printing
the
run.
c.
Start
the
type
roll
by
depressing
the
TYPE
ROLL
ON
button
on
the
main
control
panel
of
the
printer.
d.
Depress
the
FORM
SPACE
button
on
the
main
control
panel
of
the
printer.
e.
Depress
the
TYPE
ROLL
OFF
button
on
the
main
control
panel
of
the
printer,
and
release
the
type
roll
housing
by
disengaging
the
toggle
clamp
bar
securing
the
housing.
Raise
the
type
roll
housing.
£.
Lift
the
tractor
cover
plates
on
the
upper
and
lower
tractor
pin
feeds
on
the
left
side
of
the
printer.
Align
the
head
of
the
form
with
the
scribed
index
mark
on
the
paper
guide
and
insert
the
marginal
punches
of
the
form
into
the
upper
tractor.
Close
the
upper
tractor
cover
plate
for
form
retention.
In
the
vicinity
of
the
lower
tractor
assembly
on
the
left
side,
grasp
the
form
and
gently
pull
it
while
mating
the
form
with
the
pins
on
the
lower
left
tractor.
If
the
tractor
pins
and
the
holes
in
the
form
do
not
match,
turn
the
vertical
paper-tension
adjustment
knob
in
the
lower
left
corner
of
the
printing
mechanism
until
the
paper
and
the
tractor
pins
mate.
NOTE:
Clockwise
turning
of
the
paper-tension
adjustment
knob
increases
paper
tension.
Drop
the
paper
over
the
pins
and
close
the
tractor
cover.
Determine
whether
the
upper
and
lower
tractors
on
the
right
side
of
the
printer
need
to
be
adjusted
to
accommodate
the
width
of
the
new
form.
If
a
shift
is
necessary,
individually
adjust
the
tractors
to
the
correct
position.
This
adjustment
may
be
accomplished
by
two
controls,
permitting
either
a
coarse
or
a
fine
adjustment.
The
quick-disconnect
feature
of
the
right-
side
tractors
may
be
used
to
obtain
a
coarse
adjustment.
This
control
is
a
button-like
prominence
on
the
handwheel
attached
to
the
right-hand
side
of
the
tractor
body.
Simply
depressing
this
button
disengages
the
tractor
from
the
shaft
and
allows
the
tractor
to
be
moved
freely
in
either
direction
on
the
shaft.
When
releasing
this
button,
push
the
tractor
slightly
to
the
right
or
the
left
to
re-engage
the
button.
After
obtaining
a
coarse
adjustment,
lift
the
right-side
tractor
covers
and
insert
the
marginal
punches
of
the
form
into
the
tractor
pin
feeds.
A
fine
adjustment
may
then
be
obtained
by
turning
the
knurled
vernier-adjusting
handwheel
on
each
of
the
right-side
tractor
mechani
sms.
g.
Horizonta~ly
adjust
all
four
tractors
jointly
with
respect
to
the
column
scale.
This
is
necessary
to
establish
the
desired
marginal
relationships
for
printing
on
the
form.
The
adjustment
is
accomplished
by
turning
the
horizontal
tractor-positioning
6-13
