5.6.4 Trigger prevention setting
7PQRS
3
tigger prevention
1 operation access level 2 : none
2 installer access level 3 : none
3 access level 4 : none
4 cover contact open : none
5 revision activ : none
6 fire control functions off : none
3
4GHI
3
1 function type : common
2 hardware
3 inverted : off
4 trigger events : 2
5 pulse duration (s) : off
pulse latched : off
7 trigger prevention : 0
control zone >0003<
3
3
tigger prevention
1 operation access level 2 : no
2 installer access level 3 : no
3 access level 4 : no
4 cover contact open : yes
5 revision activ : no
6 fire control functions off : no
3

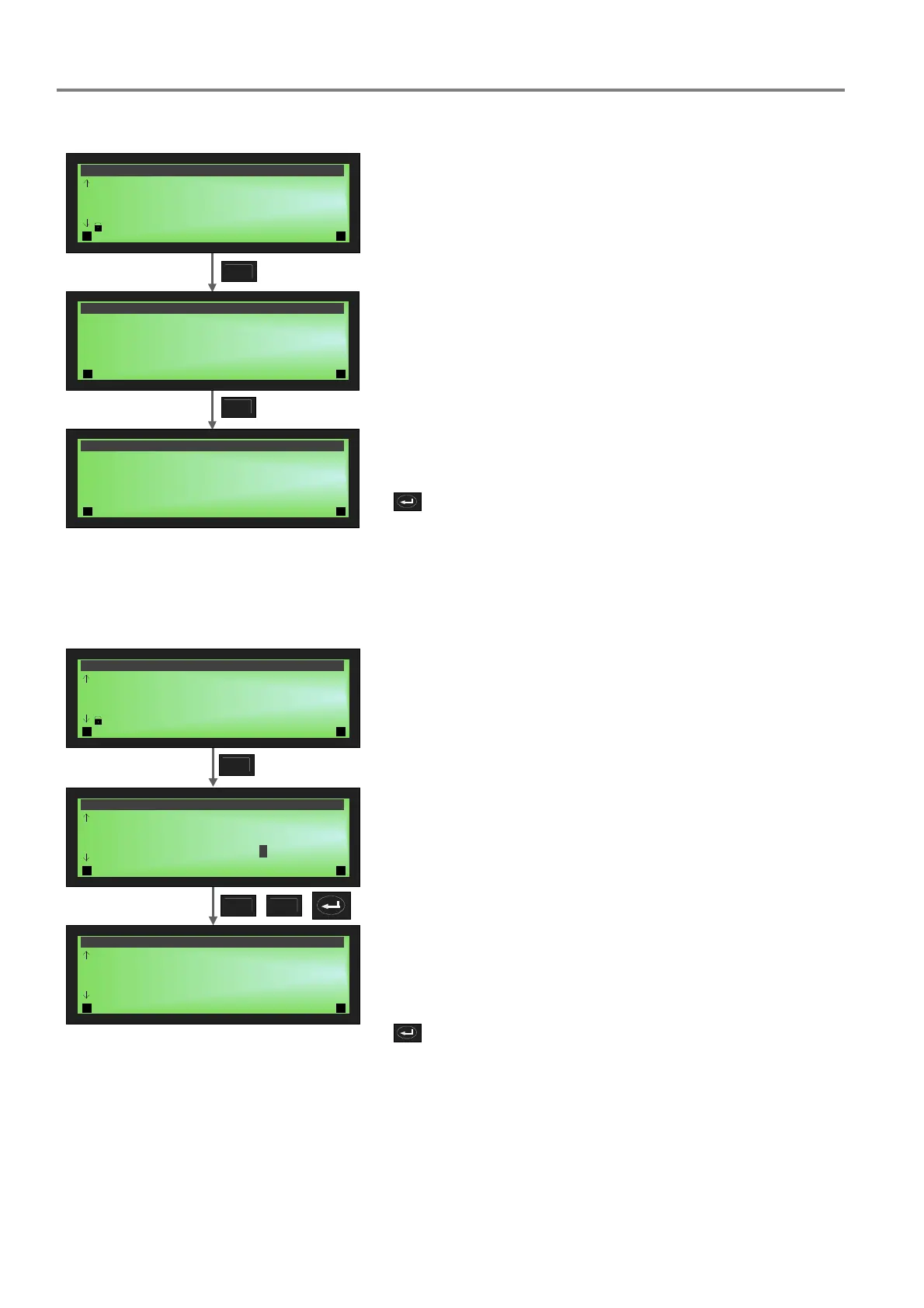

Fig. 42: >Trigger prevention< menu screens
Trigger prevention
Cover contact open (yes/no)
Control zone 3 will no longer be triggered when the cover of the
fire alarm control panel is open.
 save to RAM or continue with the programming.
5.6.5 Pulse duration setting
0
6
MNO
3DEF
3
1 function type : common
2 hardware
3 inverted : off
4 trigger events : 2
5 pulse duration (s) : off
pulse latched : off
7 trigger prevention : 0
control zone >0003<
3
3
control zone >0003<
3
1 function type : common
2 hardware
3 inverted : off
4 trigger events : 2
5 pulse duration (s) : 30
6 pulse latched : off
7 trigger prevention : 0
3
control zone >0003<
3
1 function type : common
2 hardware
3 inverted : off
4 trigger events : 2
5 pulse duration (s) : 30
6 pulse latched : off
7 trigger prevention : 0
Fig. 43: >Pulse duration setting< menu screens
Pulse duration
Enter value, e.g. 30
Control zone 3 will only be activated for 30 seconds after the
triggering event and only shown as activated in the display for
30 seconds.
The control zone can be activated again for 30 seconds on the
next event.
 save to RAM
