Control Panel Installation 5880 LED Driver Module
4.7 5880 LED Driver Module
The 5880 is an LED driver board that can be used in a wide variety of applications, including as an interface with most customized floor
plan annunciator boards. The 5880 can drive up to 40 LEDs and has one PZT controller. The 5880 also has eight inputs for dry contact
monitoring. Up to 8 5880s can be added to the GWF-7075 system. The following sub-sections describe hardware installation. Refer to
Section 6 for programming information.
4.7.1 5880 Board Layout

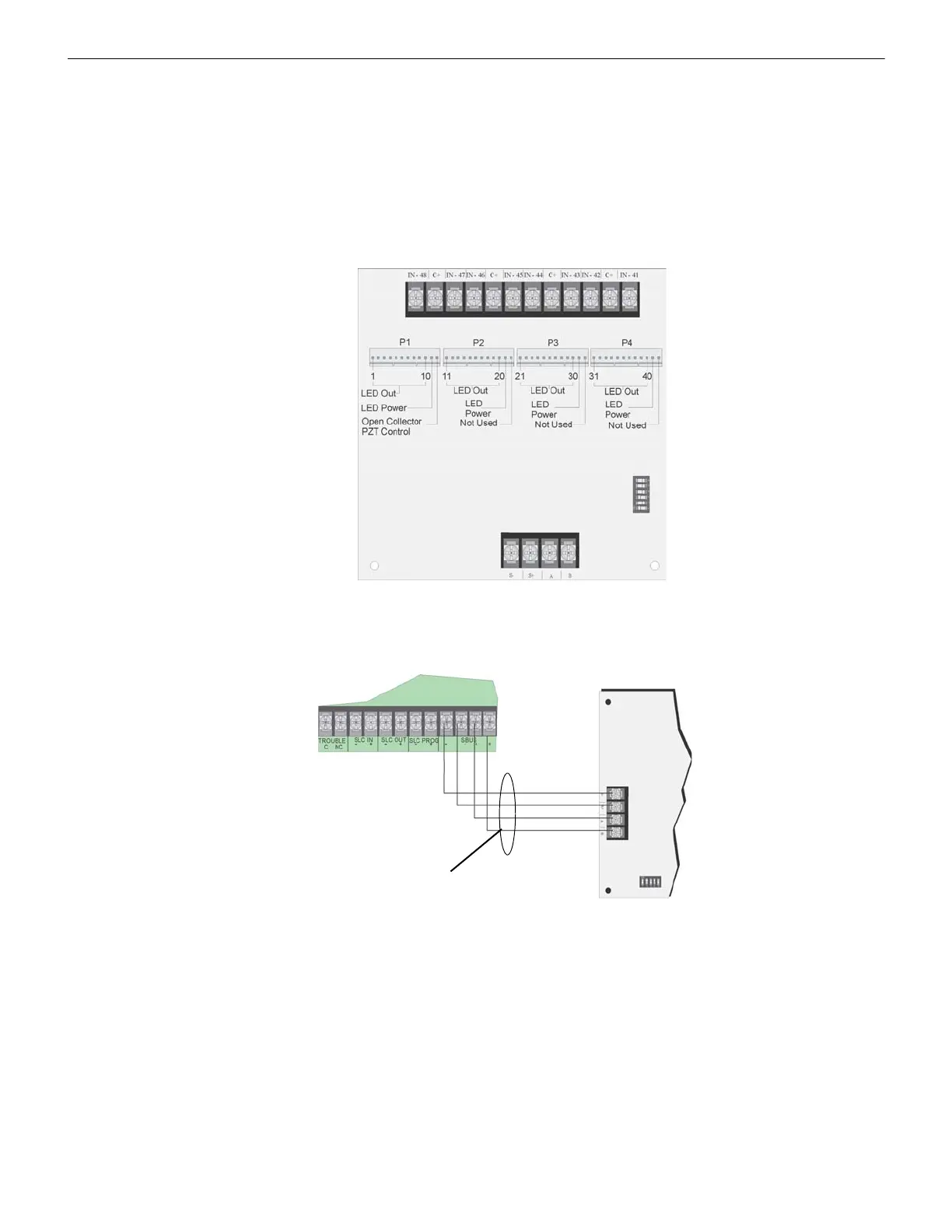

Figure 4.17 is a picture of the 5880 board showing locations of screw terminals for connection to the panel and contact monitor wiring;
pin connectors for connecting LEDs; and the DIP switch for selecting an SBUS ID number.
Figure 4.17 5880 Board Layout
4.7.2 FACP Connection
The 5880 connects to the panel via the SBUS. Make connections as shown in Figure 4.18. After the 5880 is connected to the panel, it
must be added to the system. This programming step is described in Section 7.
Figure 4.18 5880 Connection to Main Control Panel Assembly
SBUS Connection
Dry Contact Inputs - Supervised/Class A Power-
SBUS Address
DIPs
Supervised
Class A Power-Limited
To Next Page
