System Operation Operation Mode Behavior Conditions
8.6 Operation Mode Behavior Conditions
The control panel can be in one of the following seven conditions at any given moment:
Table 8.4 describes the behavior of the panel in each of these modes.
• Normal • Alarm • Pre-alarm • Supervisory • Trouble • Silenced • Reset
Operation
Mode
Operation Mode
Condition
System Behavior
Operation Mode Troubleshooting
Options
Normal
No alarm, Supervisories or
trouble condition exists and
menus are not in use.
SYSTEM POWER LED is on.
The All Systems Normal display indicates that
the system is in normal mode. The current date
and time display on the last line of the LCD.
Enter the appropriate code, or rotate the key to
activate the Main Menu.
Alarm
A smoke detector goes into
alarm or a pull station is
activated.
CO detector goes into alarm.
If more than 3 categories are
active at a single time screen will
display as shown.
The communicator seizes control of the phone
line and calls the central station.
The on-board annunciator sounds a loud,
steady beep (any notification devices attached
to the system will also sound).
GENERAL ALARM LED flashes.

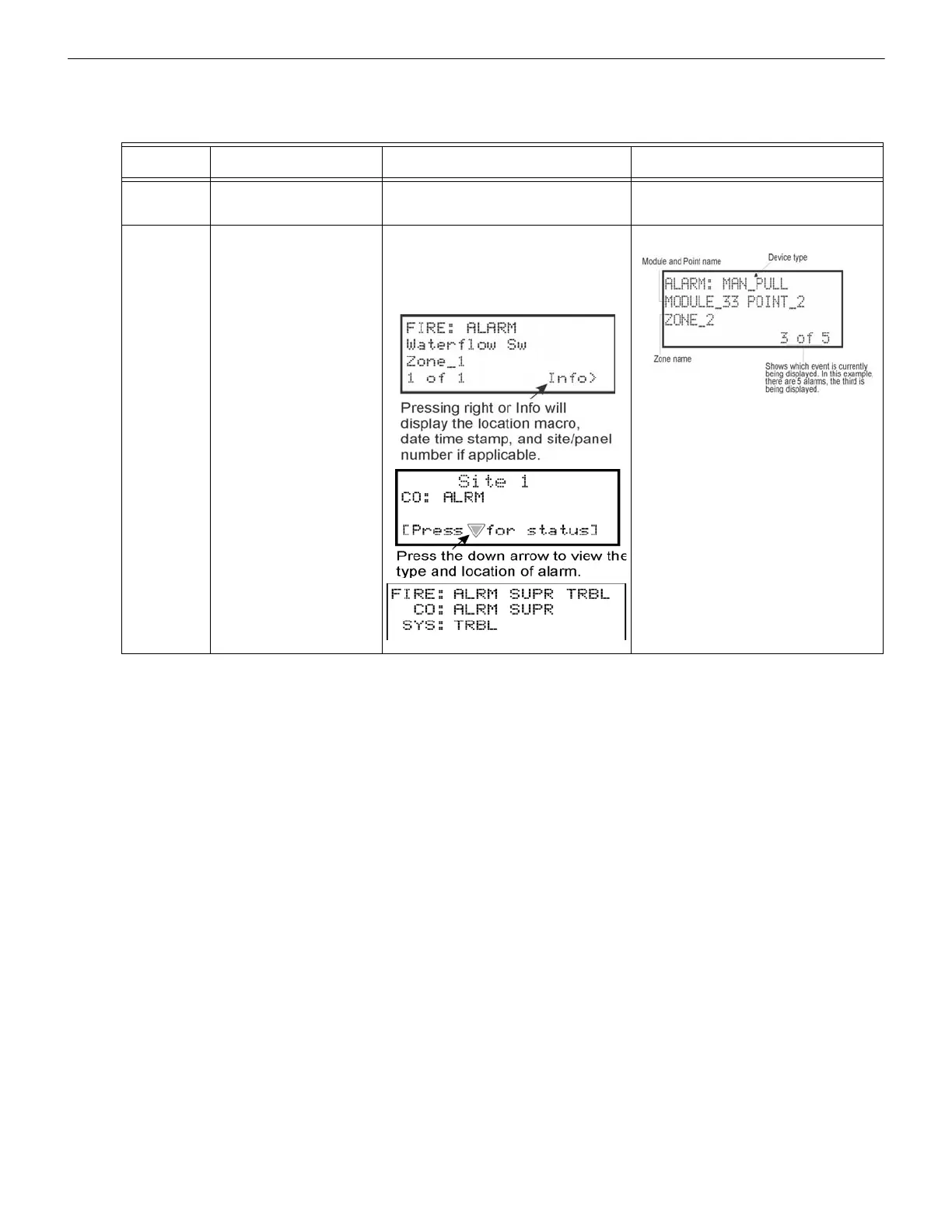

The LCD displays a screen similar to this one.
Press the down arrow to view the alarm. A
screen similar to this one displays.
Press SILENCE and enter an access code (or
activate the key) to silence the annunciator (and
any notification devices attached to the system).
When the alarm condition clears, press RESET
and enter a code (or activate the key) to restore
the panel to normal.
Table 8.4 : Operation Mode Behavior
