About these instructions
4
1. About these instructions
Fold out the left-hand cover. This shows all the operating
elements and connections. Leave the cover folded out while
reading further.
Technical terms are explained in the glossary (Page 12).
Legend for fold-out page
Fig. 1 Scope of delivery
Fig. 2 Opening housing
Fig. 3 Display and operating elements
Number Labelling Function
(1)
Power
Power supply on/off
(2)
Information display
(3)
Installation display
(4)
Mode
Operating mode button
(5)
Installation button
(6) Pump on/off display
(7) 1...8 Zone LEDs
(8) Labelling of Zones 1...8
Fig. 4 Connections
Number Function
(9) I/O connector
(10) Switch for setting normally open/normally closed
(11) Slot for expansion module HCS 80
(12) Connector for supply voltage, pump
(13) Fuse
(14) Slot for internal antenna
(Z1 - Z8) Connector for Zones 1...8
Fig. 5 I/O connector
Fig. 6 Connector for Zones 1...8
Fig. 7 Connector for supply voltage, pump
2. General safety instructions
DANGER
,
Danger to life through electric
shock!
Contacts that are open are live.
► Unplug the power plug before open-
ing the housing.
► Have all the work carried out by
authorised specialist personnel.
► Observe the valid VDE regulations
during the installation.
WARNING
Damage to the underfloor heating
controller!
Short-circuiting through humidity and
moisture.
► Mount the device at a site that is
protected against humidity and mois-
ture.

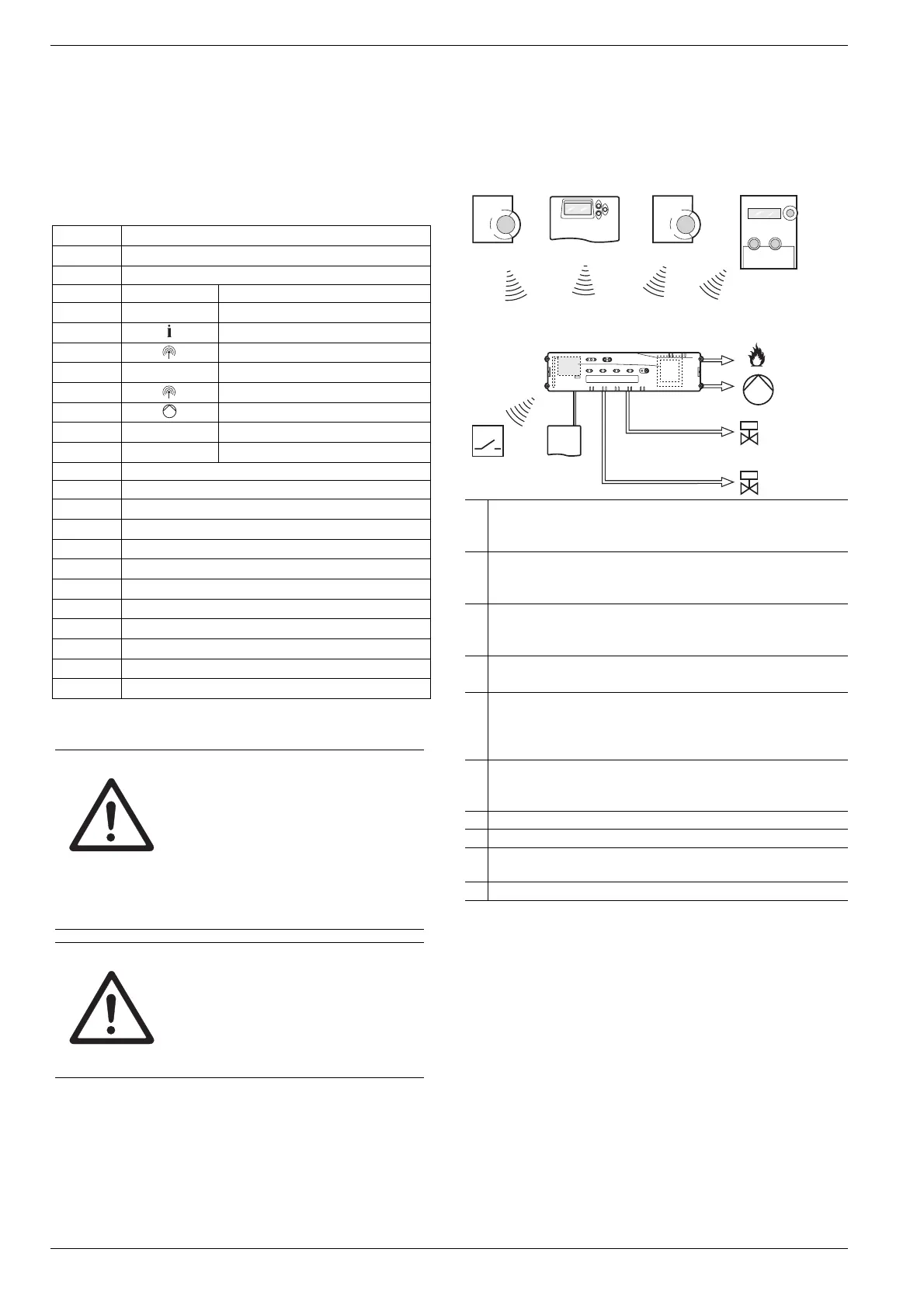

3. Overview
The floor hearing system is an intelligent system for individ-
ual room temperature control. The following overview shows
devices that can operate together with the underfloor heat-
ing controller.
(E)
(F)
(G)
(H)
(D)
(C)(A)
(B)
(I)
(I)
(J)
A Setpoint adjuster HCW 82
Controls the setpoint temperature for each temperature
zone via adjustment dial
B Central operating device CM67z
Controls the room temperature via programmable time
programs
C Room temperature sensor HCF 82
Transmits room temperature information to underfloor
heating controller
D Hometronic Manager HCM 200D
Central operating unit of the house-automation system
E Underfloor heating controller
HCE 80/HCC 80/HCE 80R/HCC 80R
Controls actuators; communicates with setpoint adjusters
and room temperature sensors
F Boiler feedback,
Analog output (only HCE 80/HCC 80) or
Relay output (only HCE 80R/HCC 80R)
G Integrated pump relay
H Thermal actuators
I External antenna HCE 80/HCE 80R
Internal antenna HCC 80/HCC 80R
J Boiler feedback relay HC60NG/R6660D
