8.2.1.3
End Communication between the PC and t
he MaxCom Gold
1.
To end communication between the P
C and the MaxCom Gold,
click on the
Close
Config
button. The message, Con
nection Closed, is displ
ayed.
If you click on Close Config
and the PC is not connected to the
MaxCom Gold, error
messages are displayed.

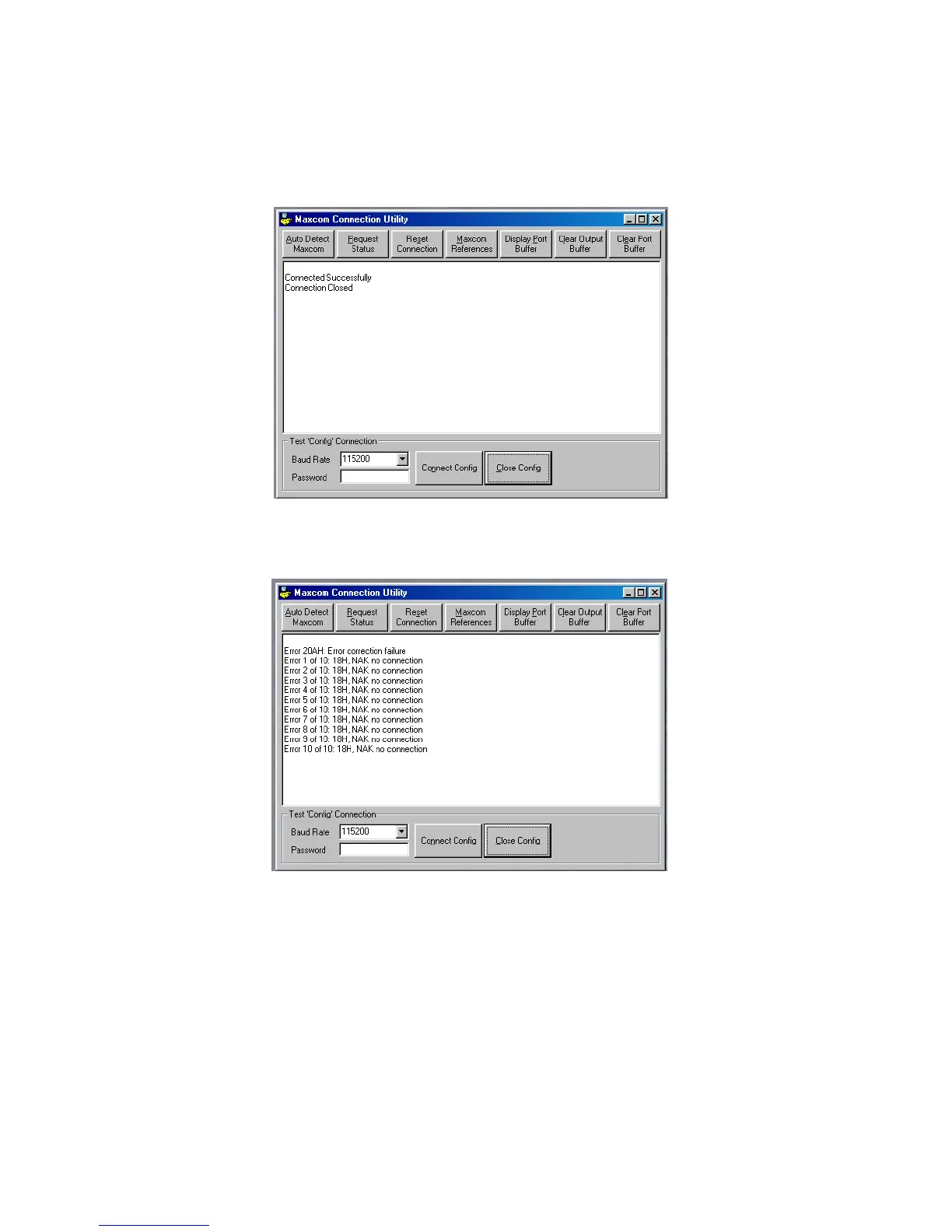

An example is shown in the window bel
ow.
Rev. 1
51
900.0560
18-July-2005
62
