8.3.3 Programming Auto-Sequences, Continued
To move between the fields, use the tab key to move forward one field, use the
shift+tab keys simultaneously to move backward one field. Use the up and down
arrow keys to move up or down one line. A field can also be selected by pointing to
the field and clicking the left mouse button.
4. Click on the Save button to save any changes to the configuration.
5. Click on the Send button to transmit the auto sequence to the MaxCom Gold. Note:
This step can also be done after all programming is complete using the Send
Receive Centre utility.
Select another monitor or close the menu by clicking on the X in the upper right corner.
8.3.4 User Privileges
There are sixteen users defined. Each user has a 5-digit pass code and a security level.
The security levels and user access to the system can be changed using the PC
configuration utility.
1. There are two ways to access the User Privileges programming window:

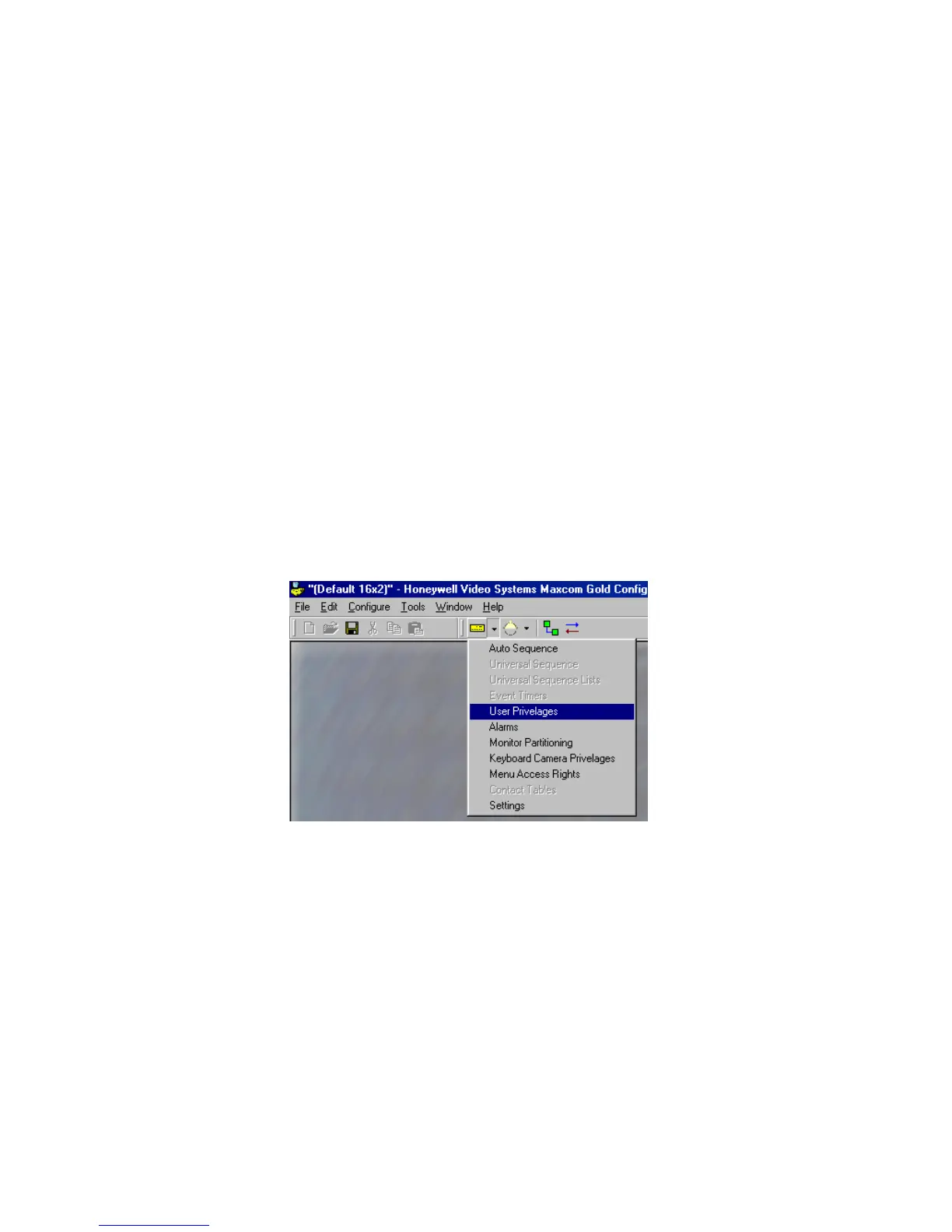

a. Click on the down arrow beside the MaxCom Icon on the Icon toolbar, and then
click on User Privileges as shown in the display below.
Rev. 1 60 900.0560
18-July-2005
