8.3.5 Alarms, Continued
5. Click on Send to send the new configuration for the selected alarm point to the
MaxCom Gold.
6. Select another alarm to configure or close the menu by clicking on the X in the
upper right corner.
8.3.6 Monitor Partitioning
Monitor partitioning defines which keyboard (KBD1 (socket 1), KBD2 (socket 2), RS232,
or none) controls which monitor. A monitor can also be denied access to a camera.

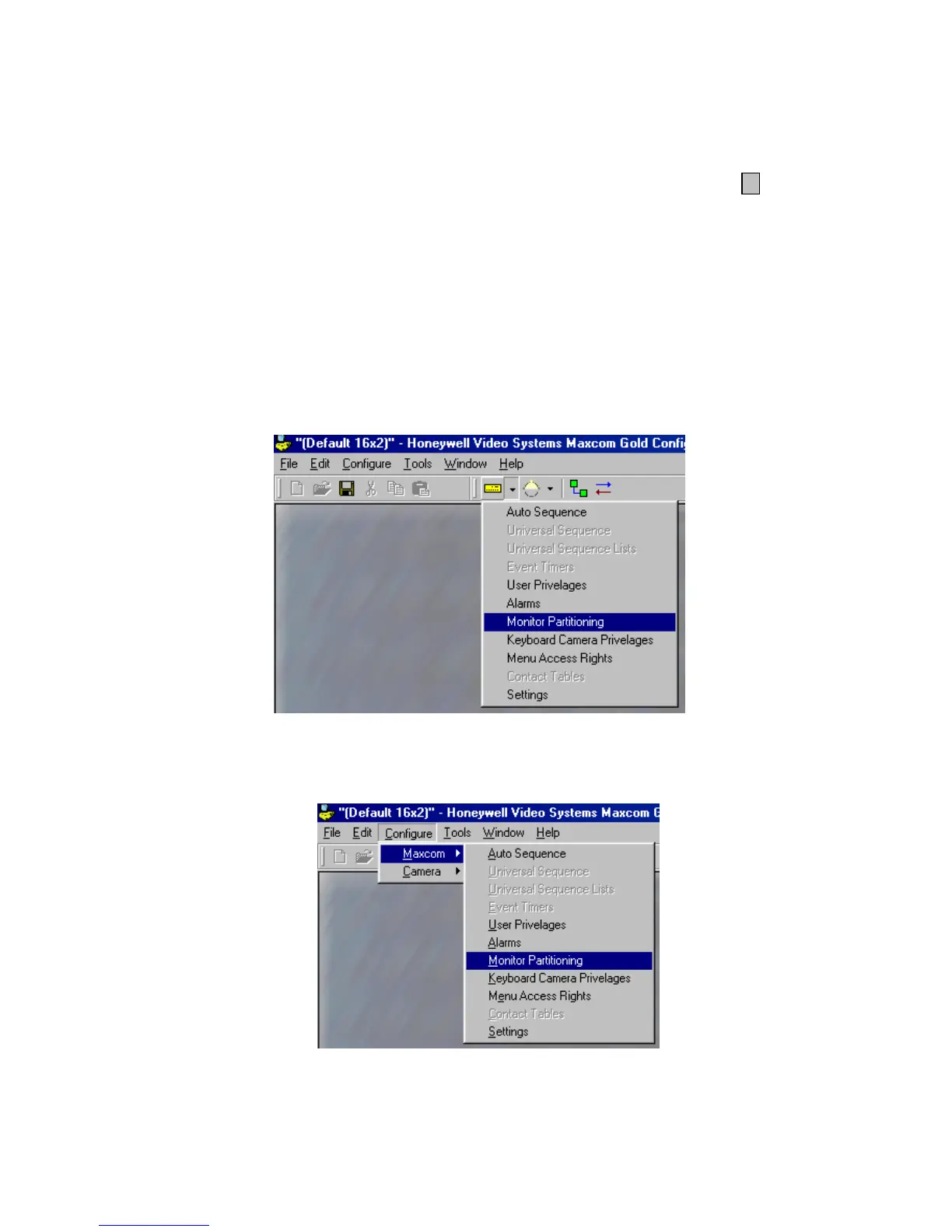

1. There are two ways to access the Monitor Partitioning programming window:
a. Click on the down arrow beside the MaxCom Icon on the Icon toolbar, and then
click on Monitor Partitioning as shown in the display below.
b. Click on Configure in the main menu, then MaxCom, then Monitor Partitioning as
shown in the following display.
Rev. 1 67 900.0560
18-July-2005
