8.3.3 Programming Auto-Sequences, Continued

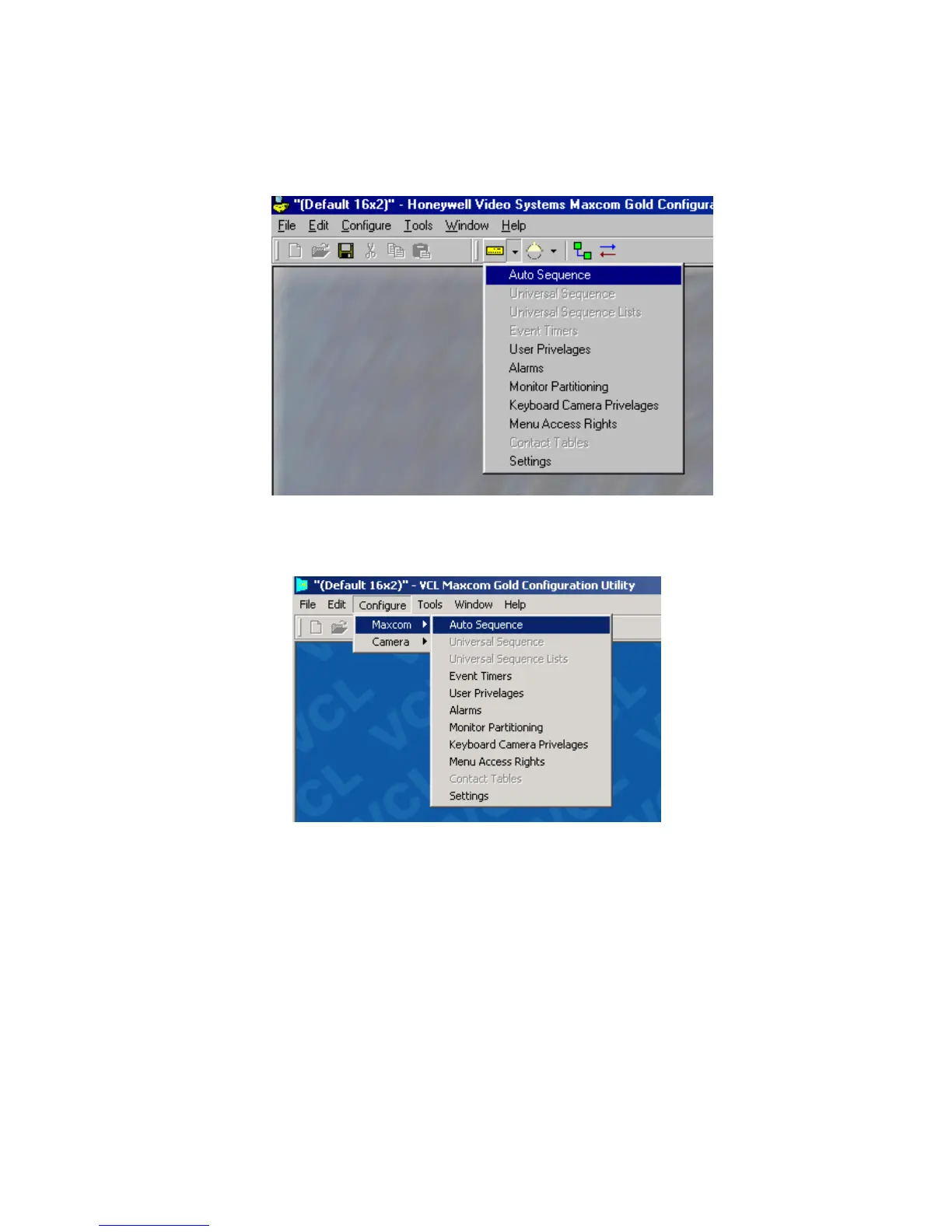

a. Click on the down arrow beside the MaxCom Icon on the Icon toolbar, then click
on Auto Sequence as shown in the display below.
b. Click on Configure in the main menu, then MaxCom, then Auto Sequence as
shown in the following display.
The Auto Sequence window is displayed. Note: If your MaxCom Gold has only
one monitor, you will only be able to program an auto sequence for Monitor 1.
2. Click on the monitor to program. For example, click on Monitor 1. The currently
programmed sequence is displayed for Monitor 1. The cursor is located in the
Stage 1, Camera field.
There are several buttons on the bottom of the window and the side of the window to
assist the user in editing the sequence.
Append – Click on the Append button to add another camera at the end of the
sequence.
Rev. 1 58 900.0560
18-July-2005
