Preset Titles, Continued

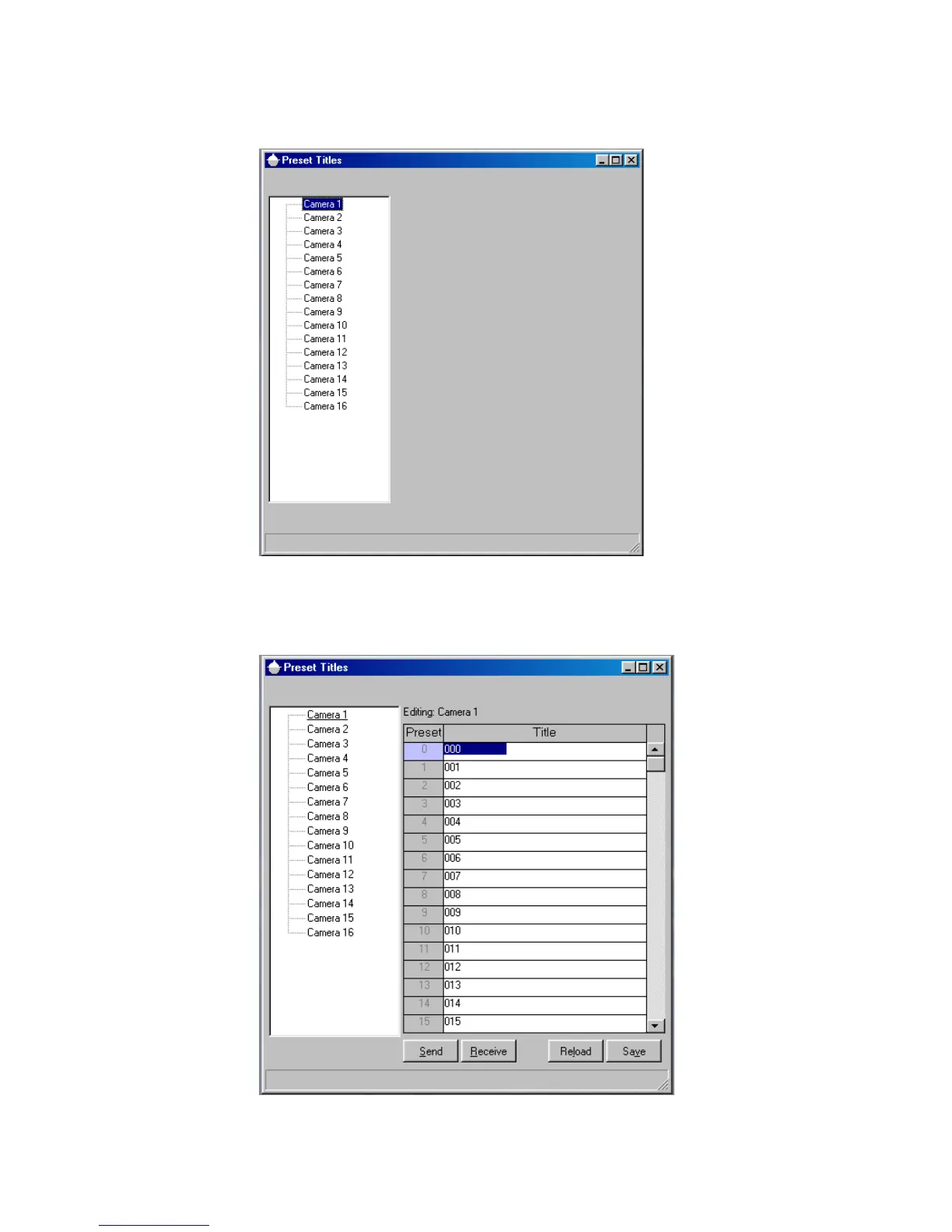

The Preset Titles menu is displayed.
2.
Click on the desired camera. For exampl
e, click on Camera 1. A listing of the
Presets (0-15) for Camera 1 are displayed.
To view more Presets, use
the up and
down arrows on the vertical scroll bar.
Rev. 1
81
900.0560
18-July-2005
