2.3 Planning example
F I
2
3
6
5
4
789
3
0
r
1
BUS-2 / U_ext.
Glass breakage sensor
e.g. IK3
reader
Bolt switching
contact
Door strike
Blocking element
BE 1 / 3 or
SLIM-LOCK
IK3 evaluation unit
Opening
contact
to control panel

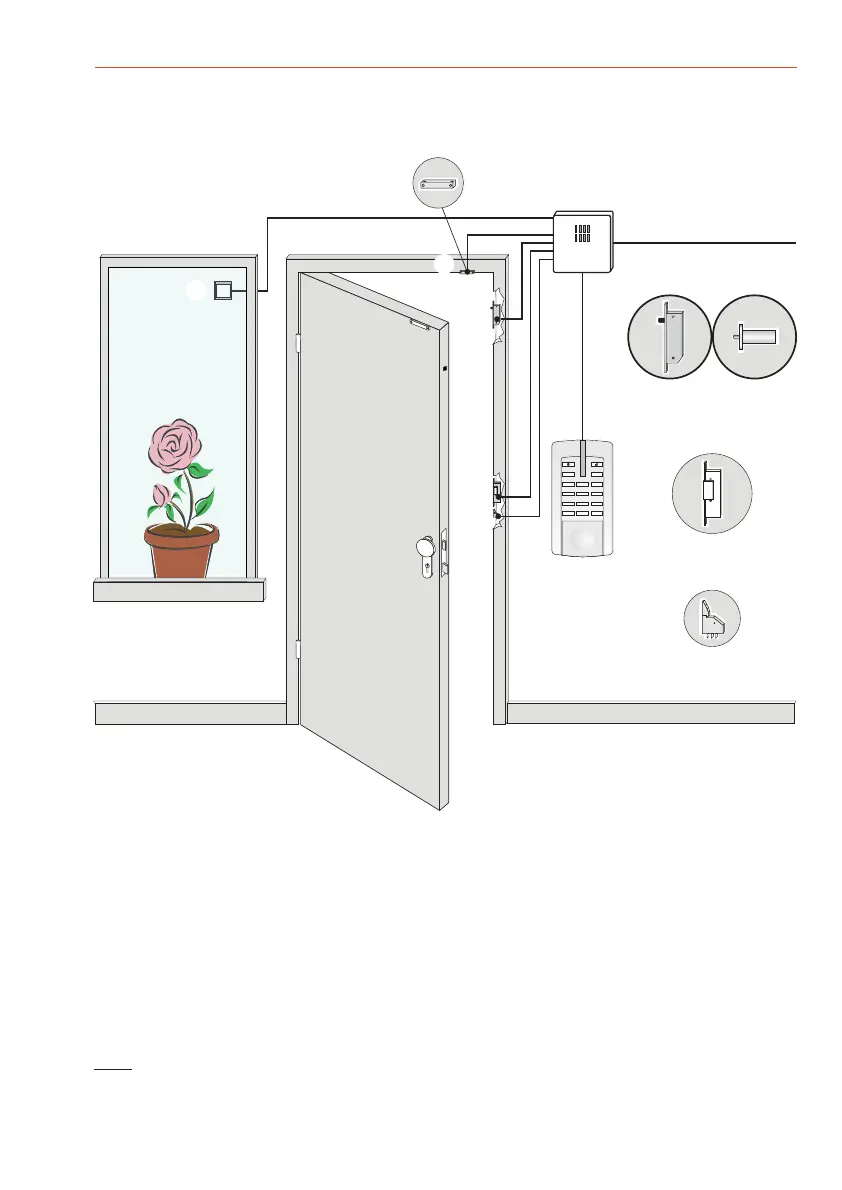

Used components:
Electromechanical blocking element as locking device
Door strike for IK release (AC function)
Bolt switching contact for lock monitoring
Opening contact
Glass breakage sensor
Note: With the blocking elements 1 MC or 3 (019033 / 019032), the contact integrated in the blocking
element can be used as opening contact up to VdS class B.
