Mounting and Connection Instructions IK3 Evaluation Unit BUS-2
Opening contact
Door strike
Status indication
*)
Opening contact
Bolt switching contact
Door strike
Blocking element
Status indication
*)
Data
BUS-2 BUS-2
External door
EU 1
Internal door
EU 2
Presence control
Release
*) Door strike with armature contact
and monitoring contact
0 V
normally
closed
contact
e.g. security mat
Data
Release
Exterior reader 1
Interior reader 1
(or AC button)
Exterior reader 2
Interior reader 2
(or AC button)
Outdoors (e.g. Class A)
Status display 1
Status display 2
Internal door
External door
EU 2
EU 1
Presence and dwell time
monitoring
e.g. security mats, light
barriers etc.
Indoors (e.g. strong room, Class C)
Interior
reader 2
(or AC button)
Exterior
reader 2
Exterior reader 1
Interior reader 1
(or AC button)

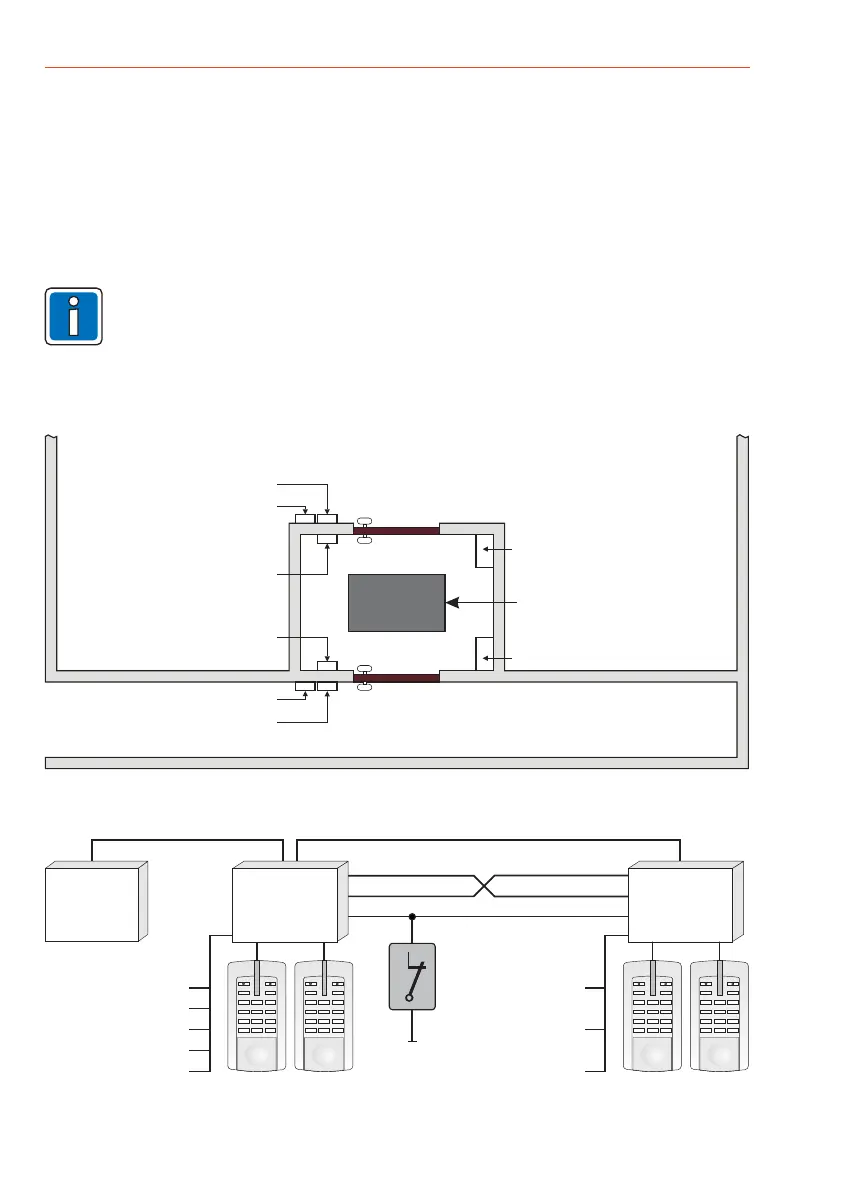

9.7 AC application as single entry access portal
In addition to the possibilities described in Chapter 2, a single entry access portal can be realized
with the IK3 system that complies with the VdS guidelines of Class C for access control systems. The
system can be designed as a personal interlock or be equipped with a turnstile.
Applicable readers: see schedule in Chapter 4
Prerequisites: Cent. control unit software from V05.xx (MB100, HB24/48 with Index .10)
WINFEM 100.10 from V05.xx
Function in conjunction with MB-Secure in preparation
In case of alarm, the readers can be operated at all times irrespective of the operating
state of the single entry access portal.
The time for "Presence and dwell time monitoring" has to be programmed as "Detector
group delay".
9.7.1 Personal interlock
F I
2
3
6
5
4
789
3
0
r
1
F I
2
3
6
5
4
789
3
0
r
1
F I
2
3
6
5
4
789
3
0
r
1
F I
2
3
6
5
4
789
3
0
r
1
The exterior reader 1 can also be used for arming/disarming.
Control
panel
IK3 evaluation
unit
(from V03.02)
023312.17
IK3 evaluation
unit
(from V03.02)
023312.17
