Honeywell IDENT KEY 3 Mounting And Connection Instructions

64
Mounting and Connection Instructions IK3 Evaluation Unit BUS-2

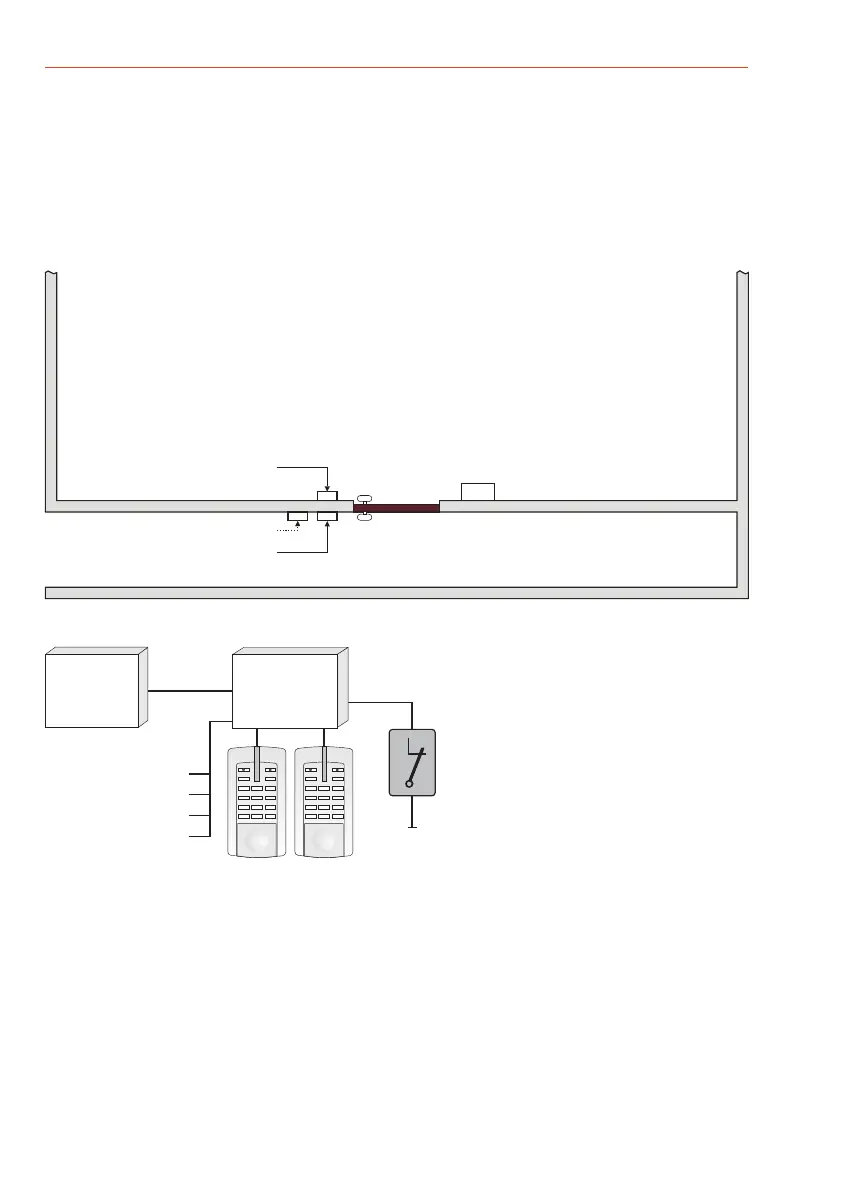

9.9 Multiple person AC
This option is activated on doors at which at least 2 people must be successively authorized in order
to obtain an AC release. Input range: 2 to 9 persons.
The system design complies with the standard AC function.
Functions are assigned via control panel programming, see "User Manual WINFEM Advanced for
IACP 561-HB24/MB24/HB48/MB48/MB100", P03171-20-0G0-xx (xx = from 03).
Function in conjunction with MB-Secure in preparation.
F I
2
3
6
5
4
789
3
0
r
1
F I
2
3
6
5
4
789
3
0
r
1
Opening contact
Bolt switching contact
Door strike
Blocking element
*)
BUS-2
Presence control
*) Door strike with armature contact and monitoring contact
0 V
normally
closed
contact
e.g. security mat
floor with contacts etc.
IK3 evaluation
unit 023312.17
Exterior reader
Interior reader
The exterior reader can also be used for arming/disarming.
Control
panel
9.8 Antipassback
The function "antipassback" can technically be realized via special version of a single entry access
portal system (see 9.7.2).
Function in conjunction with MB-Secure in preparation.
Door release from outside is blocked as long as the monitored room is
occupied.
Functions are assigned via control panel programming, see "Programming Instructions Intruder
Alarm Control Panel 561-MB24/48/100", P00163-05-0G0-xx (xx = from 14).
Exterior reader
Interior reader
Outdoors
EU
Indoors
room with presence monitoring
Status indication
Status indication possible (see 9.7.2 and 9.7.3)
