Mounting and Connection Instructions IK3 Evaluation Unit BUS-2
43

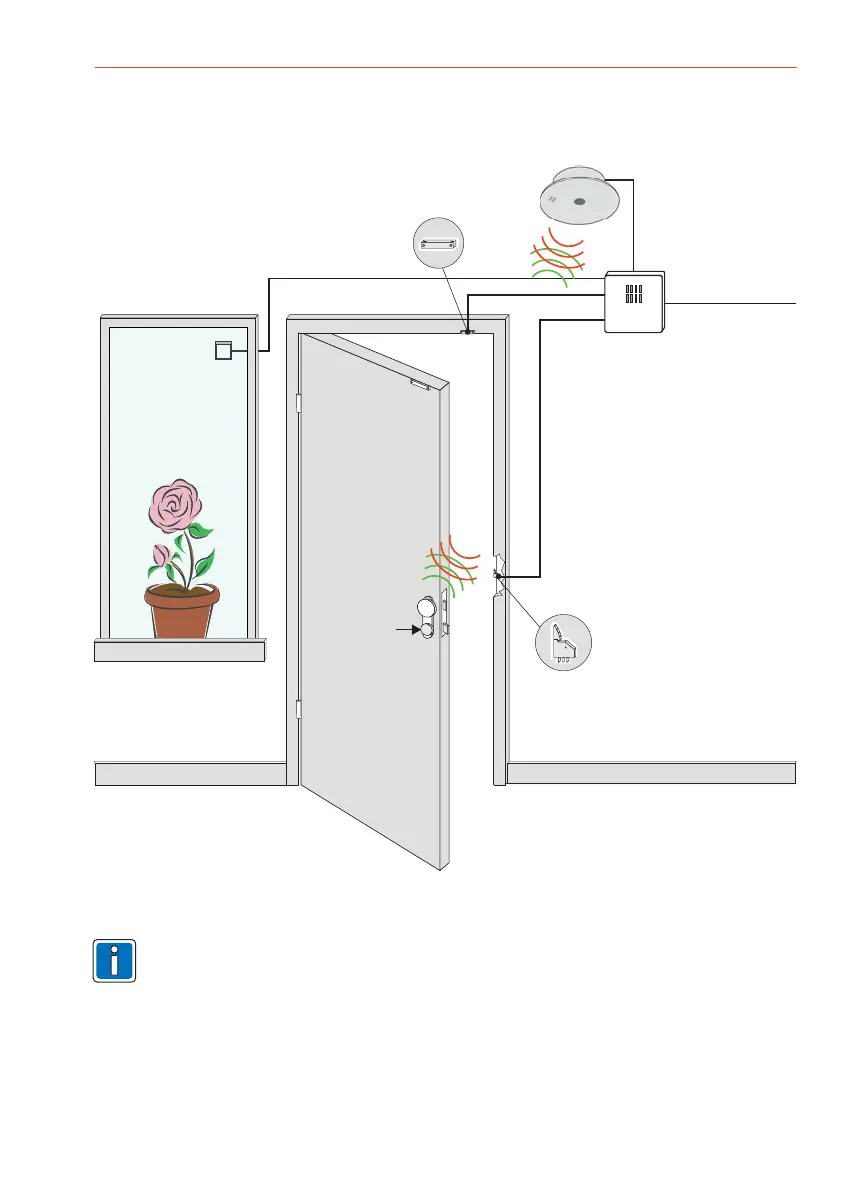

2.4.4 arm/disarm with XS Pro componentsExample
No Blocking element requited. When the system is armed, the AC function is blocked!
BUS-2 / U_ext.
Glass breakage sensor
IK3 evaluation unit
Opening
contact
to control panel
Bolt switching
contact
RS-485Trafficpoint
RS-485
XS Pro
cylinder/
fitting
XS Pro fittings not suitable for outdoor areas
XS Pro cylinder
are !
may only be used in protected outdoor area if it is ensured that the formation
of condensation and a possible defrosting can be ruled out!
The evaluation of environmental conditions and the decision for an installation ultimately is up
to the installer. We cannot recommend the use in exposed outdoor areas.
