Honeywell IPC5000 User Manual

- 13 -

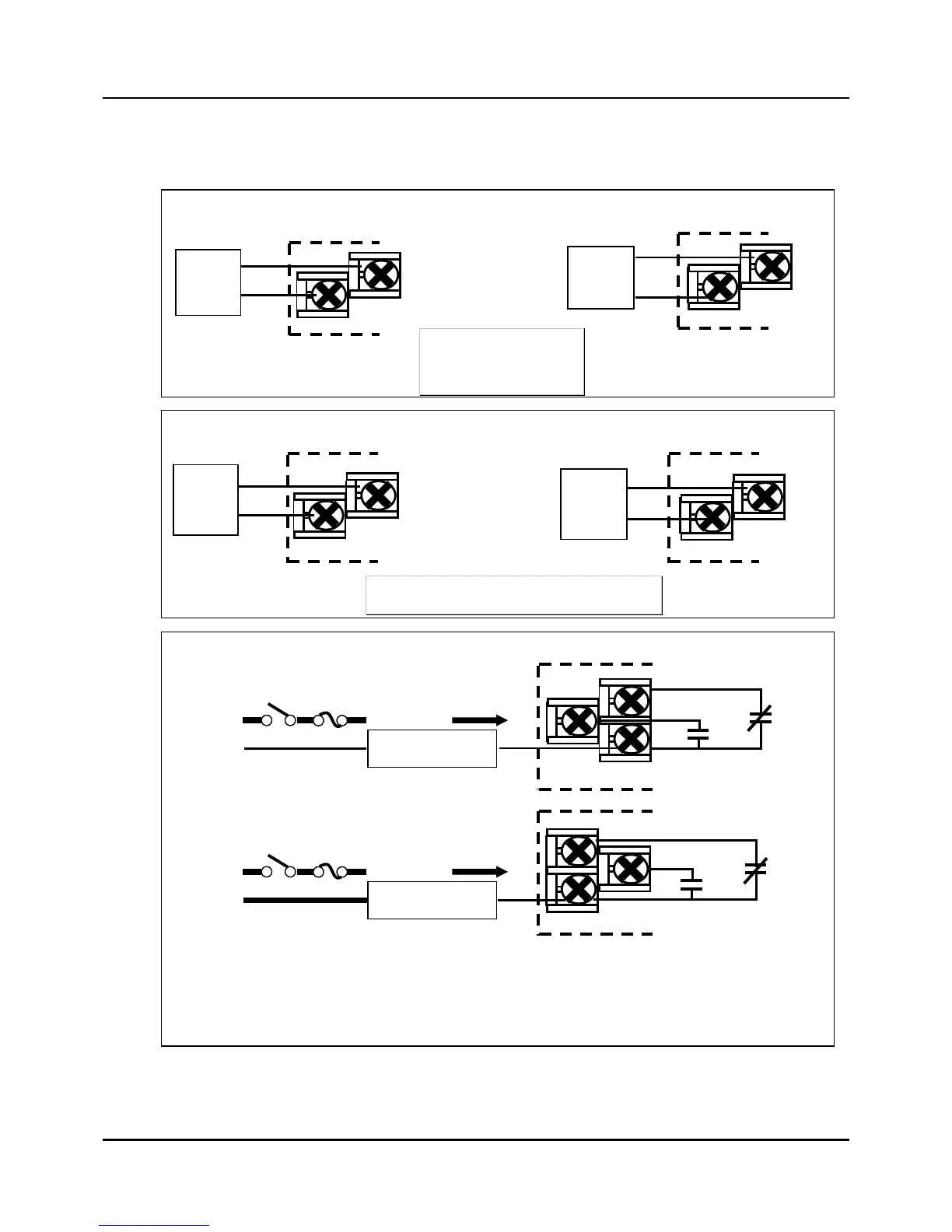

3) Connection of Universal control output
Fig. 2.7.3 Control output 1 / output 2 Connections
The ‘Voltage pulse output’ is not available for IPC5000S.
Relay outputs
[Note] Electromechanical relays are rated at 3 Amps at 240Vac. Customer should size fuses
accordingly. Use Fast Blo fuses only.
Output 1
15
17
16
N.C.
N.O.
Relay load
To terminal
16 or 15
Load
Supply
Power
Output 2
19 18
20
N.O.
N.C.
Relay load
To terminal
18 or 19
Load
Supply
Power
Current outputs (4~20mA)
Output 1
1
2
+
-
Load
Output 2
3
4
+
-
Load
4 to 20mA DC
Load resistance
Less than 600 Ω
Voltage pulse outputs
Output 2
3
4
+
-
SSR
Output 1
1
2
+
-
SSR
1 to 22mA DC
Open terminal voltage: Max. 25V DC
