Honeywell IPC5000 - Fig. 3.17.2 Fix Control Operation When SP Tracking on and JC = 2; Fig. 3.17.3 Fix Control Operation When SP Tracking off and JC = 2

- 72 -

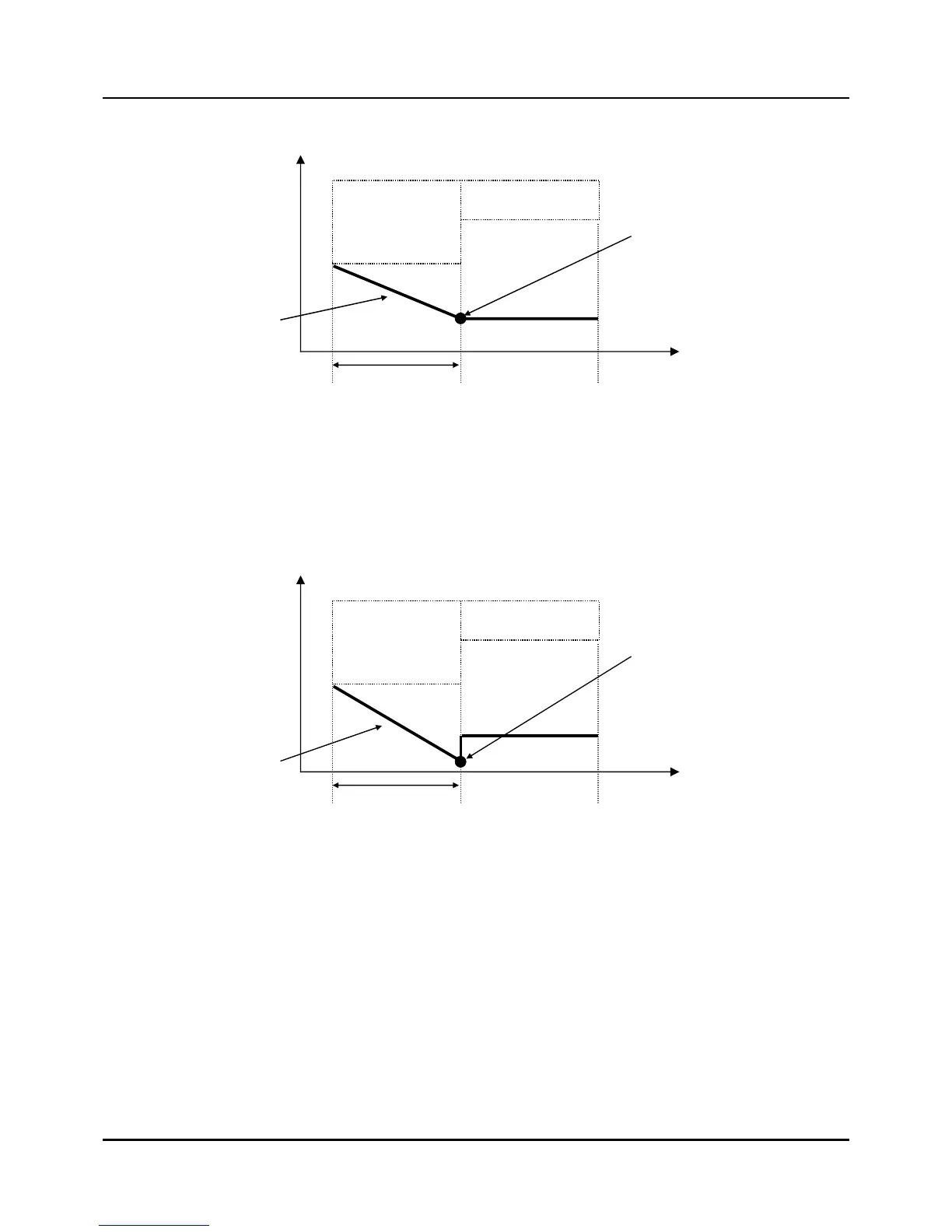

Fig. 3.17.2 Fix Control Operation when SP Tracking On and JC = 2
If SP tracking is OFF, the target setting value (SP) at the program end becomes the last target
setting value. The PV event runs as the event of the fix control and the time event is disabled.
Fig. 3.17.3 Fix Control Operation when SP Tracking Off and JC = 2
(3) TIME UNIT setting button
z Sets the default time unit of IPC5000.
z HR.MIN: The minimum unit of the IPC5000 default time will be hour and minute.
z MIN.SEC: The minimum unit of the IPC5000 default time will be minute and second.
Last segment of
program operation
Fix control
Time event
EVn
Target setting value of fix control
SP tracking ON
PV
Time
Ramp is set by the
target setting value of
the fix control at the
last segment.
Last segment of
program operation
Fix control
Time event
EVn
Target setting value of fix control
SP tracking OFF
PV
Time
Ramp is set by the
target setting value of
the fix control at the
last segment.
