Honeywell IPC5000 User Manual

- 37 -

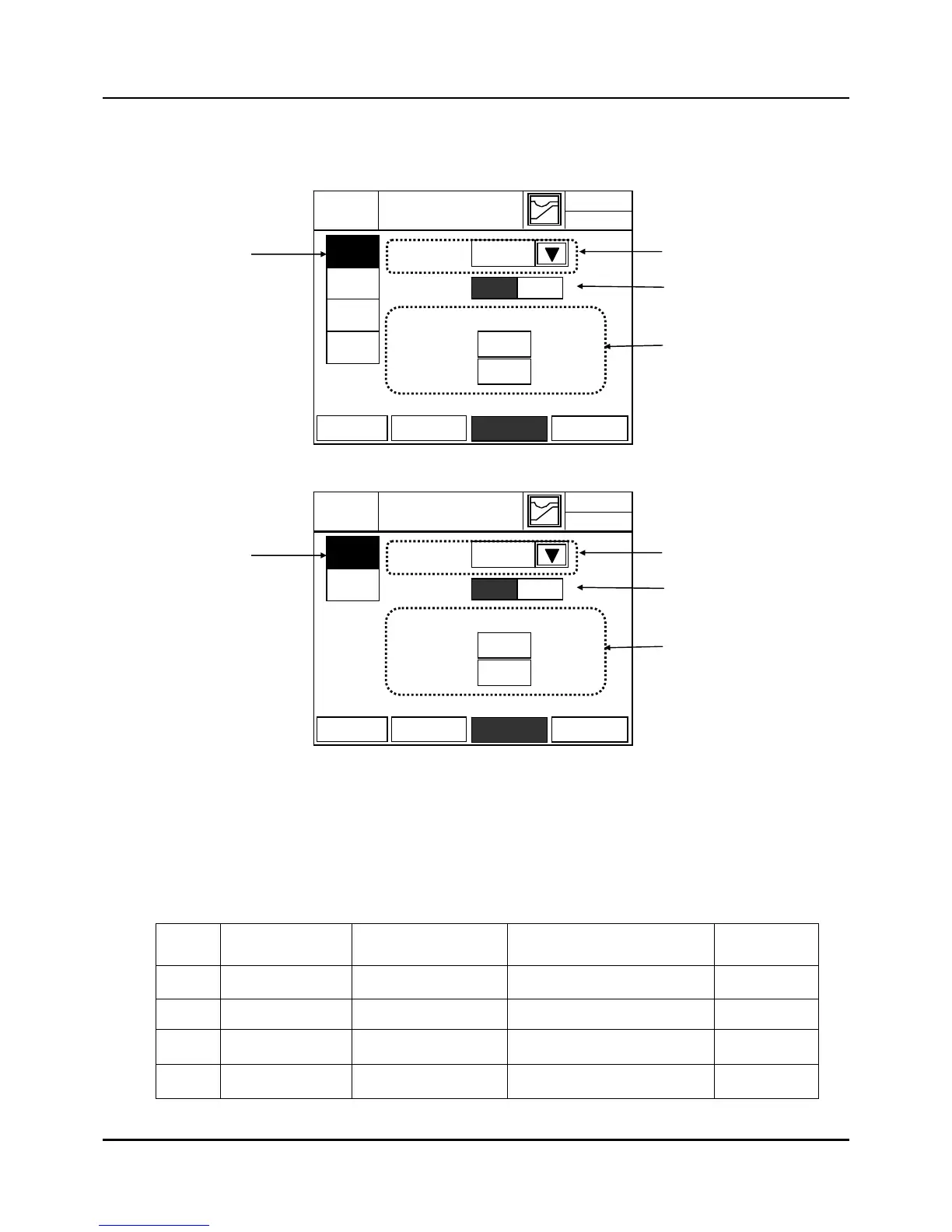

3.5 AO SET screen
This screen is for setting analog output source, output type and output scale of each channel.
(a) IPC5000D model
(b) IPC5000S model
Fig. 3.5.1 AO SET screen
(1) The selector for selecting analog output channel : It is highlighted and selected.
Refer to below table for channel selection and description.
(a) IPC5000D
OPT: Option
Analog output
Terminal number
(Analog I/O Group)
Output Type
Basic/OPT
Spec.
AO1 1 1(+), 2(-) 4~20mA/ Voltage Pulse Basic
AO2 2 3(+), 4(-) 4~20mA/ Voltage Pulse Basic
AO3 3 5(+), 6(-) 4~20mA OPT
AO4 4 7(+), 8(-) 4~20mA OPT
2003.01.23
AO SET
EXIT
12 H 59 M
AO1
(1)
AO2
SOURCE
MV1
OUT TYPE
4-20mA PWM
AO3
AO4
AI SET DI/DO
AO SET
PWM SET
(2)
(3)
(4)
LOW/HIGH SCALE
LOW
HIGH
-50.0
150.0
>> 4mA
>> 20mA
2003.01.23
AO SET
EXIT
12 H 59 M
AO1
(1)
AO2
SOURCE
MV1-H
OUT TYPE
4-20mA PWM
AI SET DI/DO
AO SET
PWM SET
(2)
(3)
(4)
LOW/HIGH SCALE
LOW
HIGH
-50.0
150.0
>> 4mA
>> 20mA
