Honeywell IPC5000 User Manual

- 38 -
(a) IPC5000S
OPT: Option
Analog output
Terminal number
(Analog I/O Group)
Output Type
Basic/OPT
Spec.
AO1 1 1(+), 2(-) 4~20mA/ Voltage Pulse Basic
AO2 2 3(+), 4(-) 4~20mA/ Voltage Pulse Basic
(2) SOURCE set: The Combo box for selecting analog output source
z If pushing this button, the items for selection like figure 3.5.2 appear in next page. If the
OUT TYPE is 4~20mA, (A) appears and if it is PWM, (B) appears.
z IPC5000D : selecting one of PV1, PV2, SP1, SP2, DV1 and DV2
IPC5000S : selecting one of PV1, SP1 and DV1
When setting in figure 3.5.2, (4) item in figure 3.5.1 for setting output scale of 4~20mA is
displayed.
z PWM Selection : PWM means Pulse Width Modulation and it is four pulse outputs
IPC5000 supports. The MV1, MV2, MV3 and MV4 of IPC5000D and MV1 and MV2 of
IPC5000S can be assigned to each pulse. Refer to figure 3.4.1 and 3.4.2 for the assigning.
(3) OUT TYPE set : Sets the output type to analog output terminal.
z Anlaog output channel 1 and 2 supports 4~20mA and Voltage pulse(PWM) and Anlaog
output channel 3 and 4 only supports 4~20mA. Analog output channel 3 and 4 is option.

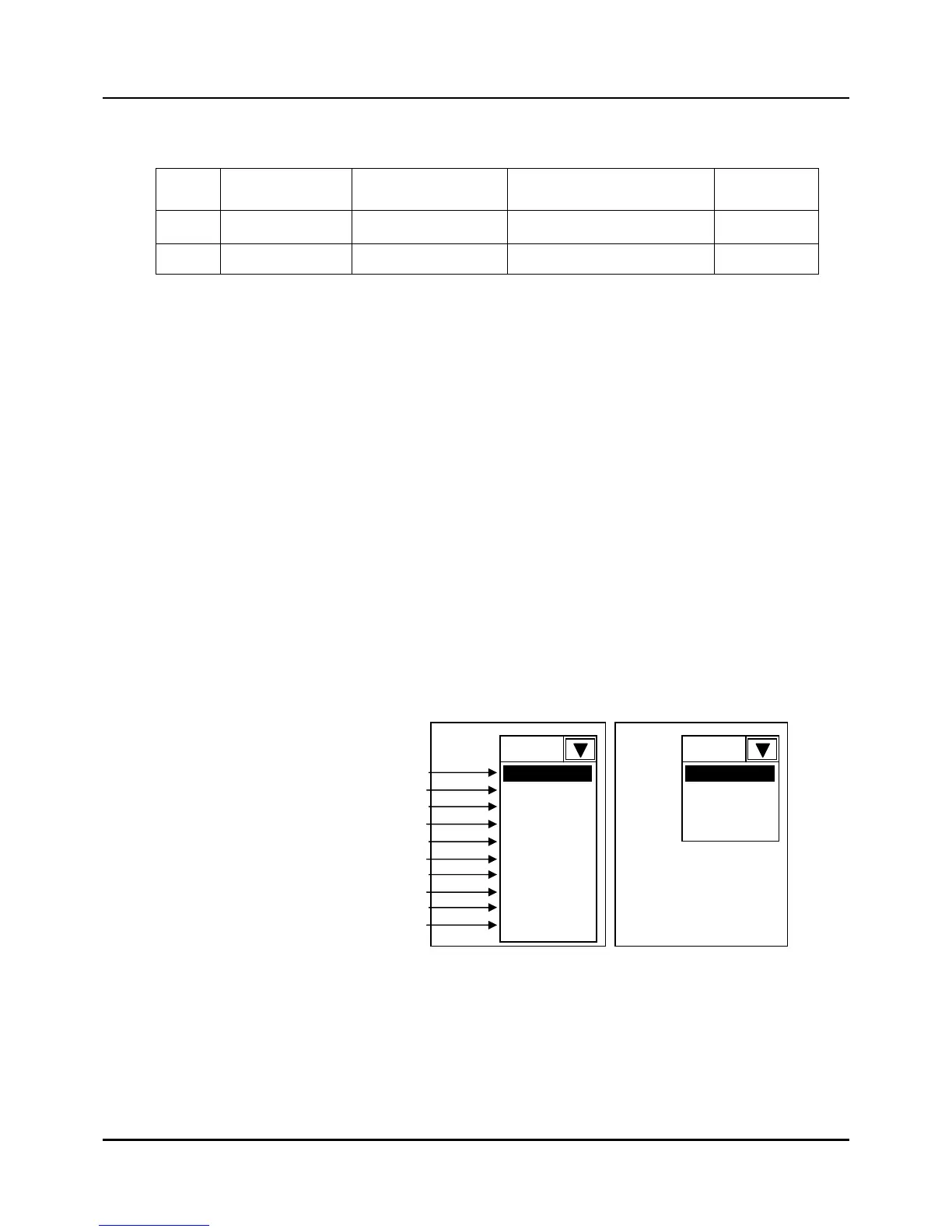

(a) IPC5000D
(i) OUT TYPE = 4~20mA (ii) OUT TYPE = PWM
SOURCE MV1
MV1
MV2
MV3
MV4
PV1
PV2
SP1
SP2
DV1
DV2
SOURCE MV1
MV1
MV2
MV3
MV4
Control output for heating of channel 1
Control output for heating of channel 2
Control output for cooling of channel 1
Control output for cooling of channel 2
Process Value of channel 1
Process Value of channel 2
Set Point of channel 1
Set Point of channel 2
Deviation Value of channel 1
Deviation Value of channel 2
