- 39 -

(b) IPC5000S

(i) OUT TYPE = 4~20mA (ii) OUT TYPE = PWM

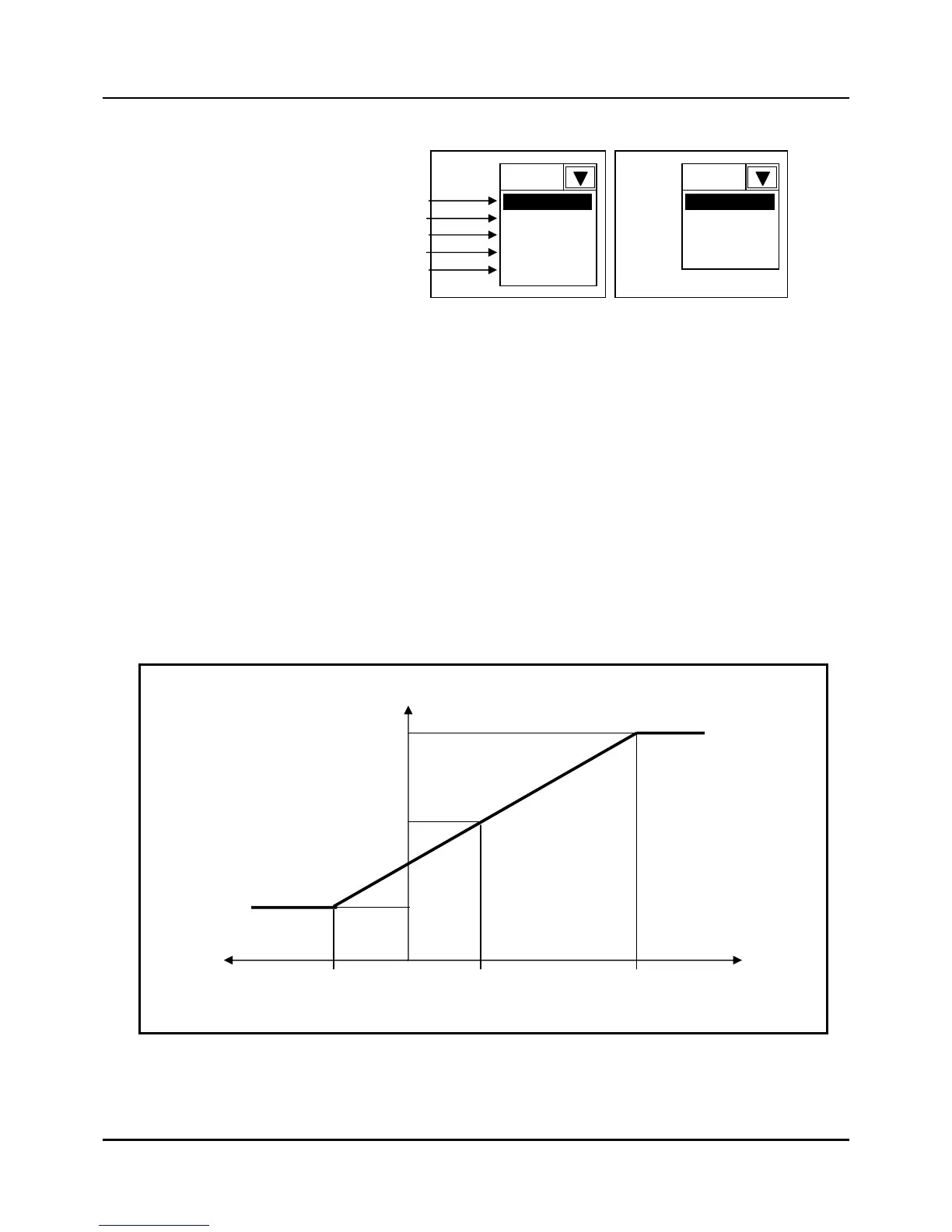

Fig. 3.5.2 Combo box for selecting anlog output source

(4) LOW/HIGH SCALE : Sets the analog output low/high scale for PV1, PV2, SP1, SP2, DV1

and DV2.

z This item is not displayed when the source is MV1, MV2, MV3 or MV4 of IPC5000D or

output type is PWM.

z Refer to figure 3.5.3 to adjust 4~20mA by setting scale value.

Exmaple of Figure 3.5.3 is same case with set value of figure 3.5.1.

(Note) Low < High.

Refer to next page for scale graph.

Fig. 3.5.3 Current output scale adjustable graph

-50.0 150.0 50.0

PV1

4.0

4~20mA

Current output

20.0

12.0

PV1

SOURCE MV1-H

MV1-H

MV1-C

PV1

SP1

DV1

SOURCE MV1-H

MV1-H

MV1-C

Control output for heating of channel 1

Control output for cooling of channel 1

Process Value of channel 1

Set Point of channel 1

Deviation Value of channel 1
