- 19 -

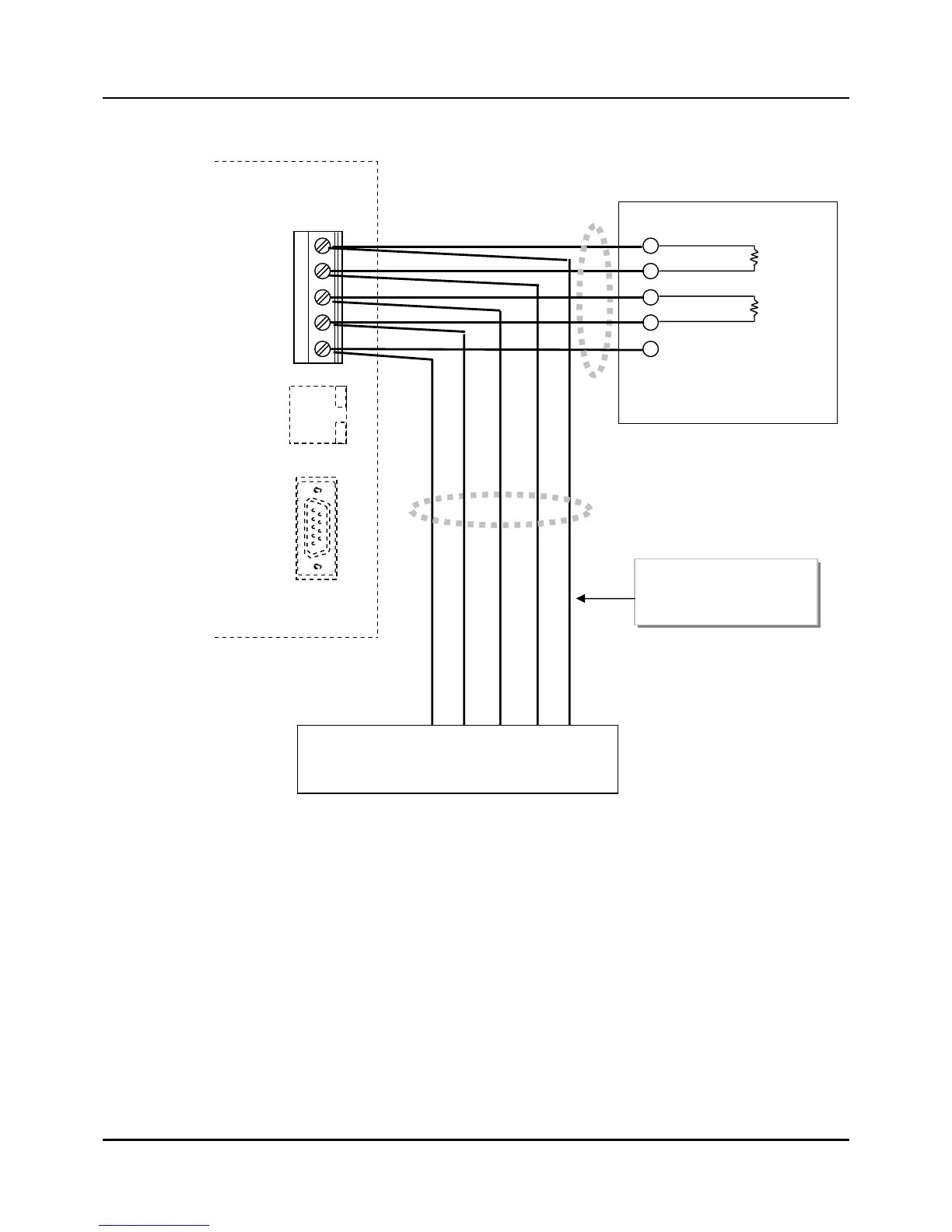

Fig. 2.7.10 RS422/485/Modbus Communications Option Connections (5-Wire shield)
5-Wire
Shielded
SG
SDB
SDA
RDB
RDA
MODBUS
Master
RX+
RX-
SG
T
o other communication IPC5000s
(Maximum 31)
* 120 Ohm Resistor on Last Leg
120 Ohm
Resistor
TX+
TX-
120 Ohm
Resistor
Do not run these lines in
the same conduit as AC
power
Use shielded
twisted pair cables
