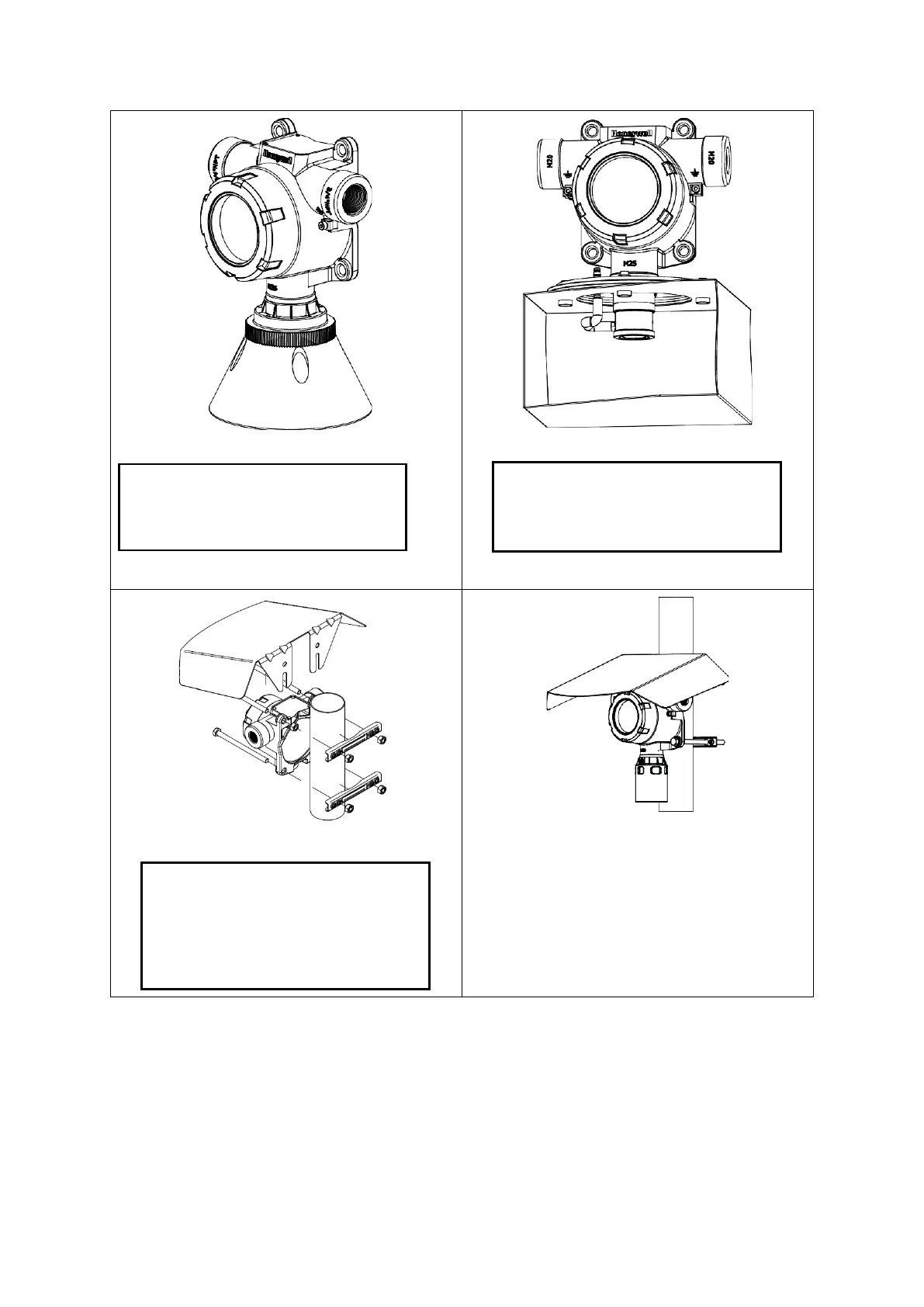

Collecting cone
Duct mounting kit
Sunshade Deluge Cover Arrangement
Typical Mounting Arrangement
The Collecting Cone (P/N: SPXCDCC) is an
optional accessory that may be fitted to the
Weather Protection. The collecting cone is
designed for use with lighter than air.
The Duct Mounting Kit (P/N: SPXCDDMK) is an
optional accessory that is designed for applications
to allow the monitoring for the presence of gas
inside a Heating, Ventilation or Air Conditioning
(HVAC) duct is required.
The XCD Sunshade Deluge Cover (P/N:
SPXCDSDP) is an optional accessory that may
be fitted to the integral mounting plate. This
accessory is designed to protect XCD from
overheating in exposed hot and arid climates,
particularly offering additional protection from
thermal shock in Tropical Environments

Honeywell Sensepoint XCD Specifications

General

Type	Fixed Gas Detector
Ingress Protection	IP66/67
Display	LCD
Output	4-20 mA, Relay
Certification	ATEX, IECEx
Sensor Type	Electrochemical, Infrared
Humidity	0 to 99% RH (non-condensing)
Material	Stainless Steel
Detection Principle	Depends on Sensor Type
Power Supply	24 VDC nominal (17-32 VDC)
