Sensepoint XCD Technical Manual SPXCDHMANEN Issue 15
25

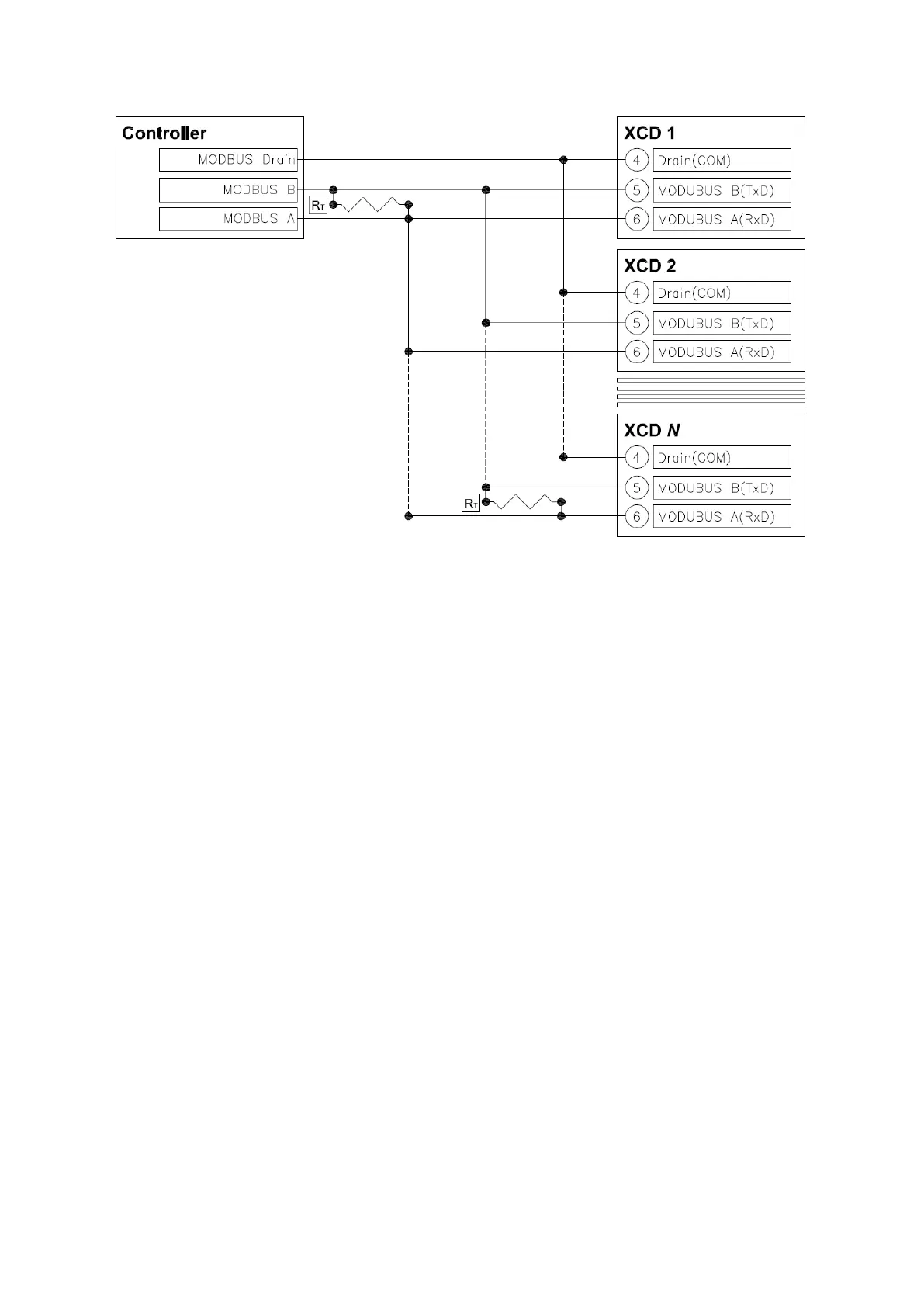

Notes  refers to the terminal block pin numbers in the Sensepoint XCD terminal module.
Note RT is a termination resistor (120 Ohm is recommended). A termination resistor at the controller
side is not required if it has an internal termination resistor.
