SPYDER MODEL 5 ENGINEERING TOOL – USER GUIDE
31-00282ES-01 68

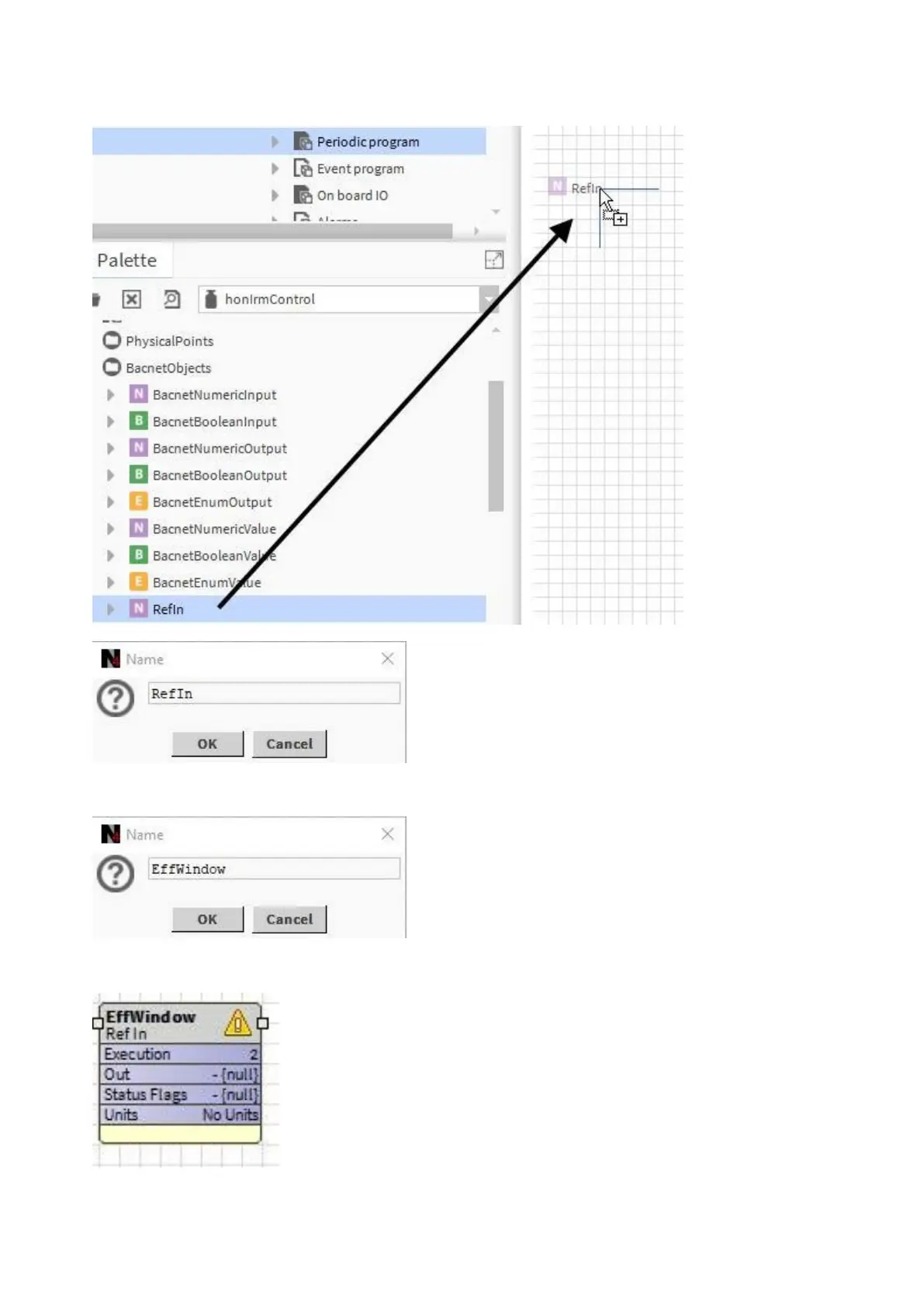

10. In the honIrmControl palette, expand BacnetObjects, and then drag & drop the RefIn BACnet object to the wire sheet.
11. In the Name dialog box, change the name to ´EffWindow`, and then click OK.
12. The reference input is added to the wire sheet.
