Installation and configuration 10
HP 48-port Serial Console Server components
The 48-port SCS has the following front and rear panel components.
Front panel components

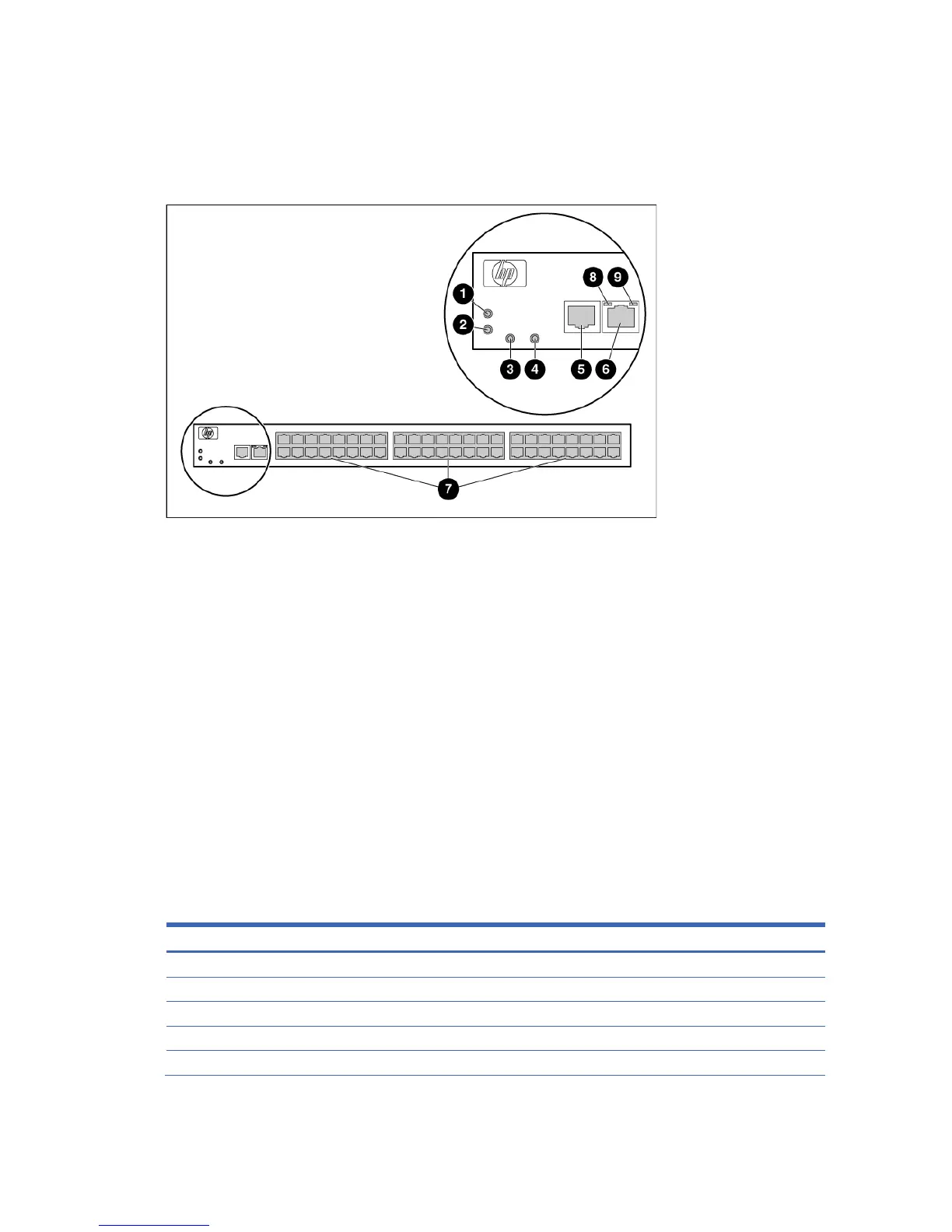

Figure 2-3 HP 48-port Serial Console Server front panel
1 Online LED—Illuminates
steadily (not blinking)
when the SCS self-test and
initialization procedures
complete successfully.
6 LAN port—Connects a
10BaseT or100BaseT
interface cable.
2 Power LED—Illuminates
when the SCS is
connected to a power
source.
7 RJ-45 port connectors—
Connects serial cabling.
The port number is
adjacent to each
connector.
3 Reset button—Reboots the
SCS.
8 Speed LED—Indicates the
link speed. See Table 2-1.
4 Init button—Restores the
SCS factory default values
when pressed and held.
9 Link/Traffic LED—Indicates
whether there is traffic on
the link. See Table 2-1.
5 RJ-45 serial console port.
Speed and Link/Traffic LEDs
The Speed and Link/Traffic LEDs are adjacent to the LAN port. Table 2-1 describes the possible values for these two
LEDs.
Table 2-1 LAN LED values
Speed LED Link/Traffic LED Description
Off Off No link
Off On Link at 10 Mbps
Green On Link at 100 Mbps
Off Flashing Traffic at 10 Mbps
Green Flashing Traffic at 100 Mbps
