HP 75000 SERIES C User Manual

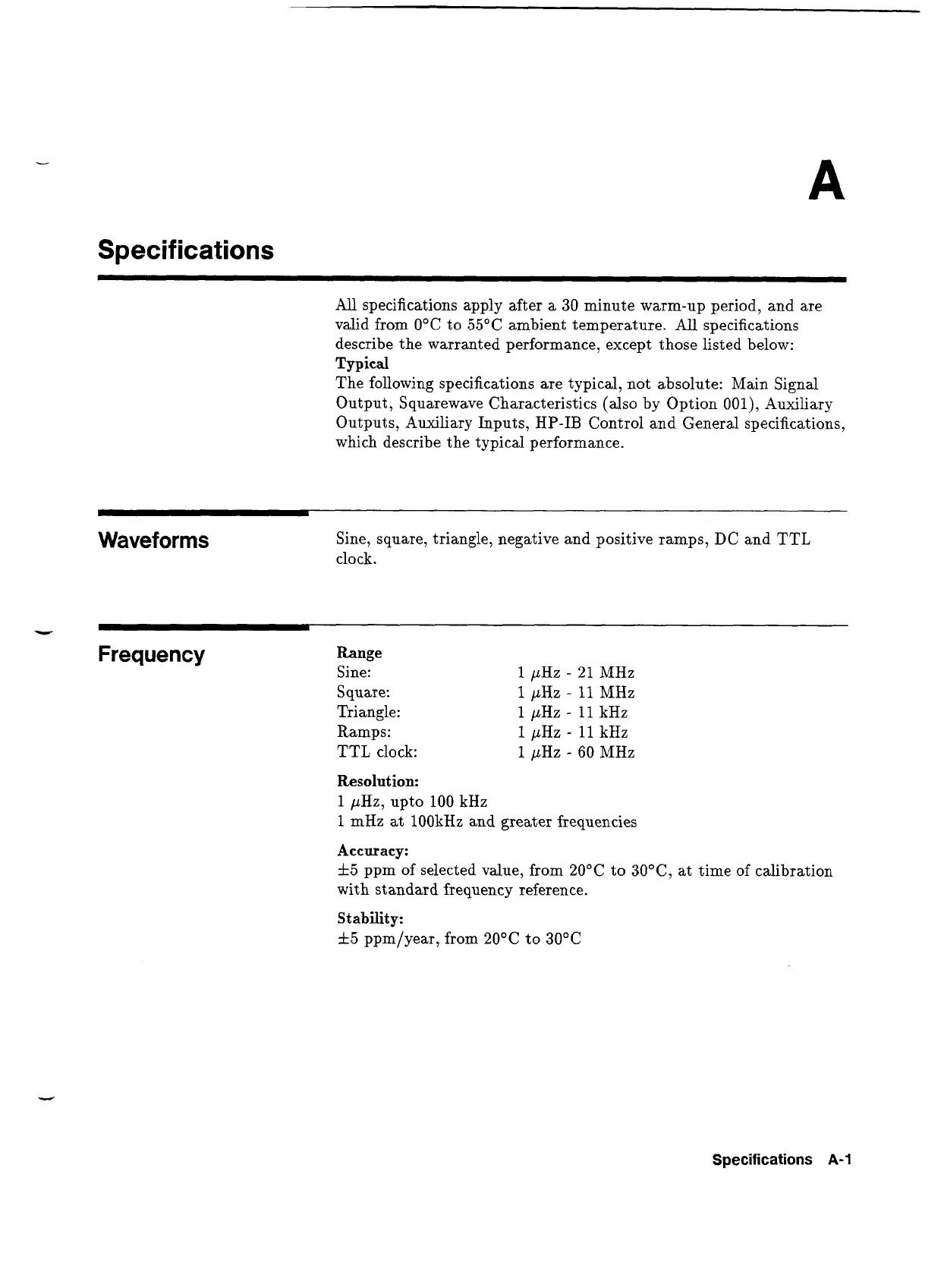

Specifications
All specifications apply after a 30 minute warm-up period, and are
valid from O°C to 55OC ambient temperature. All specifications
describe the warranted performance, except those listed below:
Typical
The following specifications are typical, not absolute: Main Signal
Output, Squarewave Characteristics (also by Option 001), Auxiliary
Outputs, Auxiliary Inputs, HP-IB Control and General specifications,
which describe the typical performance.
Waveforms
Sine, square, triangle, negative and positive ramps, DC and TTL
clock.
Frequency
Range
Sine: 1 pHz - 21 MHz
Square:
1 pHz - 11 MHz
Triangle:
1 pHz - 11 kHz
Ramps:
1 pHz - 11 kHz
TTL clock:
1 pHz - 60 MHz
Resolution:
1 pHz, upto 100 kHz
1 mHz at lOOkHz and greater frequencies
Accuracy:
f 5 ppm of selected value, from 20°C to 30°C, at time of calibration
with standard frequency reference.
Stability:
f 5 ppm/year, from 20°C to 30°C
Specifications A-1
