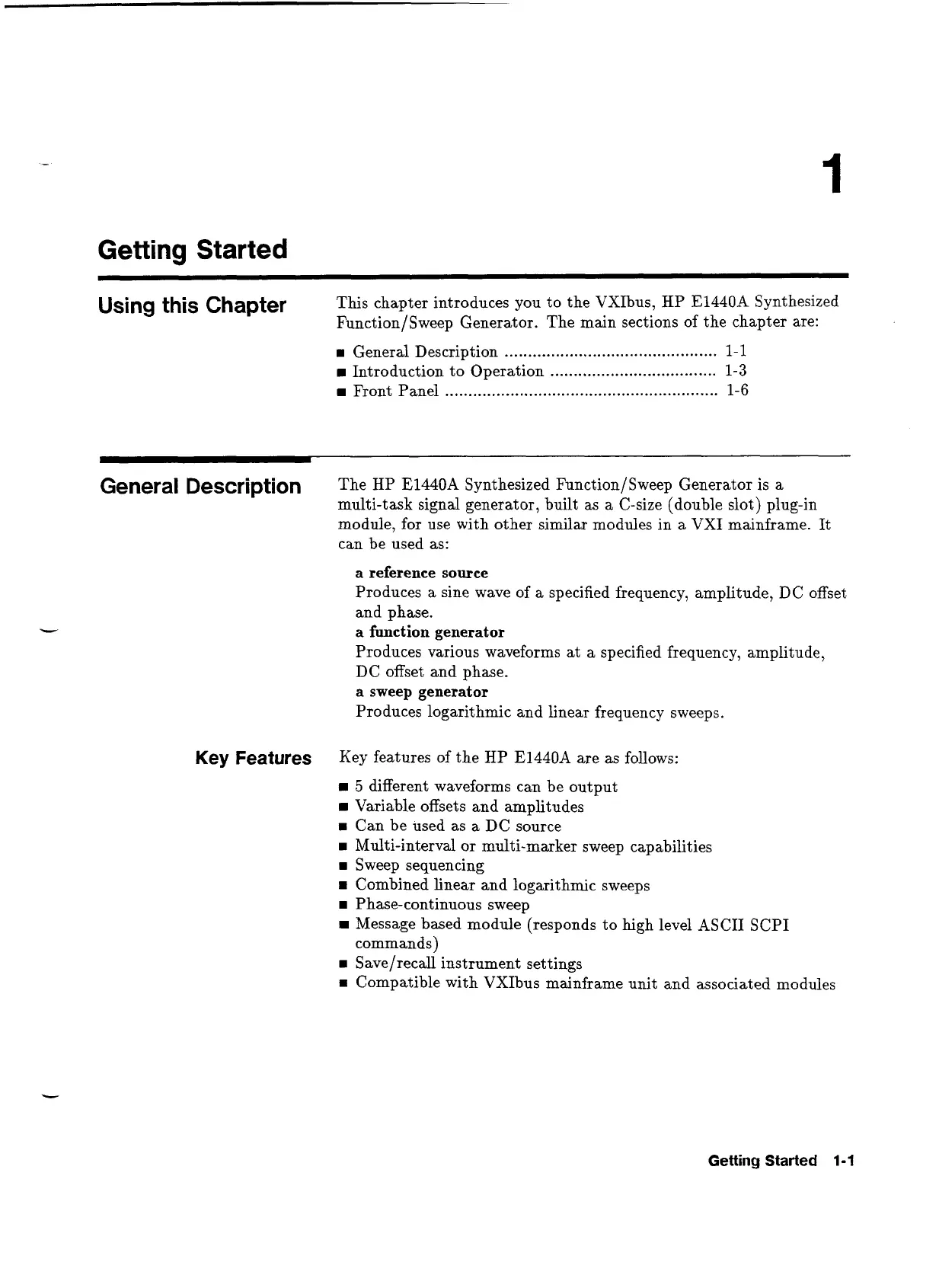

Getting Started
Using this Chapter
This chapter introduces you to the VXIbus, HP E1440A Synthesized
FunctionJSweep Generator. The main sections of the chapter are:
..............................................
rn General Description 1-1
Introduction to Operation .................................... 1-3
Front Panel ........................................................ 1-6
General Description
The HP E1440A Synthesized FunctionJSweep Generator is a
multi-task signal generator, built as a C-size (double slot) plug-in
module, for use with other similar modules in a VXI mainframe. It
can be used as:
a reference source
Produces a sine wave of a specified frequency, amplitude, DC offset
and phase.
a function generator
Produces various waveforms at a specified frequency, amplitude,
DC offset and phase.
a sweep generator
Produces logarithmic and linear frequency sweeps.
Key Features
Key features of the HP E1440A are as follows:
5 different waveforms can be output
Variable offsets and amplitudes
rn Can be used as a DC source
rn Multi-interval or multi-marker sweep capabilities
rn Sweep sequencing
rn Combined linear and logarithmic sweeps
rn Phase-continuous sweep
Message based module (responds to high level ASCII SCPI
commands)
rn Save/recall instrument settings
rn Compatible with VXIbus mainframe unit and associated modules
Getting Started 1-1
