HP 75000 SERIES C User Manual

Equipment
Recommended Test
The equipment required for the tests is listed in Table C-1. Any
equipment which satisfies the critical specifications given in the table,
may be substituted for recommended models.

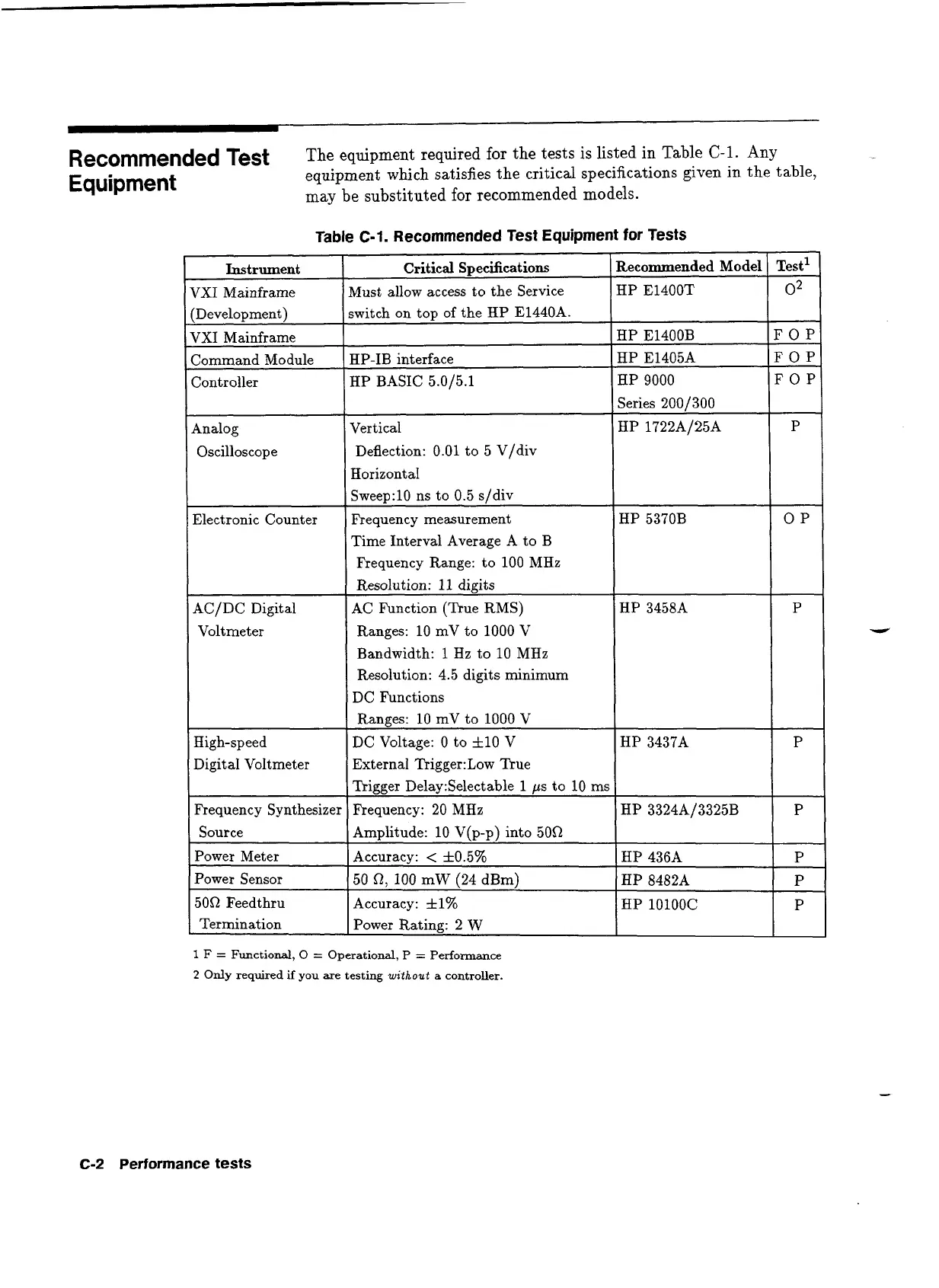

Table C-1. Recommended Test Equipment for Tests
Instrument
VXI Mainframe
(Development)
VXI Mainframe
Command Module
Controller
3P E1400B FOP
BP E1405A FOP
BP 9000 FOP
series 200/300
BP 1722A/25A P
Critical Specifications
Must allow access to the Service
switch on top of the HP E1440A.
HP-IB interface
HP BASIC 5.015.1
-- - - -
Analog
Oscilloscope
Electronic Counter
AC/DC Digital
Voltmeter
High-speed
Digital Voltmeter
Frequency Synthesizer
Source
Power Meter
I Power Sensor
50R Feedthru
Termination
C-2 Performance tests
Vertical
Deflection: 0.01 to 5 V/div
Horizontal
Sweep:lO ns to 0.5 s/div
Frequency measurement
Time Interval Average A to B
Frequency Range: to 100 MHz
Resolution:
11 digits
AC Function (True RMS)
Ranges: 10 mV to 1000 V
Bandwidth:
1 Hz to 10 MHz
Resolution: 4.5 digits minimum
DC Functions
Ranges: 10
mV to 1000
V
DC Voltage: 0 to f 10 V
External Trigger:Low True
Trigger De1ay:Selectable
1 ps to 10 ms
Frequency: 20 MHz
Amplitude: 10 V(p-p) into 500
Accuracy:
< &0.5%
50
0, 100 mW (24 dBm)
Accuracy: &1%
Power Rating: 2
W
1 F = Functional, 0 = Operational, P = Performance
2 Only required if you are testing wiihout a controller.
