10
OUTPUT 70911; ":LIST:FREQ:STAR 1000,500,2000,900,3000"
20
OUTPUT 70911; ":LIST:FREQ:STOP 3000,10000,4000,10000,5000"
30
OUTPUT 70911; ":LIST:FREQ:MARK 2000,200,3000,500,4000"
40
OUTPUT 70911; I1:LIST:FREQ:MARK:STAT ON,OFF,ON,OFF,ON"
50
OUTPUT 70911; ":LIST:FREQ:SPAC LIN,LOG,LIN,LOG,LIN"
60
OUTPUT 70911; ":LIST:DWELL 1"
70
OUTPUT 70911; ":SWE:RTIM 5"
80
OUTPUT 70911; ":LIST:SEQ (1:5)"
90
OUTPUT 70911; ":FREQ:MODE LIST"
100
OUTPUT 70911; ":INIT:CONT ON"
110
END

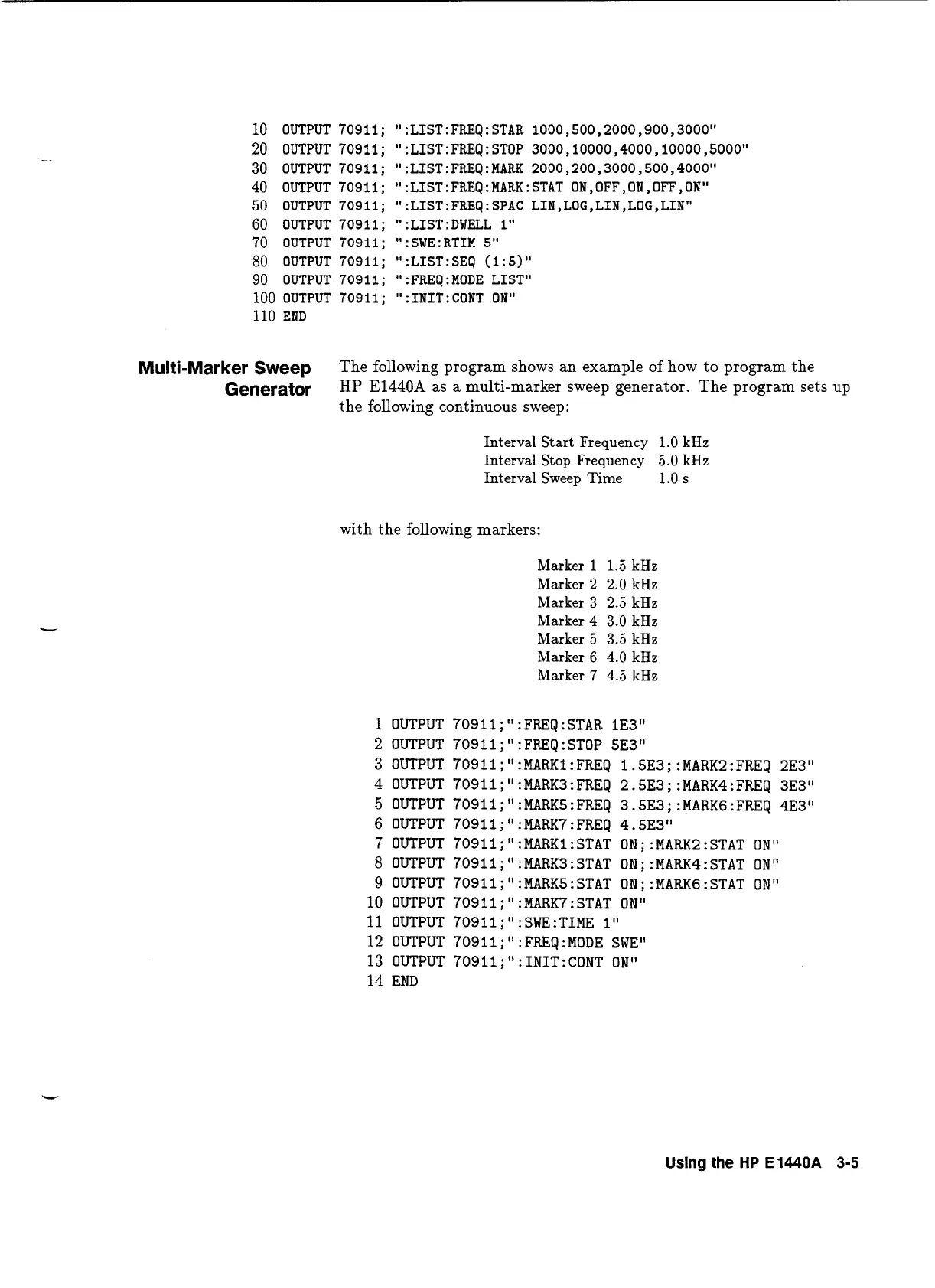

Multi-Marker Sweep
The following program shows an example of how to program the
Generator
HP
E1440A
as a multi-marker sweep generator. The program sets up
the following continuous sweep:
Interval Start Frequency 1.0 kHz
Interval
Stop
Frequency 5.0 kHz
Interval Sweep Time 1.0
s
with the following markers:
Marker
1
1.5 kHz
Marker 2 2.0 kHz
Marker 3 2.5 kHz
Marker 4 3.0 kHz
Marker 5 3.5 kHz
Marker
6
4.0 kHz
Marker 7 4.5 kHz
1
OUTPUT 70911
;
It
:
FREQ
:
STAR 1E3"
2
OUTPUT 709 11
;
It
:
FREQ
:
STOP 5E3"
3
OUTPUT 70911;":MARKl:FREQ l.SE3;:MARK2:FREQ 2E3"
4
OUTPUT 70911;":MARK3:FREQ 2.5E3;:MARK4:FREQ 3E3"
5
OUTPUT 7091l;":MARKS:FREQ 3.5E3;:MARKG:FREQ 4E3"
6
OUTPUT 70911;":MARK7:FREQ 4.5E3"
7
OUTPUT 70911;":MARKl:STAT ON;:MARK2:STAT
ON"
8
OUTPUT 70911;":MARK3:STAT ON;:MARK4:STAT
ON"
9
OUTPUT 70911;":MARK5:STAT 0N;:MARKG:STAT
ON"
10
OUTPUT 709 11
;
"
:
MARK7
:
STAT ON"
11
OUTPUT 70911;":SWE:TIME 1"
12
OUTPUT 7091 1
;
"
:
FREQ :MODE SWE"
13
OUTPUT 70911
;
"
:
INIT
:
CONT ON"
14
END
Using
the
HP
E1440A
3-5
