HP 75000 SERIES C - HP E1440 A Front Panel

Front Panel
Connections

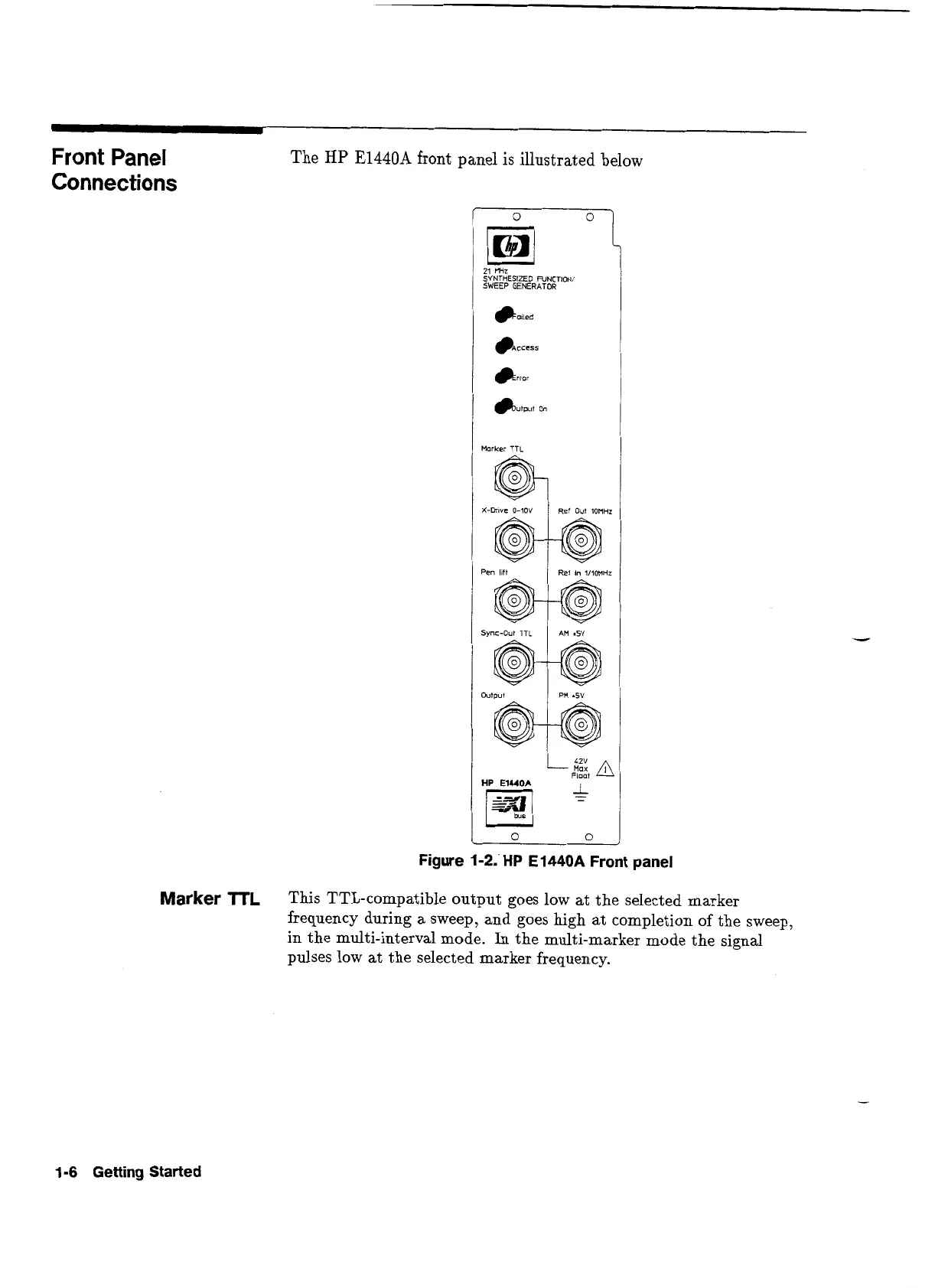

The HP E1440A front panel is illustrated below
Faled
Access
Error
~utput On
0
21 MHz
SYNTHESIZED PJNCTIONI
SWEEP GENERATOR
Wrker TTL
@
(-Dnve 0-10V
@
'en lift
wc-Out TTL
@
utput
@
IP E1440A
W]
,-.
Ref Out lotiHz
@
Ref In 11lOMHr
@
@
@
- 6%
Float
i -
Figure 1-2.'HP E1440A Front panel
Marker TTL
This TTL-compatible output goes low at the selected marker
frequency during a sweep, and goes high at completion of the sweep,
in the multi-interval mode.
In the multi-marker mode the signal
pulses low at the selected marker frequency.
1-6 Getting Started
