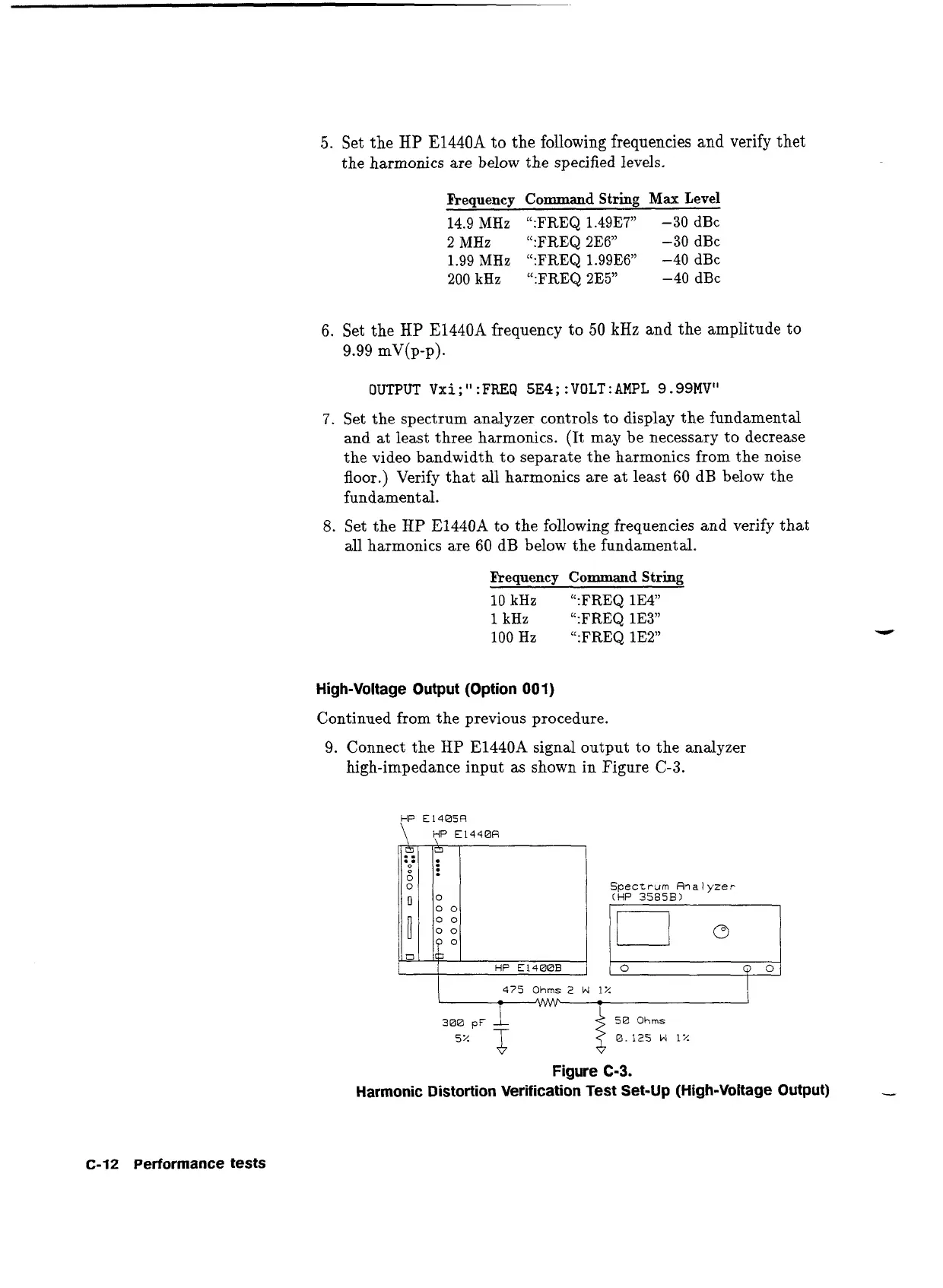

Set the HP E1440A to the following frequencies and verify thet
the harmonics are below the specified levels.
Frequency Command String Max Level
14.9 MHz ll:FREQ 1.4937" -30 dBc
2 MHz ":FREQ 2E6" -30 dBc
1.99 MHz ":FREQ 1.9936" -40
dBc
200 kHz ":FREQ 2E5" -40 dBc
Set the HP E1440A frequency to 50 kHz and the amplitude to
9.99 mV(p-p).
OUTPUT Vxi;":FREQ SE4;:VOLT:AMPL 9.99MV1'
Set the spectrum analyzer controls to display the fundamental
and at least three harmonics. (It may be necessary to decrease
the video bandwidth to separate the harmonics from the noise
floor.) Verify that all harmonics are at least
60 dB below the
fundamental.
Set the HP
E1440A to the following frequencies and verify that
all harmonics are
60 dB below the fundamental.
Frequency Command String
10 kHz ll:FREQ 1E4"
1 kHz ":FREQ 1E3"
100 Hz ":FREQ 1E2"
High-Voltage Output (Option 001)
Continued from the previous procedure.
9. Connect the HP E1440A signal output to the analyzer
high-impedance input as shown
in Figure C-3.
Spectrum Rnalyzer
(HP 3585B)
I
475 Ohms 2 W 1%
- -
T 'VVW' T
300 pF 1 50 Ohms
0.125 W 1%
Figure C-3.
Harmonic Distortion Verification Test Set-Up (High-Voltage Output)
-
C-12 Performance tests
