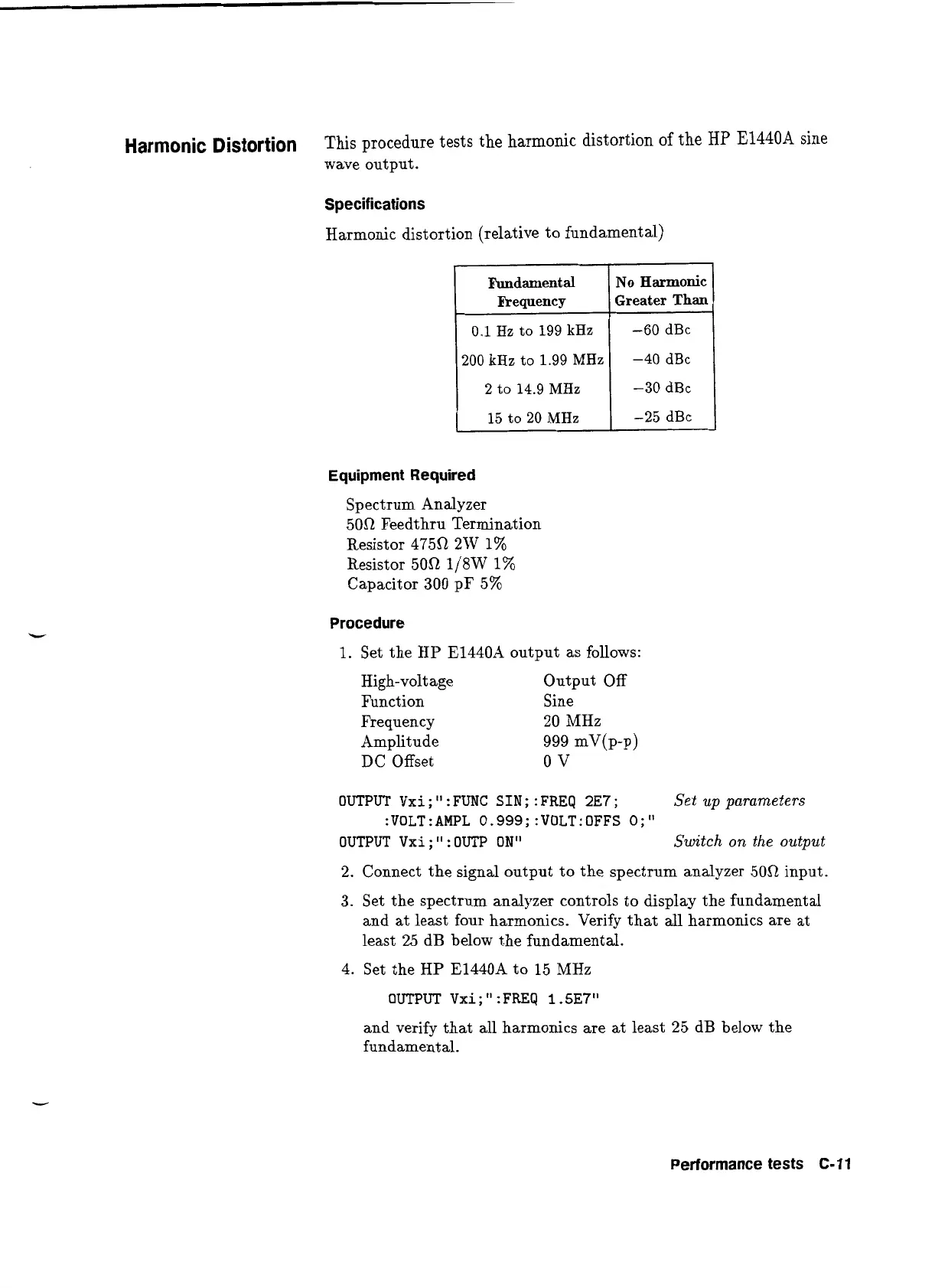

Harmonic Distortion
This procedure tests the harmonic distortion of the HP E1440A sine
wave output.
Specifications
Harmonic distortion (relative to fundamental)
1 0.1 Hz to 199 kHz 1 -60 dBc 1
Fundament a1
Fkequency
1200 kHz to 1.99 MHz 1 -40 dBc 1
No Harmonic
Greater Than
1 2 to 14.9 MHz ( -30 dBc 1
Equipment Required
I
Spectrum Analyzer
50R Feedthru Termination
Resistor
475Q 2W 1%
Resistor 50R 1/8W 1%
Capacitor 300 pF 5%
15 to 20 MHz
Procedure
-25 dBc
1. Set the HP E1440A output as follows:
High-voltage Output Off
Function
Sine
Frequency
20 MHz
Amplitude
999 mV(p-p)
DC Offset
0 V
OUTPUT Vxi;I1:FUNC S1N;:FREq 2E7;
Set up parameters
:VOLT:AMPL 0.999;:VOLT:OFFS 0;"
OUTPUT Vxi
; " : OUTP ON"
Switch on the output
2. Connect the signal output to the spectrum analyzer 50R input.
3. Set the spectrum analyzer controls to display the fundamental
and at least four harmonics. Verify that
all harmonics are at
least
25 dB below the fundamental.
4. Set the HP E1440A to 15 MHz
OUTPUT Vxi;":FREq 1.5E7"
and verify that all harmonics are at least 25 dB below the
fundamental.
Performance tests C-1 1
