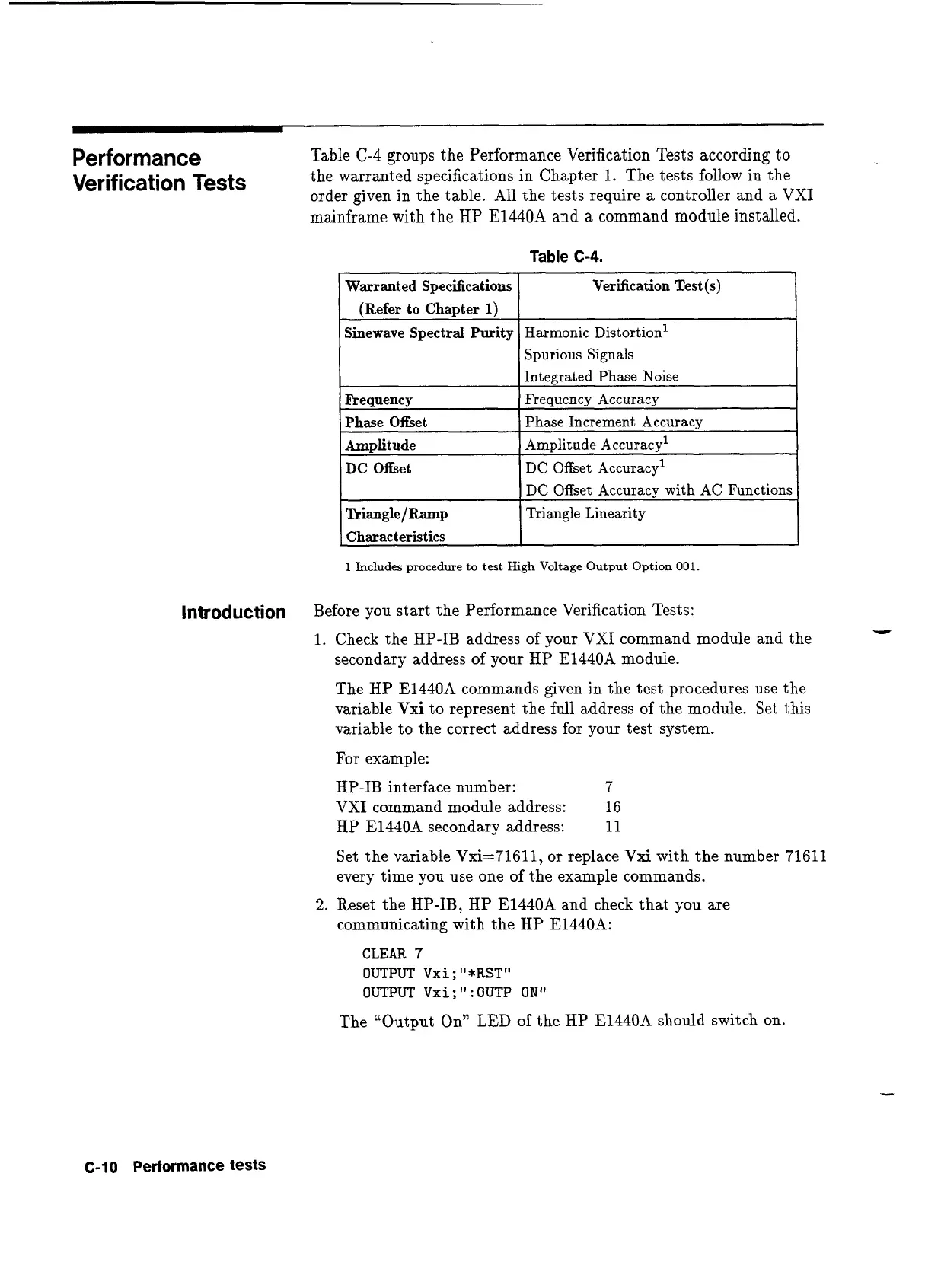

Performance
Table C-4 groups the Performance Verification Tests according to
Verification Tests
the warranted specifications in Chapter 1. The tests follow in the
order given in the table. All the tests require a controller and a VXI
mainframe with the HP E1440A and a command module installed.
Warranted Specifications
Table C-4.
Verification Test (s)
Harmonic is tort ion'
Spurious Signals
Integrated Phase Noise
Frequency Accuracy
Phase Increment Accuracv
Triangle Linearity
1 Includes procedure to test High Voltage Output Option 001.
Infroduction
Before you start the Performance Verification Tests:
v
1. Check the HP-IB address of your VXI command module and the
secondary address of your HP E1440A module.
The HP E1440A commands given in the test procedures use the
variable Vxi to represent the full address of the module. Set this
variable to the correct address for your test system.
For example:
HP-IB interface number:
7
VXI command module address: 16
HP E1440A secondary address:
11
Set the variable Vxi=71611, or replace Vxi with the number 71611
every time
you use one of the example commands.
2. Reset the HP-IB, HP E1440A and check that you are
communicating with the HP E1440A:
CLEAR 7
OUTPUT Vxi;"*RST"
OUTPUT Vxi;":OUTP ONu
The "Output On" LED of the HP E1440A should switch on.
C-10 Performance tests
