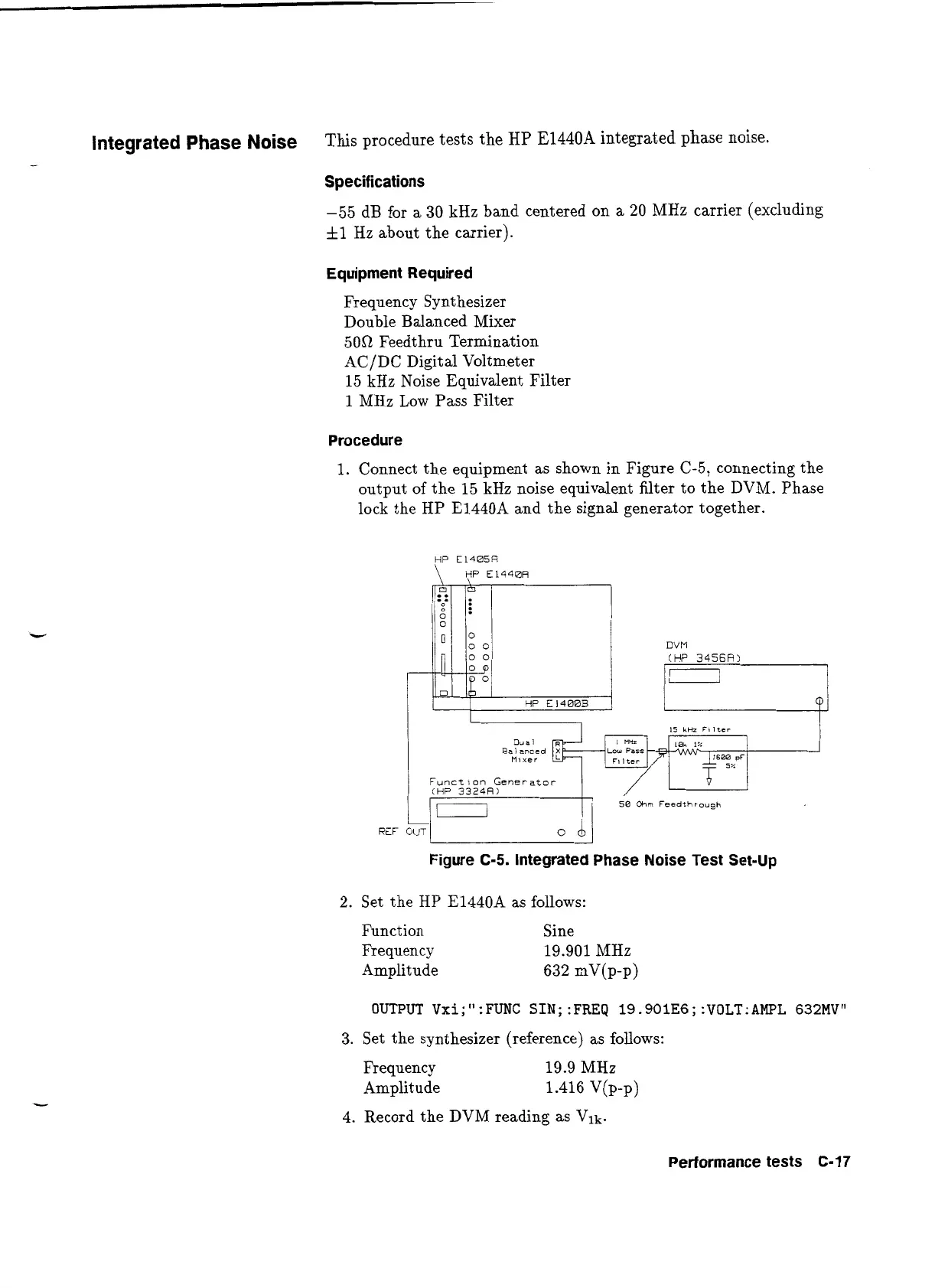

Integrated Phase Noise
This procedure tests the HP E1440A integrated phase noise.
Specifications
-55 dB for a 30 kHz band centered on a 20 MHz carrier (excluding
f 1 Hz about the carrier).
Equipment Required
Frequency Synthesizer
Double Balanced Mixer
50R Feedthru Termination
AC/DC Digital Voltmeter
15
kHz Noise Equivalent Filter
1 MHz Low Pass Filter
Procedure
1. Connect the equipment as shown in Figure C-5, connecting the
output of the 15
kHz noise equivalent filter to the DVM. Phase
lock the
HP E1440A and the signal generator together.
1 DVM
I
15 kHz FI 1 tsr
1 MHz
Lou Paso 1
F1 I ~CT
1600 PF
5%
/
Function Generator
fHP 113dR1
> , , , - - - , , . .
50 Ohm Feedthrough
Figure C-5. Integrated Phase Noise Test Set-Up
2. Set the HP E1440A as follows:
Function
Sine
Frequency
19.901
MHz
Amplitude
632 mV(p-p)
OUTPUT Vxi;":FUNC S1N;:FREQ 19.901E6;:VOLT:AMPL 632MV"
3. Set the synthesizer (reference) as follows:
Frequency 19.9
MHz
Amplitude 1.416 V(p-p)
4. Record the DVM reading as Vlk.
Performance tests C-17
