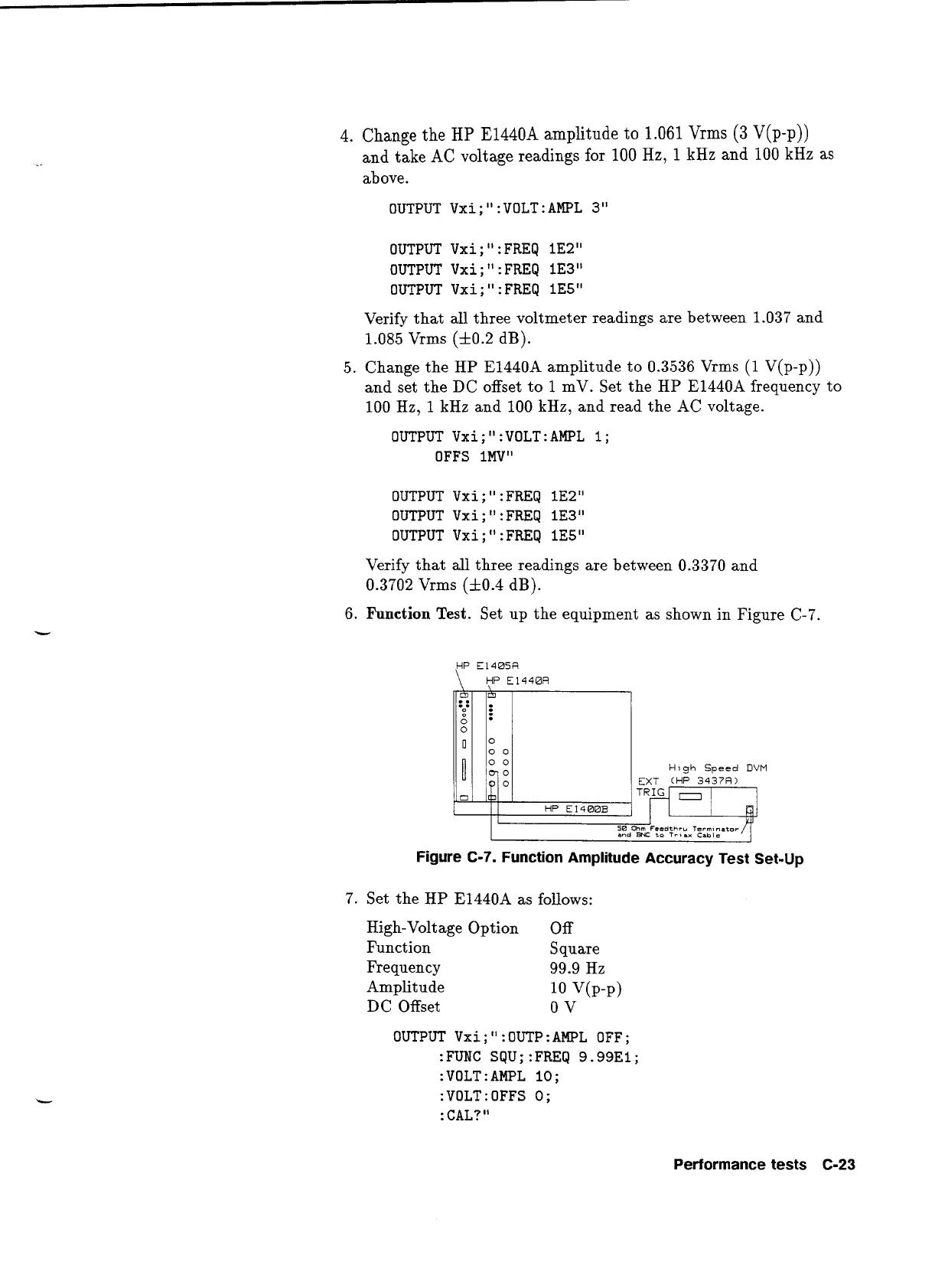

4. Change the HP E1440A amplitude to 1.061 Vrms (3 V(p-p))
and take
AC voltage readings for 100 Hz, 1 kHz and 100 kHz as
above.
OUTPUT Vxi ; I' :VOLT : AMPL 3"
OUTPUT Vxi
; I' : FREQ 1E2"
OUTPUT Vxi
; " : FREQ lE3"
OUTPUT Vxi
; " : FREQ 1E5"
Verify that all three voltmeter readings are between 1.037 and
1.085 Vrms (f 0.2 dB).
5. Change the HP E1440A amplitude to 0.3536 Vrms (1 V(p-p))
and set the
DC offset to 1 mV. Set the HP E1440A frequency to
100 Hz, 1 kHz and 100 kHz, and read the AC voltage.
OUTPUT Vxi ; I' : VOLT : AMPL 1 ;
OFFS 1MV"
OUTPUT Vxi
; : FREQ 1E2"
OUTPUT Vxi;":FREQ lE3"
OUTPUT Vxi
; " : FREQ lE5"
Verify that all three readings are between 0.3370 and
0.3702 Vrms (f 0.4 dB).
6. Function Test. Set up the equipment as shown in Figure C-7
High Speed DVM
~~~~~~~ 1;;hCE4[7R1d
0
HP E1400B
I I
50 Ohm Focdthrv Tcrm~nafor
and BNC to Trt ax Cable
Figure C-7. Function Amplitude Accuracy Test Set-Up
7. Set the HP E1440A as follows:
High-Voltage Option Off
Function
Square
Frequency
99.9 Hz
Amplitude
10 V(P-P>
DC Offset
0 V
OUTPUT Vxi;":OUTP:AMPL OFF;
:FUNC SQU;:FREQ 9.99E1;
:VOLT:AMPL 10;
:VOLT:OFFS 0;
: CAL? I'
Performance tests C-23
