HP 75000 SERIES C User Manual

High Speed DVM
EXT (HP 3437R)

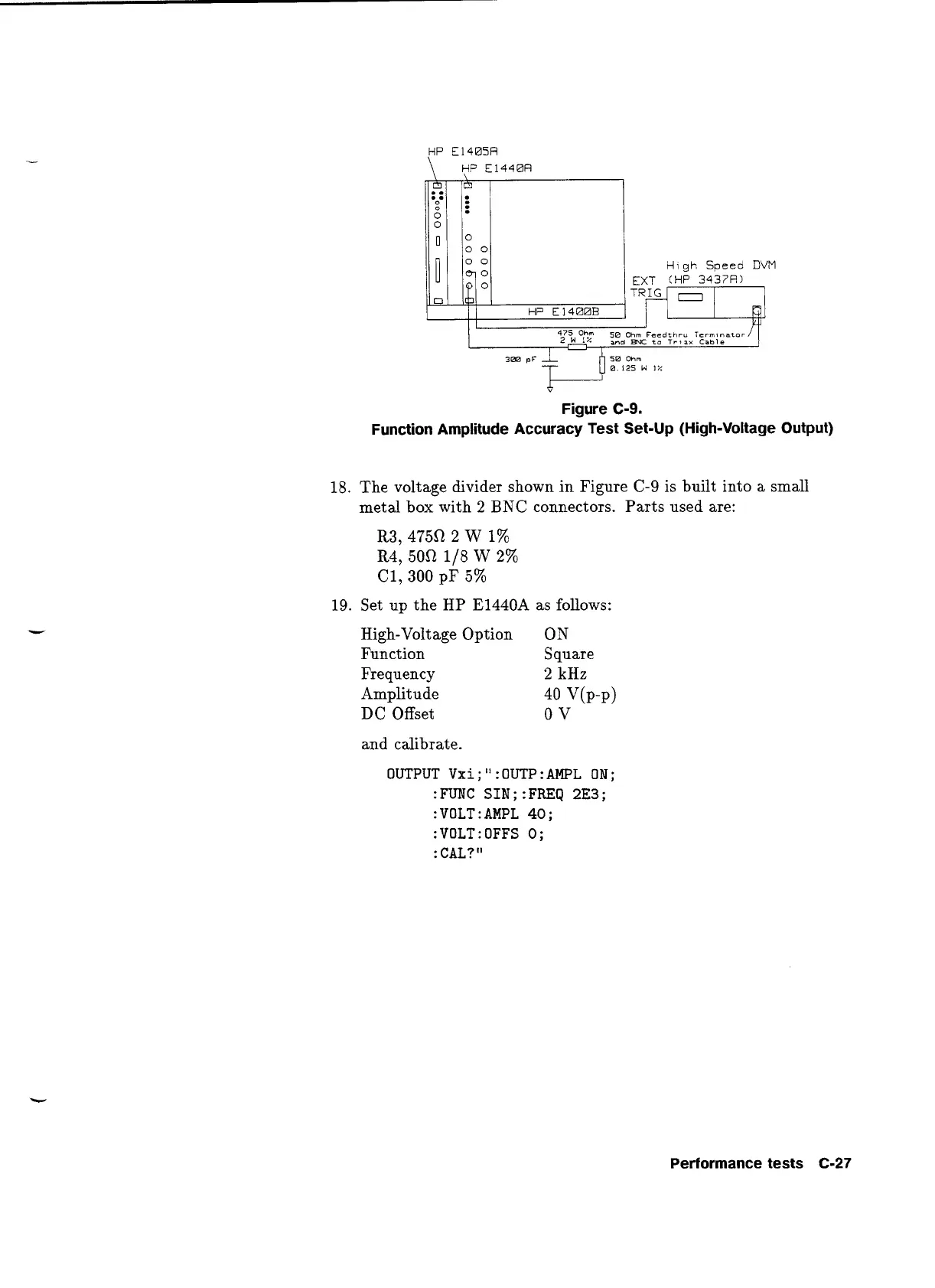

Figure C-9.
Function Amplitude Accuracy Test Set-Up (High-Voltage Output)
18. The voltage divider shown in Figure C-9 is built into a small
metal box with
2 BNC connectors. Parts used are:
19. Set up the HP E1440A as follows:
High-Voltage Option ON
Function
Square
Frequency
2 kHz
Amplitude 40 V(P-P)
DC Offset
0 V
and calibrate.
OUTPUT Vxi ; " : OUTP :AWL ON;
:FUNC S1N;:FREQ 2E3;
:VOLT:AMPL 40;
:VOLT:OFFS 0;
: CAL?
