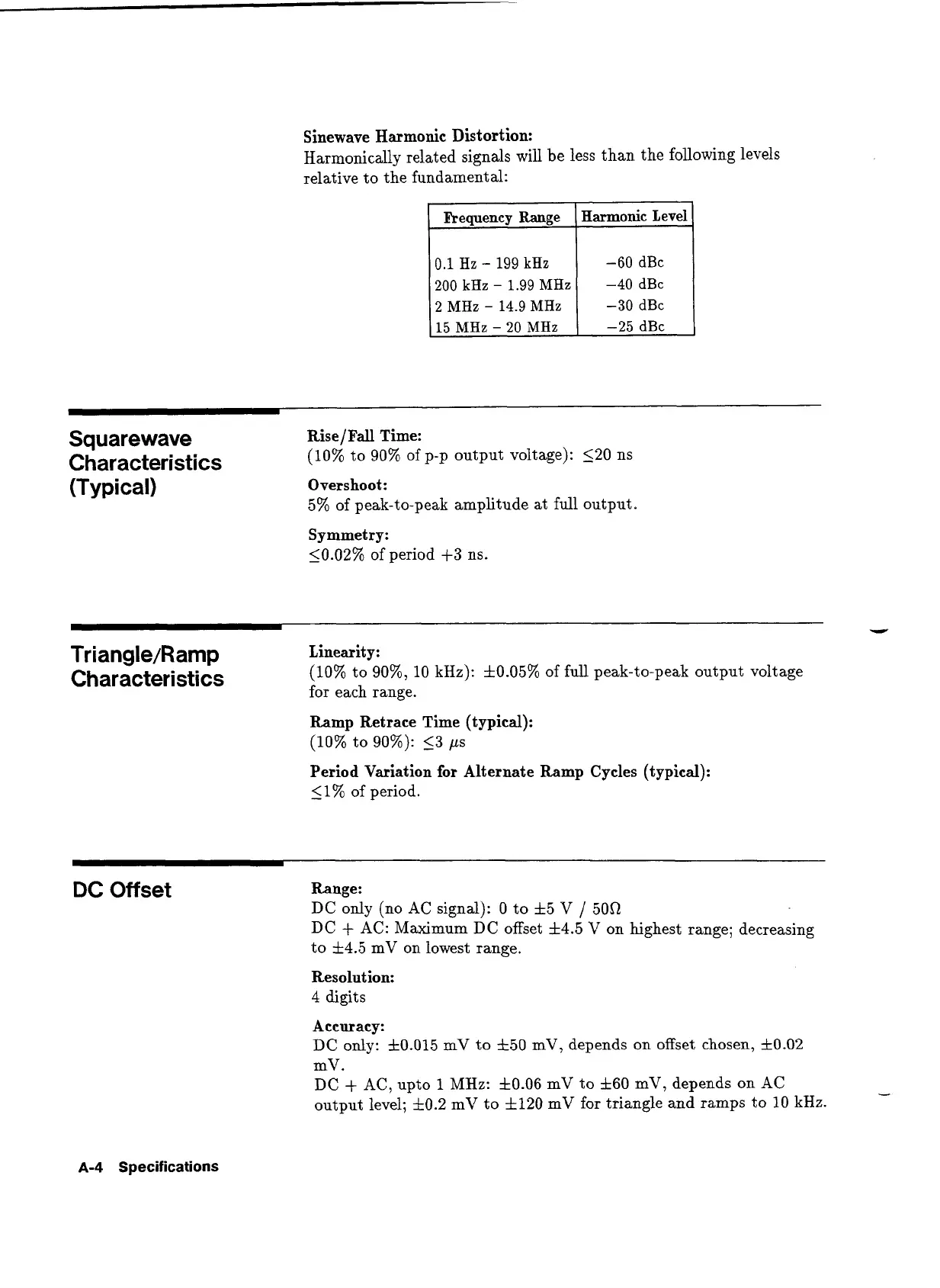

Sinewave Harmonic Distortion:
Harmonically related signals will be less than the following levels
relative to the fundamental:
0.1
Hz
-
199
kHz
-60
dBc
2
MHz
-
14.9 MHz
-30
dBc
Frequency Range
Squarewave
Rise/Fall Time:
Characteristics
(10% to 90% of p-p output voltage): i20 ns
(Typical)
Overshoot:
5% of peak-to-peak amplitude at full output.
Harmonic Level
Symmetry:
50.02% of period
+3
ns.
Triangle/Ramp
Characteristics
Linearity:
(10% to 90%, 10 kHz):
f
0.05% of full peak-to-peak output voltage
for each range.
Ramp Retrace Time (typical):
(10% to 90%):
53
ps
Period Variation for Alternate Ramp Cycles (typical):
51%
of period.
DC Offset
Range:
DC only (no AC signal): 0 to
f
5 V
/
500
DC
+
AC:
Maximum DC offset
f
4.5
V
on highest range; decreasing
to k4.5 mV on lowest range.
Resolution:
4
digits
Accuracy:
DC only:
f
0.015
mV
to *50 mV, depends on offset chosen,
f
0.02
mV.
DC
+
AC, upto
1
MHz:
f
0.06 mV to It60 mV, depends on AC
-
output level;
f
0.2 mV to
f
120 mV for triangle and ramps to 10 kHz.
A-4
Specifications
