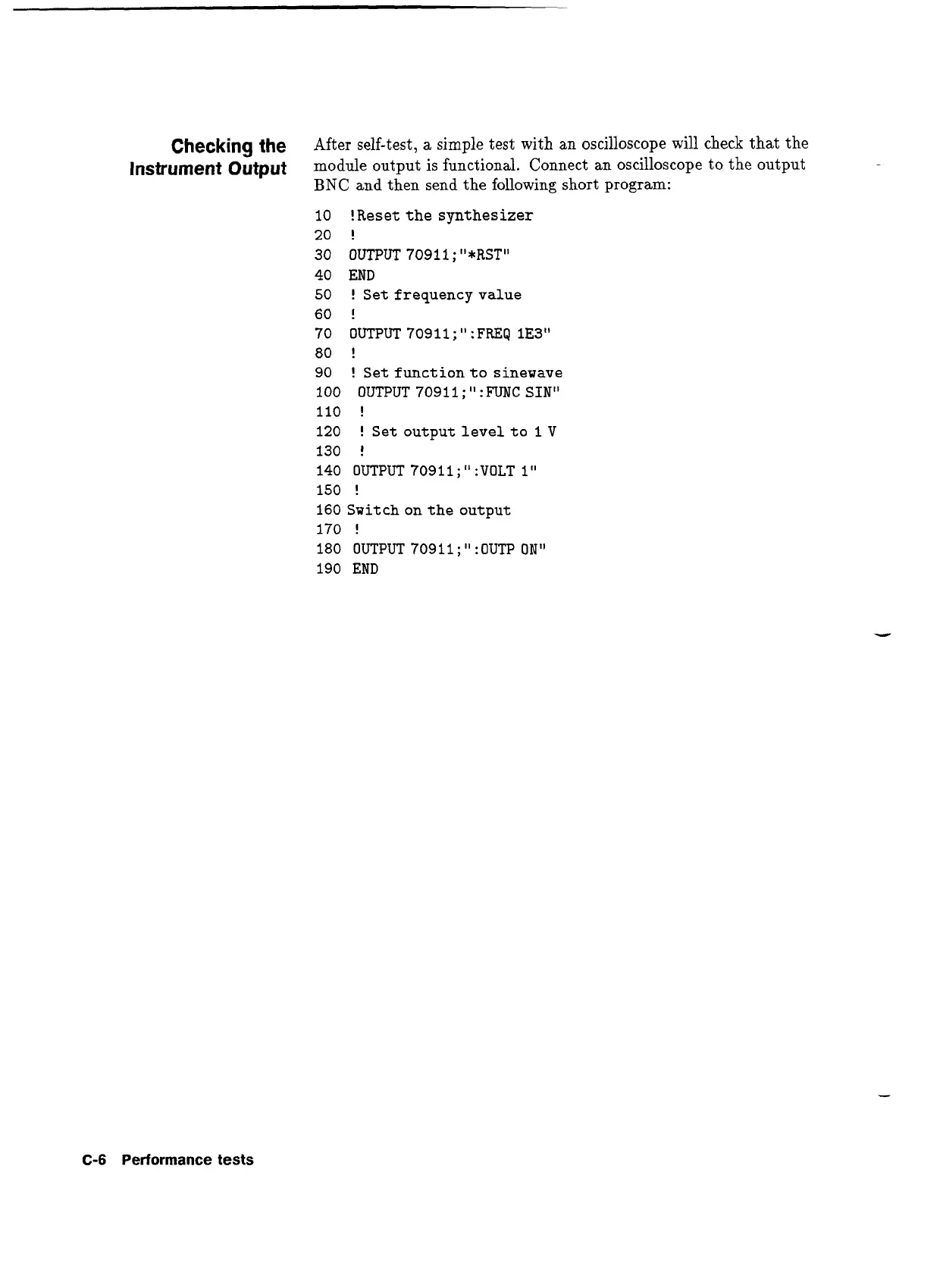

Checking the
Instrument Output
After self-test, a simple test with an oscilloscope
will
check that the
module output is functional. Connect an oscilloscope to the output
BNC
and then send the following short program:
10
!Reset thesynthesizer
20
!
30
OUTPUT
7091
1
;
"*RST1'
40
END
50
!
Set frequency value
60
!
70
OUTPUT
709 11
;
"
:
FREQ
1E3"
80
!
90
!
Set function to sinewave
100
OUTPUT
7091 1
;
"
:
FUNC
SIN"
110
!
120
!
Set output level to
1
V
130
!
140
OUTPUT
709 11
;
"
:VOLT
1
l1
150
!
160
Switch on the output
170
!
180
OUTPUT
70911
;
"
:
OUTP
ON"
190
END
C-6
Performance tests
