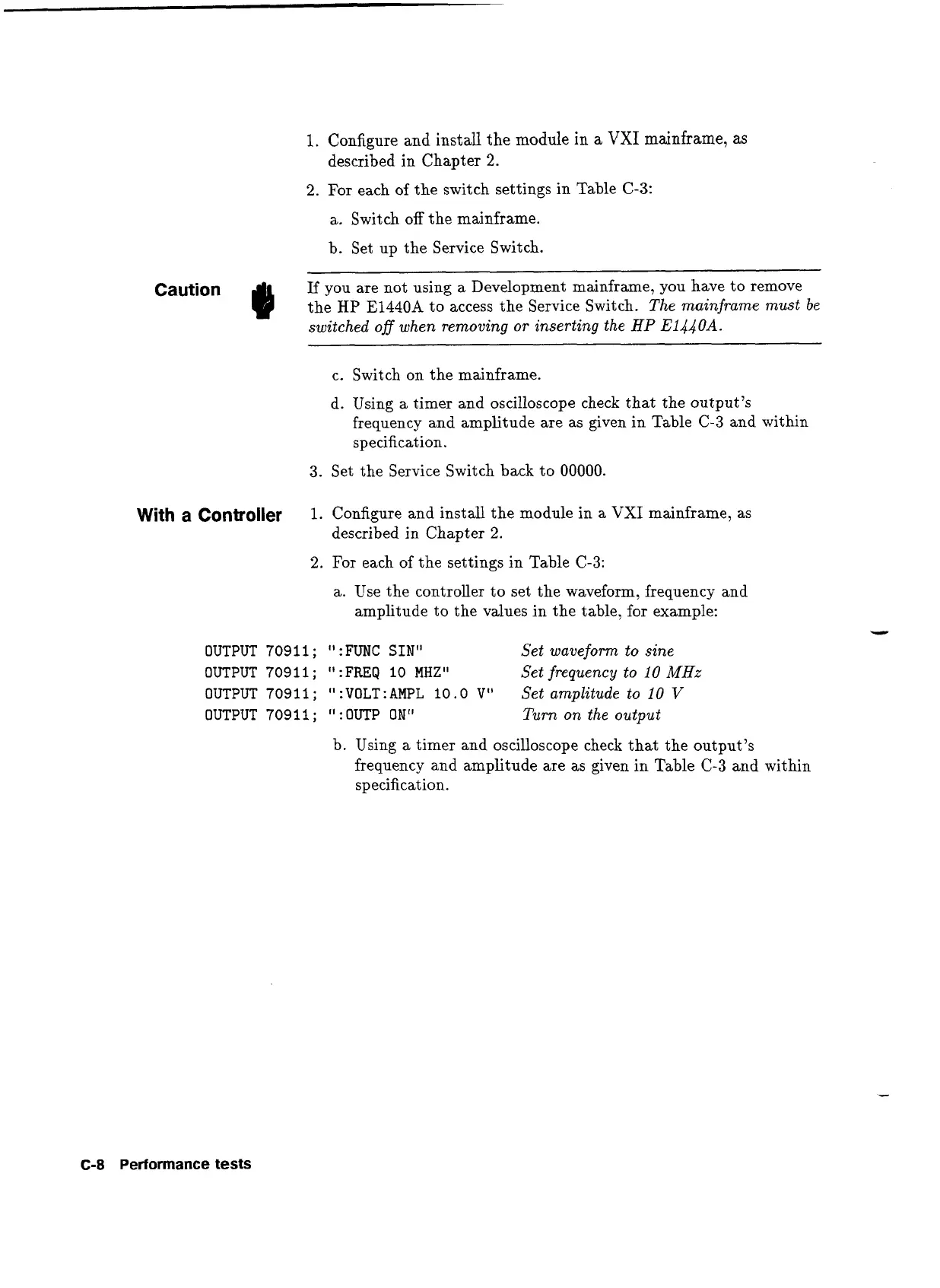

1.
Configure and install the module in a
VXI
mainframe, as
described in Chapter
2.
2.
For each of the switch settings in Table C-3:
a. Switch off the mainframe.
b. Set up the Service Switch.
If
you are not using a Development mainframe, you have to remove
Caution
the
HP
E1440A
to access the Service Switch.
The mainframe must
be
switched off when removing or inserting the
HP
ElddOA.
c. Switch on the mainframe.
d. Using a timer and oscilloscope check that the output's
frequency and amplitude are as given in Table C-3 and within
specification.
3. Set the Service Switch back to
00000.
With
a
Controller
1.
Configure and install the module in a
VXI
mainframe, as
described
in
Chapter
2.
2.
For each of the settings in Table C-3:
a. Use the controller to set the waveform, frequency and
amplitude to the values in the table, for example:
OUTPUT 70911; ":FUNC SIN"
Set waveform to sine
OUTPUT 709
11
;
I'
:
FREQ 10
MHz"
Set frequency to
10
MHz
OUTPUT 70911
;
"
:VOLT
:
AMPL 10.0
V"
Set amplitude to 10
V
OUTPUT 7091
1
;
"
:
OUTP
ON"
Turn on the output
b. Using a timer and oscilloscope check that the output's
frequency and amplitude are as given in Table
C-3
and within
specification.
C-8 Performance
tests
