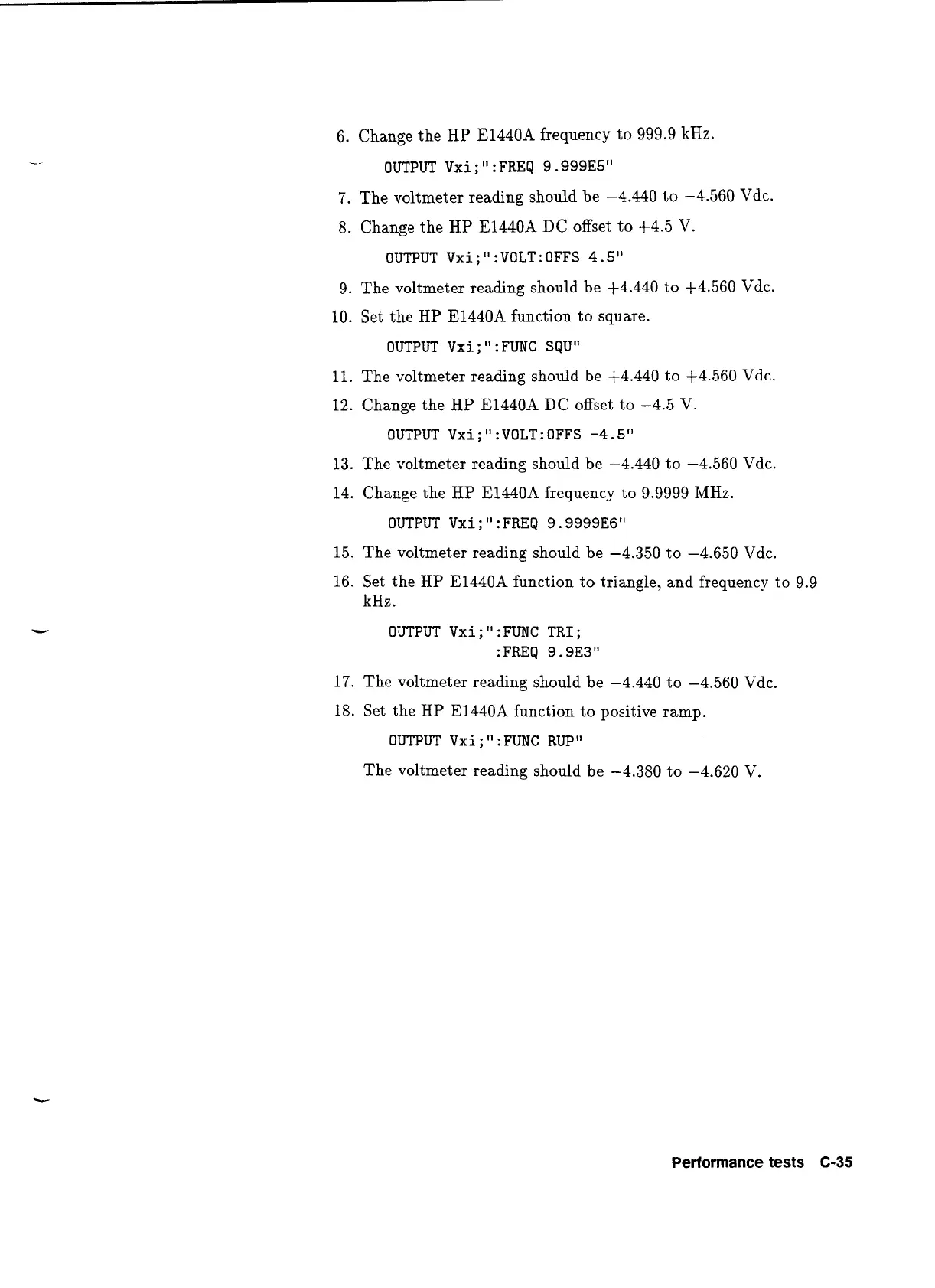

6. Change the HP E1440A frequency to 999.9 kHz.
OUTPUT Vxi ; : FREQ 9.999E5"
7. The voltmeter reading should be -4.440 to -4.560 Vdc.
8. Change the HP E1440A DC offset to $4.5 V.
OUTPUT Vxi ; " :VOLT : OFFS 4.5"
9. The voltmeter reading should be +4.440 to $4.560 Vdc.
10. Set the HP E1440A function to square.
OUTPUT Vxi ; I' : FUNC SQU"
11. The voltmeter reading should be +4.440 to f4.560 Vdc.
12. Change the HP E1440A DC offset to -4.5 V.
OUTPUT Vxi ; 'I :VOLT : OFFS -4.5"
13. The voltmeter reading should be -4.440 to -4.560 Vdc.
14. Change the HP E1440A frequency to 9.9999 MHz.
OUTPUT Vxi ; 'I : FREQ 9.9999E6"
15. The voltmeter reading should be -4.350 to -4.650 Vdc.
16. Set the HP E1440A function to triangle, and frequency to 9.9
kHz.
OUTPUT Vxi ; " : FUNC TRI ;
: FREQ 9.9E3"
17. The voltmeter reading should be -4.440 to -4.560 Vdc.
18. Set the HP E1440A function to positive ramp.
OUTPUT Vxi ; I' : FUNC RUP I'
The voltmeter reading should be -4.380 to -4.620 V.
Performance tests C-35
