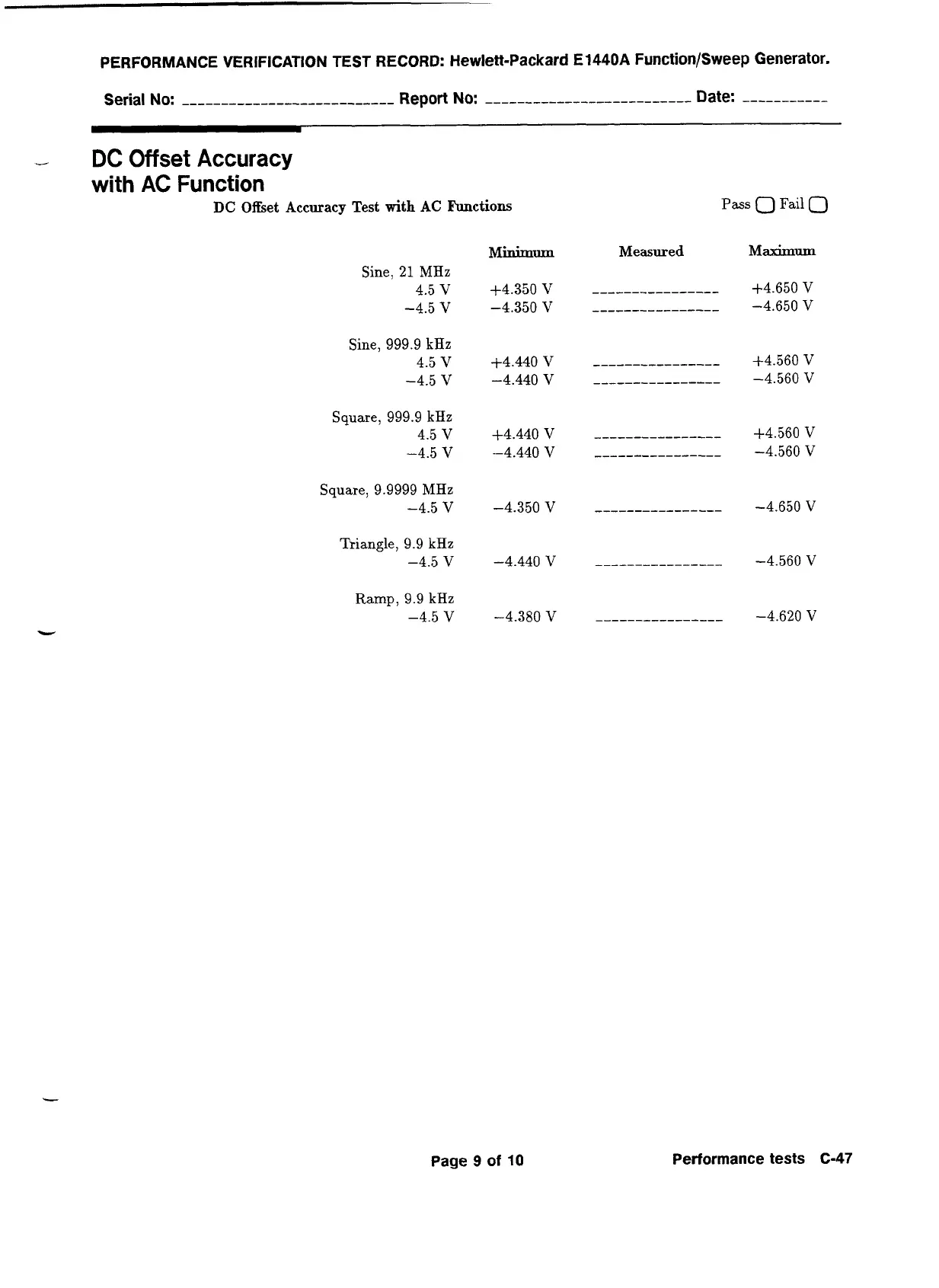

PERFORMANCE VERIFICATION TEST RECORD: Hewlett-Packard E1440A Function/Sweep Generator.
- DC Offset Accuracy
with AC Function
DC Offset Accuracy Test with AC Functions
Sine, 21 MHz
4.5
v
-4.5 V
Sine, 999.9 kHz
4.5
V
-4.5 v
Square, 999.9 kHz
4.5
v
-4.5 v
Square, 9.9999 MHz
-4.5
v
Triangle, 9.9 kHz
-4.5
v
Ramp, 9.9 kHz
-4.5
v
Minimum
+4.350 V
-4.350 V
+4.440 V
-4.440 V
+4.440 V
-4.440 V
-4.350 V
-4.440 V
-4.380 V
Page 9 of 10
Measured
Pass 0 Fail 0
Maximum
f 4.650 V
-4.650 V
-t-4.560 V
-4.560 V
$4.560 V
-4.560 V
-4.650 V
-4.560 V
-4.620 V
Performance tests C-47
