System Measurements
Making System Measurements
16:88:81 NOU 23, 1993
DhTA FILE: 0 PhGE W: 3
~~
. . . . . . . . . . . . . . . . . . kH.? . . . . . . .. . . . . ?.?.E?.i . . . . 23!5.?~ . . . . . . . . . . . . . . . i . . . . . . . . . . . . . . . i . . . . . . . . . . . . . . .
HUM % 1.5 I 2.3 :
. . . . . . . . . . . . . . . . . . . . . . . . . .
CSO dB
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . :'.............. !..
- :
C/N dB
LN, FLD
. . . . ...! . . . . . . . . . . . . I...:..: . . . . . . . . :..
CLDI ns
_ ; _ :
DO %
_ j _ j
.............!. ..............
............. . ...............
DP de8
_ ; _ ;
LN, FLU, PTRN -,-I- : ->->- :
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FREQ RESP ?dB - i - j
LN, FLD, PTRN -t-j-
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . :...Y..Y..:..: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FN OEU fkHr 19.8 j25.1 j
NEXT
PhGE
PREU
PAGE
GOT0
PAGE
PRINT
REPORT
STORE
TO CARD
Main
Menu
RT

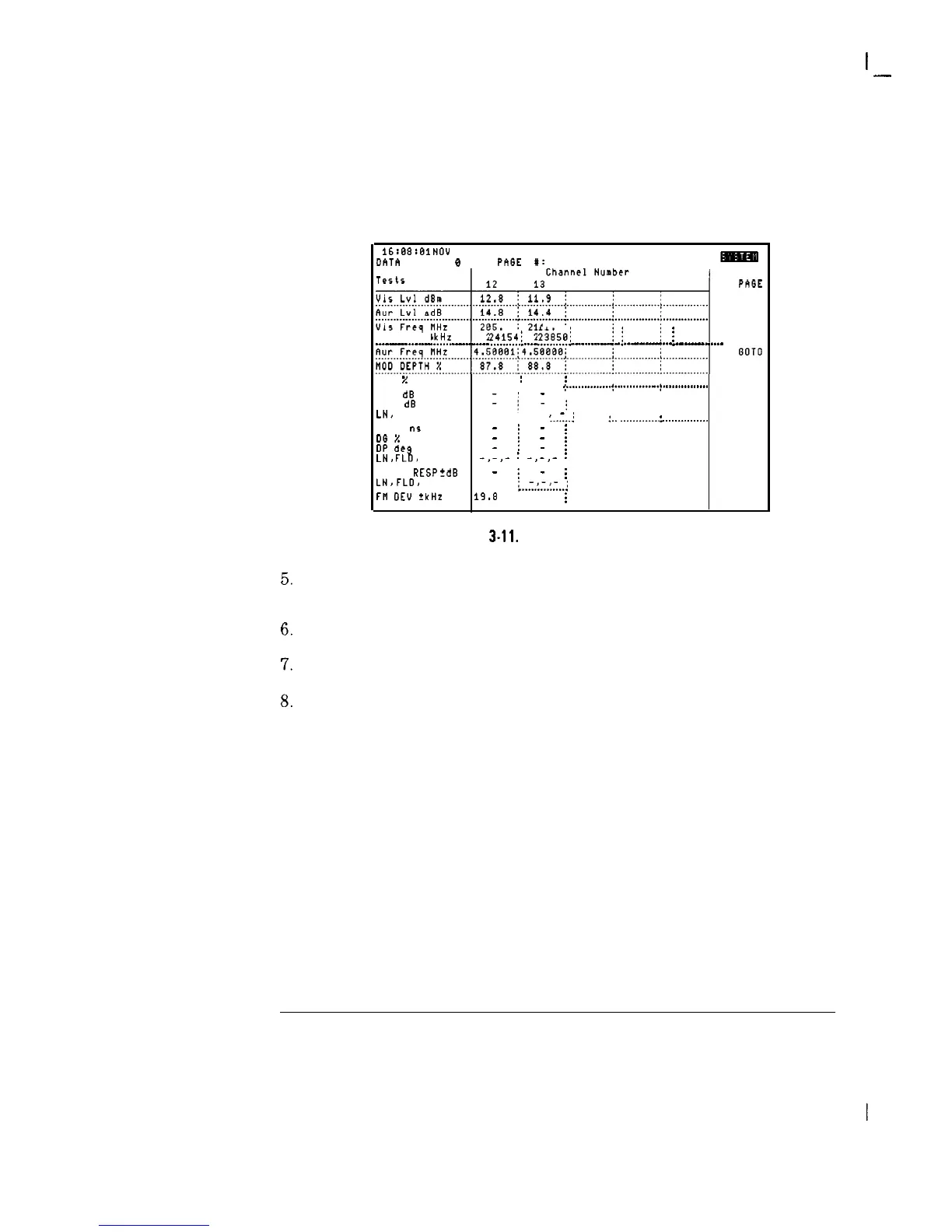

Figure 3-11. Tests Results Screen-Page 3
5. Press NEXT PAGE to view the next page or PREV PAGE to view the
previous page.
6. Press GOT0 PAGE to go to a specified page of test results.
7. Press PRINT REPORT to print the test results.
8. Press STORE TO CARD to store test data to a formatted RAM card.
3-17
