Removing bezel blanks
On some models, there may be bezel blanks covering the optical drive bays. You must remove the bezel blank
before installing an optical drive. To remove a bezel blank:
1. Prepare the computer for disassembly (Preparation for disassembly on page 19)
2. Remove the access panel (Access panel on page 20)
3. Remove the front bezel (Front bezel on page 21)

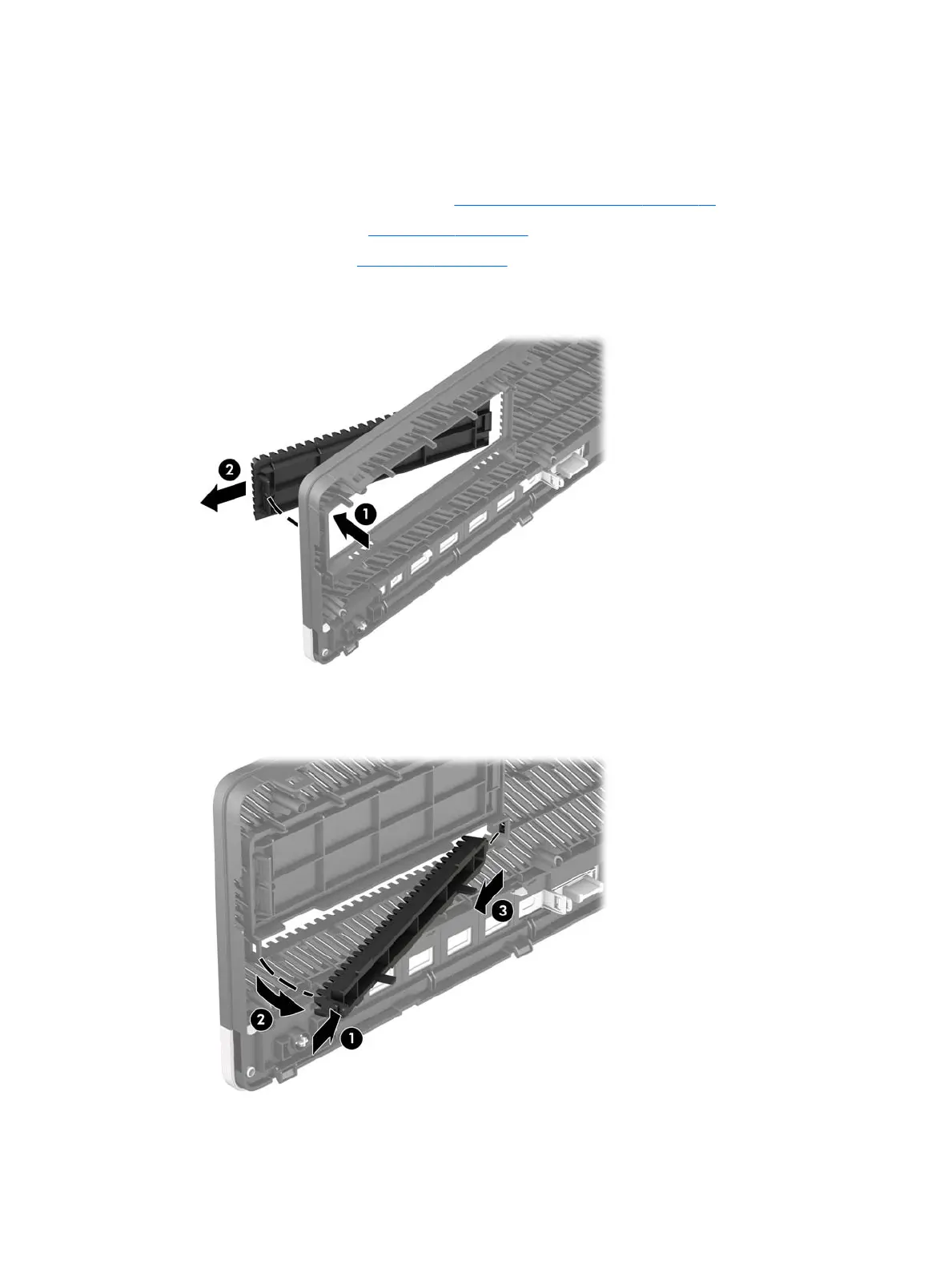

4. To remove a 5.25-inch optical drive bezel blank, press inward on the two tabs on the right side of the
blank
(1), and then rotate the blank o the front bezel (2).
To remove a slim optical drive bezel blank, press inward on the tab on the right side of the blank (1), and
then rotate the blank away from the front bezel (2) and slide the left side of the blank out of the slot on
the front bezel (3).
Removing bezel blanks 23
