HP EliteDesk 800 G3 TWR User Manual

Fan sink
Two fan sinks are oered – one for 95W processors and one for 65W processors.
CAUTION: The bond between the fan sink and the processor may be very tight.
If the computer will power on, before removing the fan sink, turn on the computer until it warms the fan sink.
Warming the fan sink lessens the bond between the heat sink and the processor, thereby making separating
them easier.
Make sure not to pull the processor out of the socket when you lift the fan sink, especially if you cannot warm
the fan sink prior to removal. Inadvertently removing the processor can damage the pins.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Loosen the four silver captive Torx T15 screws (1) that secure the fan sink to the system board.
CAUTION: Remove fan sink retaining screws in diagonally opposite pairs (as in an X) to even the
downward forces on the processor. The pins on the socket are very fragile and any damage to them may
require replacing the system board.
4. Disconnect the fan cable from the system board connector labeled CPUFAN (2).

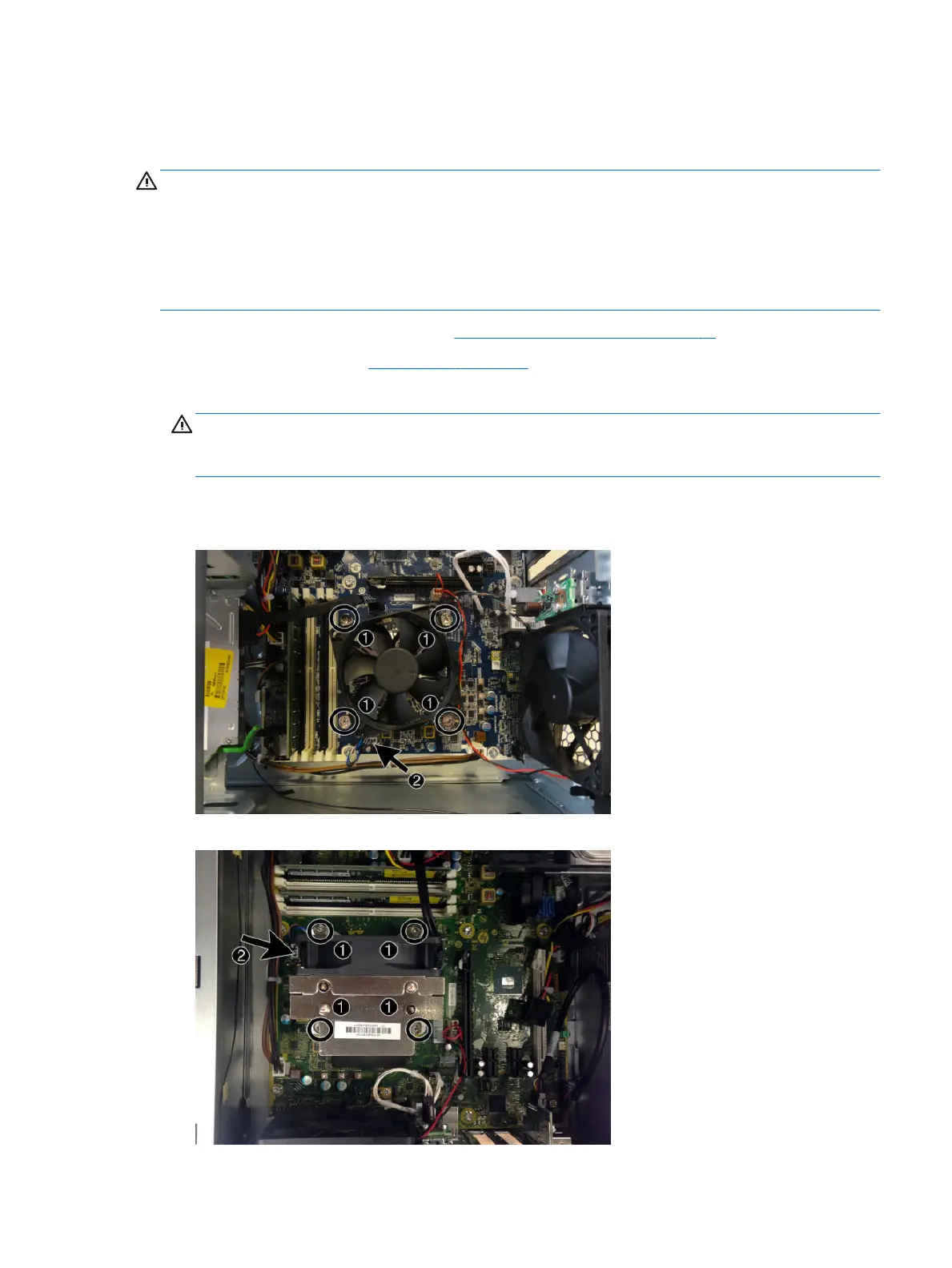

65W processors
95W processors
Fan sink 57

HP EliteDesk 800 G3 TWR Specifications

General

Form Factor	Tower
Processor Options	Intel Pentium, Intel Celeron
Memory	Up to 64 GB DDR4-2400 SDRAM
Storage Options	2.5" HDD/SSD, M.2 SSD
Graphics	Intel HD Graphics 630
Operating System	Windows 10 Pro
Audio	Realtek HD ALC221-VB Audio
Expansion Slots	1 PCIe x16
Ports (Front)	2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x headphone/microphone combo
Ports (Rear)	4 x USB 3.1 Gen 1, 4 x USB 2.0, 1 x VGA, 1 x DisplayPort, 1 x RJ-45, 1 x audio line-out, 1 x audio line-in
Power Supply	250W, up to 92% efficient PSU
Optical Drive	Optional DVD-Writer
Chipset	Intel® Q270
