Removing a 2.5-inch hard drive
1. Prepare the computer for disassembly (Preparation for disassembly on page 19)
2. Remove the access panel (Access panel on page 20)

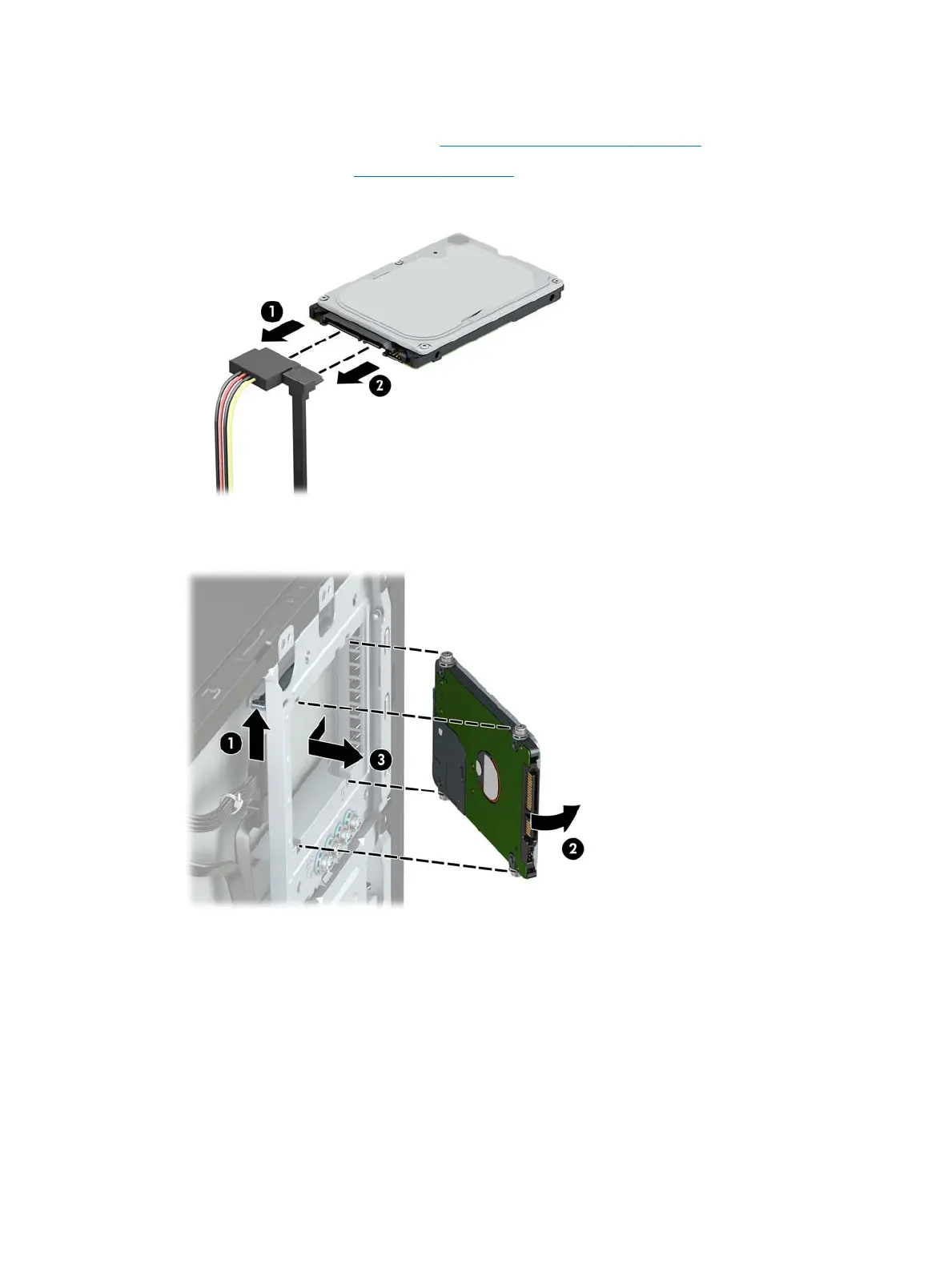

3. Disconnect the power cable (1) and data cable (2) from the rear of the hard drive.
4. Pull the release lever at the rear of the drive outward (1) and pull the rear of the drive outward (2). Then
slide the front of the drive forward until it stops and pull the drive up and out of the drive bay (3).
