HP EliteDesk 800 G3 TWR User Manual

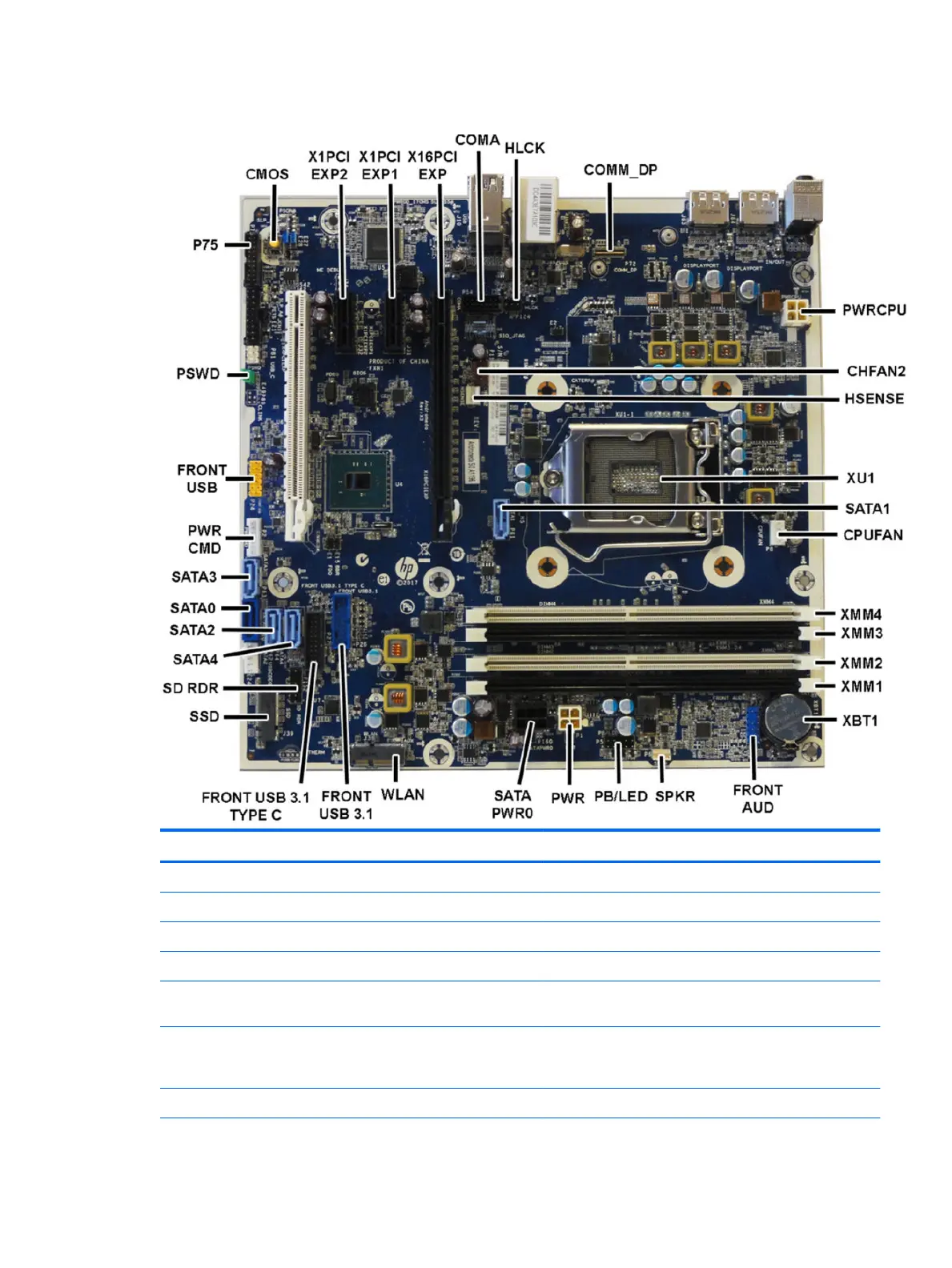

System board callouts
Sys Bd Label Color Component Sys Bd Label Color Component
X4PCIEXP White Expansion card PWR White 6-pin main power
X1PCIEXP2 Black Expansion card SPKR White Speaker
X1PCIEXP1 Black Expansion card FRONT USB3.0 Blue Front I/O/power switch
X16PCIEXP White Expansion card SD RDR Black Card reader
COMB Black Optional second serial
port
EXT Black Extension board
HLCK Black Hood lock SATA3 Light blue Any SATA Device other
than the primary hard
drive
PWRCPU White 4-pin processor power SATA0 Dark blue Primary hard drive
System board 73

HP EliteDesk 800 G3 TWR Specifications

General

Form Factor	Tower
Processor Options	Intel Pentium, Intel Celeron
Memory	Up to 64 GB DDR4-2400 SDRAM
Storage Options	2.5" HDD/SSD, M.2 SSD
Graphics	Intel HD Graphics 630
Operating System	Windows 10 Pro
Audio	Realtek HD ALC221-VB Audio
Expansion Slots	1 PCIe x16
Ports (Front)	2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x headphone/microphone combo
Ports (Rear)	4 x USB 3.1 Gen 1, 4 x USB 2.0, 1 x VGA, 1 x DisplayPort, 1 x RJ-45, 1 x audio line-out, 1 x audio line-in
Power Supply	250W, up to 92% efficient PSU
Optical Drive	Optional DVD-Writer
Chipset	Intel® Q270
