Power supply
For a list of available power supplies, see Computer major components on page 5.
The power supply is secured to the rear of the chassis with three screws. Three cables connect the power
supply to the system board.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the drive cage (Drive cage on page 28).

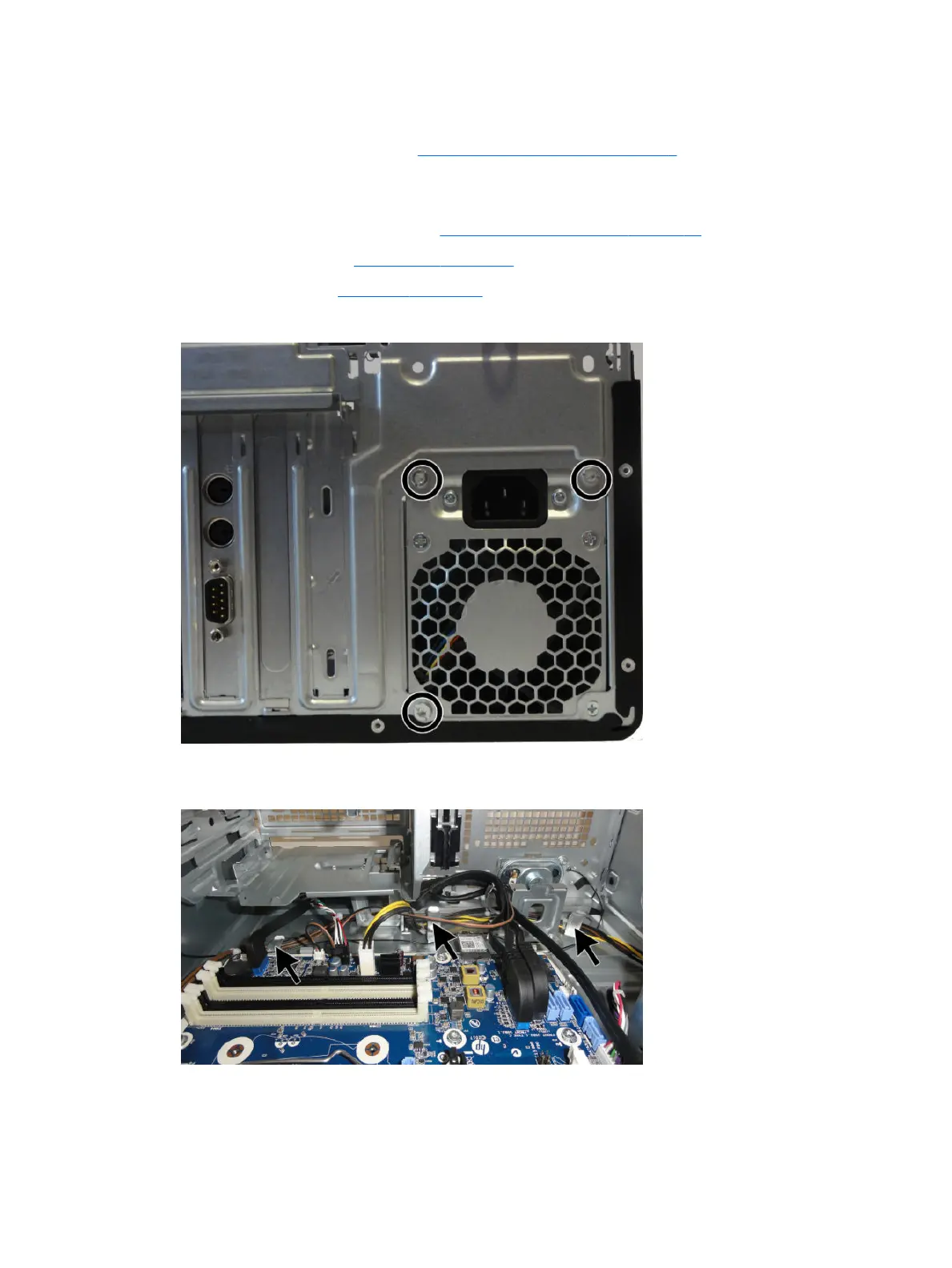

4. Remove the three Torx T15 screws that connect the power supply to the rear of the chassis.
5. From the inside of the chassis, remove the power supply cables from the clips built into the bottom of
the chassis.
6. Disconnect the power supply cables from the following system board connector:
●
PWRCMD
