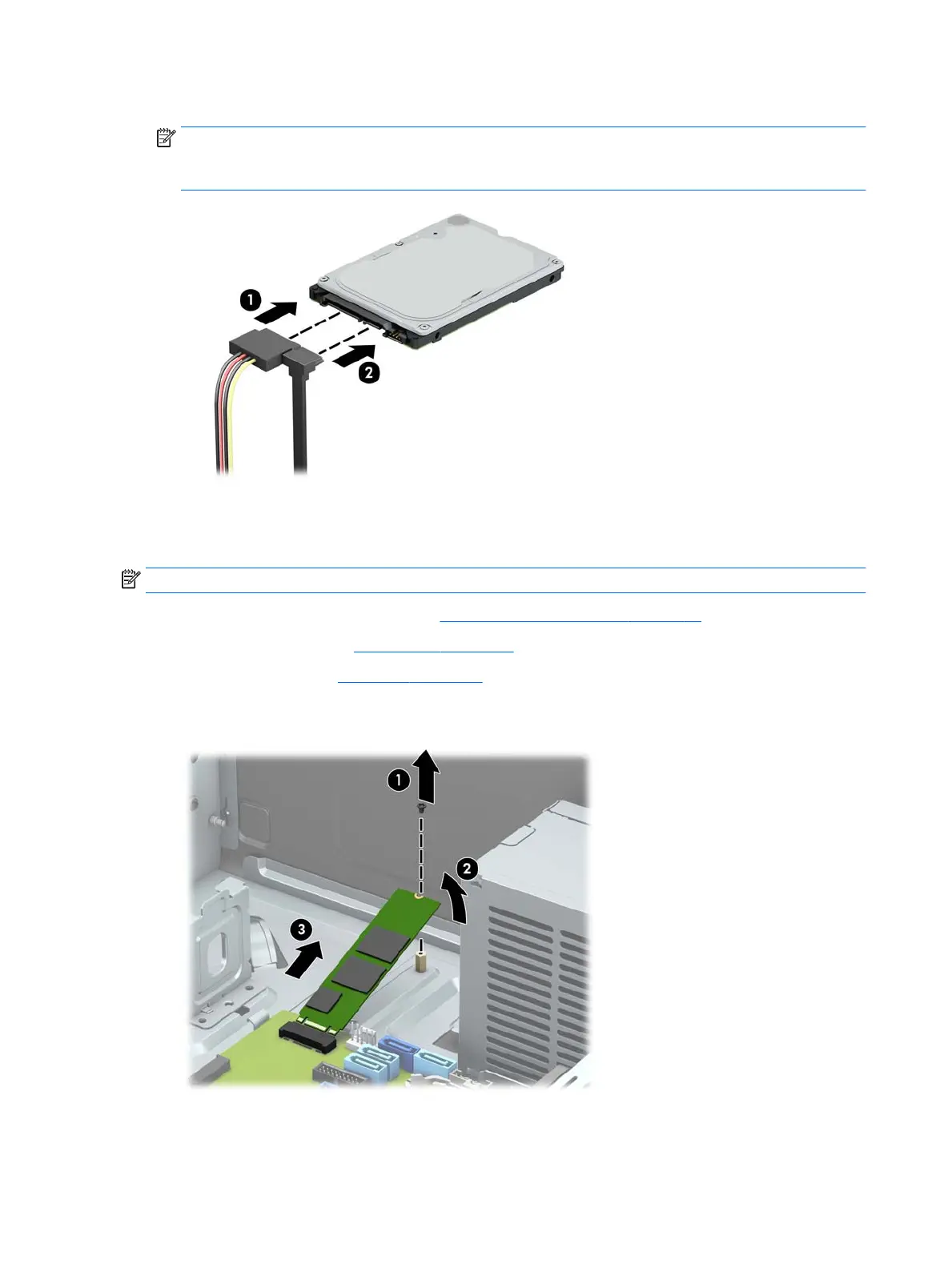

5. Connect the power cable (1) and data cable (2) to the rear of the hard drive.
NOTE: If the 2.5-inch hard drive is the primary drive, connect the other end of the data cable to the
dark blue SATA connector on the system board labeled SATA0. If it is a secondary hard drive, connect the
other end of the data cable to one of the light blue SATA connectors on the system board.
6. Reassemble the computer.
Removing and installing an M.2 SSD storage card
NOTE: The computer supports 2230 and 2280 M.2 SSD cards.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19)
2. Remove the access panel (Access panel on page 20)
3. Remove the drive cage (Drive cage on page 28)
4. To remove an M.2 SSD card, remove the screw that secures the card (1), lift the end of the card up (2),
and then slide the card out of the system board connector (3).
52 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis

HP EliteDesk 800 G3 TWR Specifications

General

Form Factor	Tower
Processor Options	Intel Pentium, Intel Celeron
Memory	Up to 64 GB DDR4-2400 SDRAM
Storage Options	2.5" HDD/SSD, M.2 SSD
Graphics	Intel HD Graphics 630
Operating System	Windows 10 Pro
Audio	Realtek HD ALC221-VB Audio
Expansion Slots	1 PCIe x16
Ports (Front)	2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x headphone/microphone combo
Ports (Rear)	4 x USB 3.1 Gen 1, 4 x USB 2.0, 1 x VGA, 1 x DisplayPort, 1 x RJ-45, 1 x audio line-out, 1 x audio line-in
Power Supply	250W, up to 92% efficient PSU
Optical Drive	Optional DVD-Writer
Chipset	Intel® Q270
