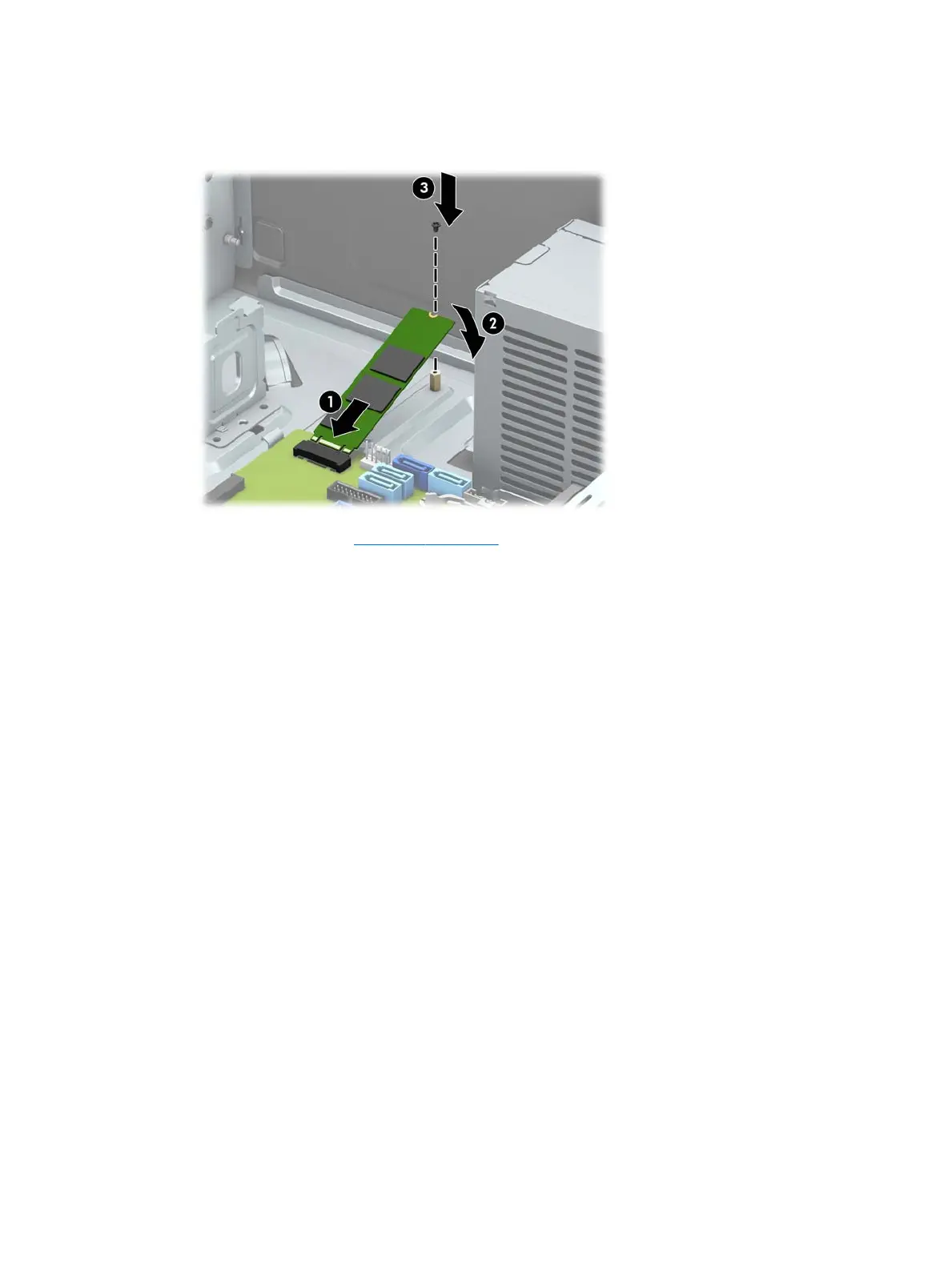

5. To install an M.2 SSD card, slide the pins on the card into the system board connector while holding the
card at approximately a 30° angle (1). Press the other end of the card down (2), and then secure the card
with the screw (3).
6. Replace the drive cage ( Drive cage on page 28) and reassemble the computer.
Drives 53

HP EliteDesk 800 G3 TWR Specifications

General

Form Factor	Tower
Processor Options	Intel Pentium, Intel Celeron
Memory	Up to 64 GB DDR4-2400 SDRAM
Storage Options	2.5" HDD/SSD, M.2 SSD
Graphics	Intel HD Graphics 630
Operating System	Windows 10 Pro
Audio	Realtek HD ALC221-VB Audio
Expansion Slots	1 PCIe x16
Ports (Front)	2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x headphone/microphone combo
Ports (Rear)	4 x USB 3.1 Gen 1, 4 x USB 2.0, 1 x VGA, 1 x DisplayPort, 1 x RJ-45, 1 x audio line-out, 1 x audio line-in
Power Supply	250W, up to 92% efficient PSU
Optical Drive	Optional DVD-Writer
Chipset	Intel® Q270
