Hood sensor
The hood sensor is installed on the top, rear of the chassis.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).

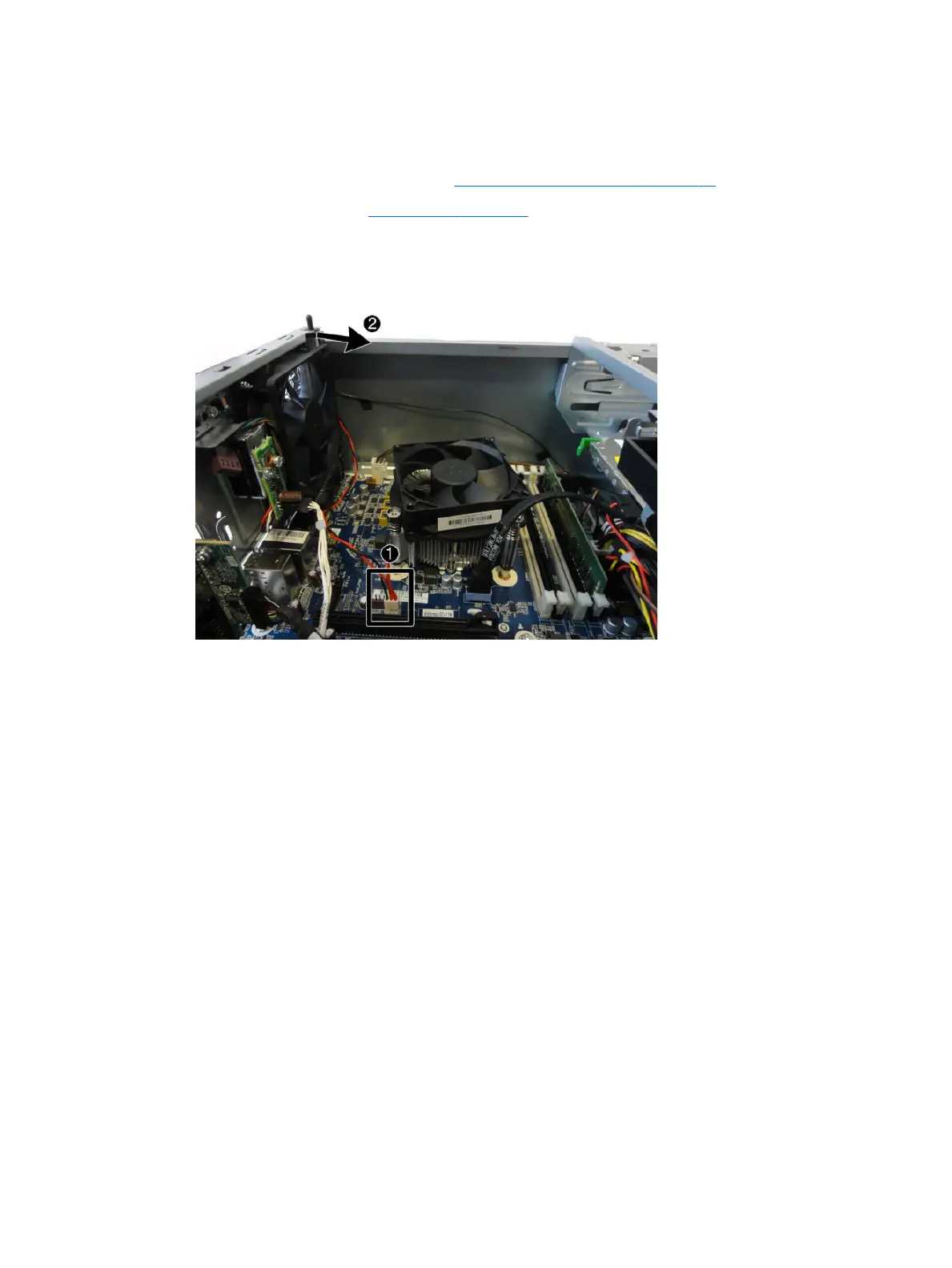

3. Disconnect the cable from the system board connector labeled HSENSE (1).
4. Slide the hood sensor out of the slot on the rear of the chassis (2). A tool such as a screwdriver may be
required to pry the hood sensor from the slot.
To install the hood sensor, reverse the removal procedure.
Hood sensor 63
