Speaker
The speaker is attached to the front of the chassis. Remove it from the inside of the chassis.
1. Prepare the computer for disassembly (Preparation for disassembly on page 19).
2. Remove the access panel (Access panel on page 20).
3. Remove the drive cage (Drive cage on page 28).

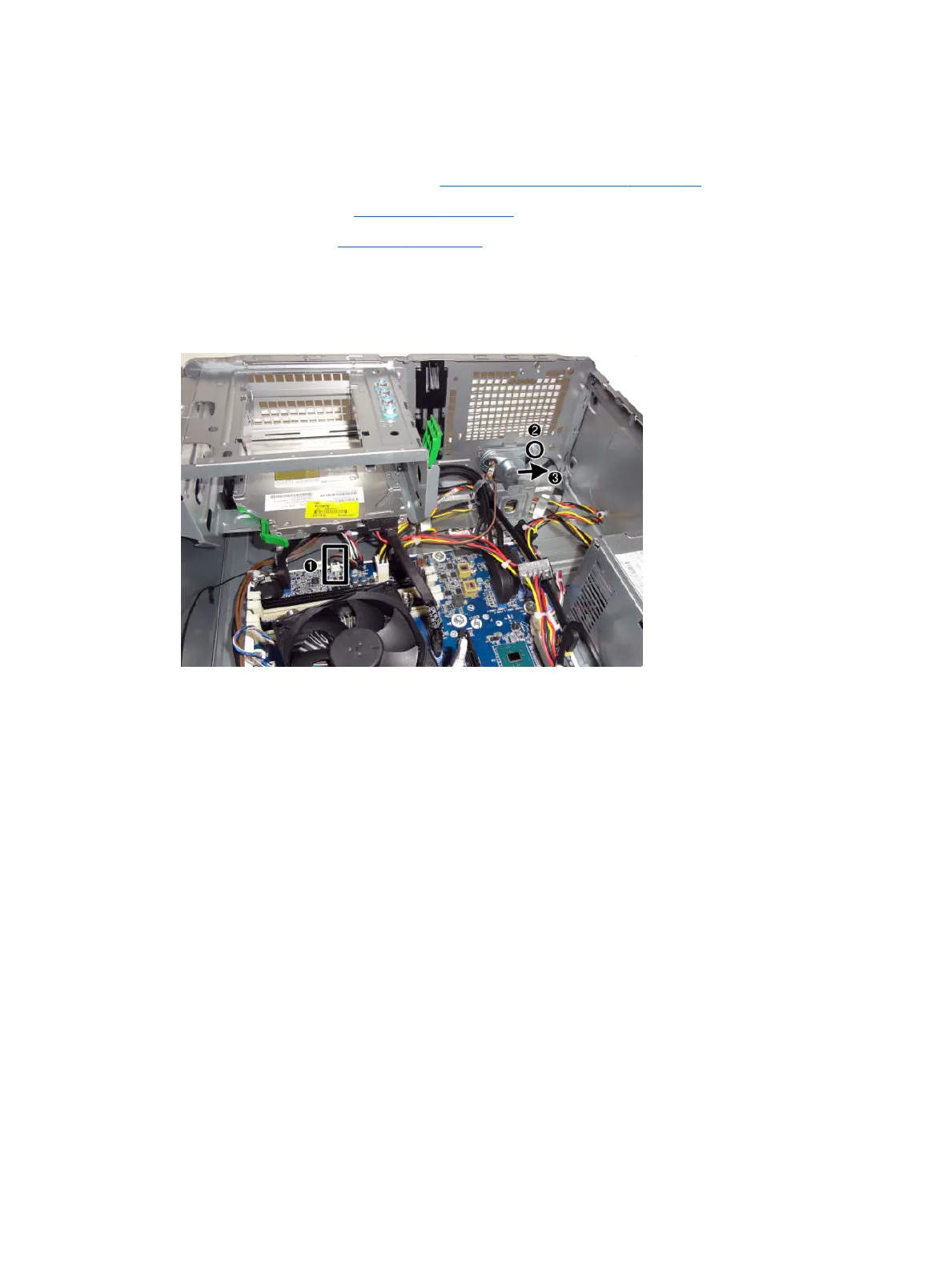

4. Disconnect the speaker cable from the system board connector labeled SPKR (1).
5. Remove the Torx T15 screw (2) that secures the speaker to the chassis.
6. Slide the speaker to the right, and the remove the speaker from the chassis (3).
To replace the speaker, reverse the removal procedures.
60 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis
